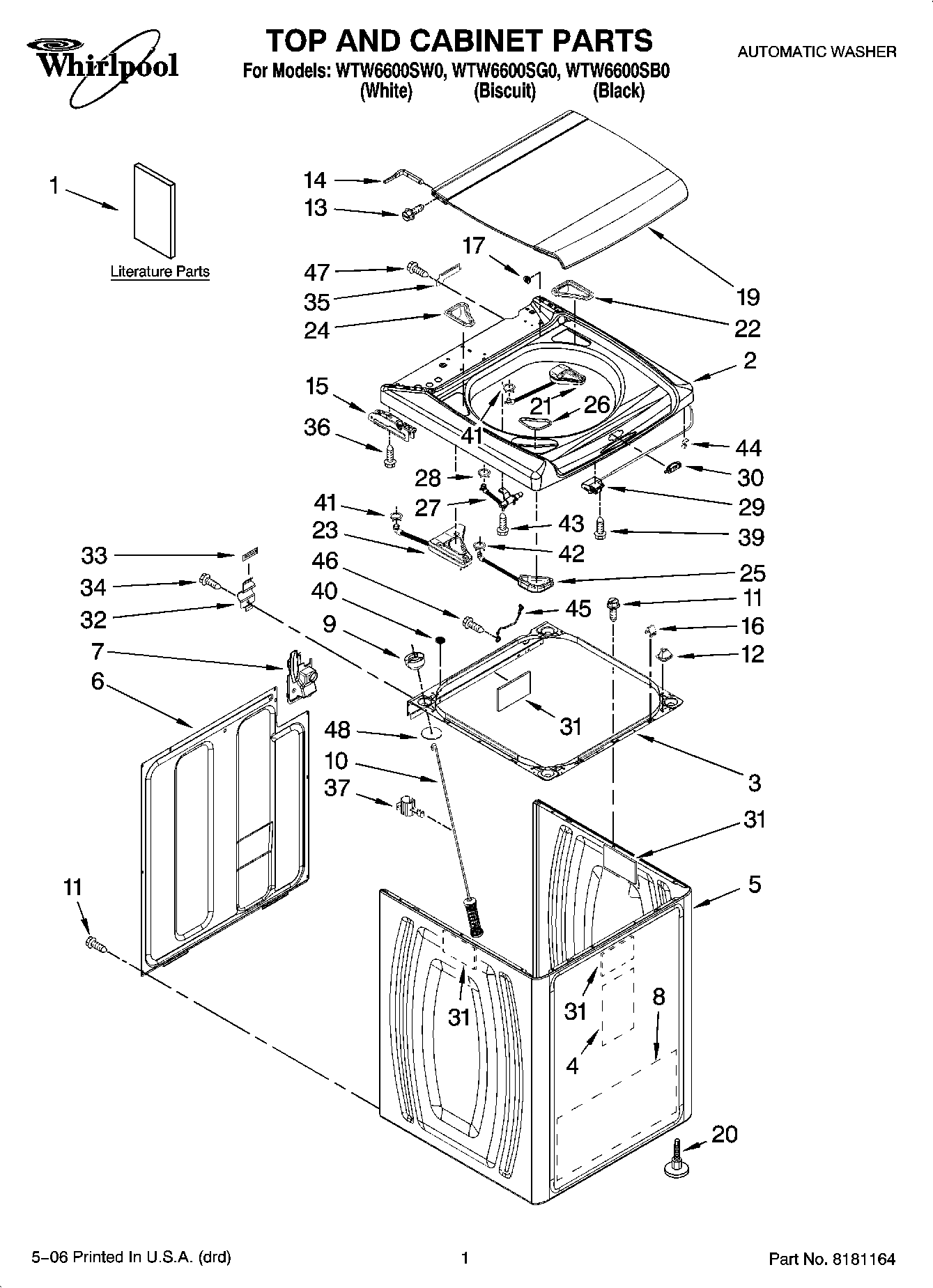

WTW6600SG0 01 – TOP AND CABINET PARTS

WTW6600SG0 01 – TOP AND CABINET PARTS

Written by

in

WTW6600SG0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Quick Start Guide
1Use & Care Guide
1Tech Sheet
1Energy Guide
1Installation Instructions (DVD)
1Wiring Diagram
2Top (White)
2Top (Biscuit)
2Top (Black)
3Frame Assembly, Cabinet Top (Includes Item 31)
4Sound Absorber, Cabinet
5Cabinet (Black)
5Cabinet (White)
5Cabinet (Biscuit)
6WP8566090 Whirlpool Rear Panel
7WPW10160572 Whirlpool Connector
8Sound Absorber, Cabinet
9W10198919 Whirlpool Kit
10W10820048 Whirlpool Washer Suspension Rod Kit
11WP489069 Whirlpool Compactor Screw
12Locator, Top (2)
13W11404293 Whirlpool Screw
14WP8563965 Whirlpool Hinge Assembly
14WP8572974 Whirlpool Hinge
15Hinge, Spring Assembly (Glass Lid) (Left)
15WP8563963 Whirlpool Hinge
16WP8563785 Whirlpool Lock
17Bearing, Lid Hinge (2)
19Lid, Glass Assembly (Brilliant White Aluminum)
19Lid, Glass Assembly (Black)
19Lid, Glass Assembly (Gold Dust)
20W10739673 Whirlpool Leveling Feet
21Dispenser, Fabric Softener (Biscuit)
21WPW10172146 Whirlpool Dispenser Assembly
22Bezel, Fabric Softener Dispenser (White)
22Bezel, Fabric Softener Dispenser (Biscuit)
22Bezel, Fabric Softener Dispenser (Elephant)
23WPW10161865 Whirlpool Dispenser
23Dispenser, Bleach (
23WPL W10052700
24WPL 8566211
24WPL 8580018
24WPL 8580019
25WPL 8564976
25WPL W10059170
25WPL W10059180
26WPL W10045210
26WPL W10045190
26WPL 8564979
27WPW10106990 Whirlpool Nozzle
29WPW10619844 Whirlpool Washer Latch
30Bezel, Lid Lock
30WPL W10052520
30WPL 8563939
31WP8564458 Whirlpool Absorber
32WP8564456 Whirlpool Hinge Assembly
3318849 Whirlpool Pad
34SCREW
358563941 Whirlpool Cover Assembly
36WP693995 Whirlpool Screw
37Bracket, Drain Hose
39WP8281136 Whirlpool Screw
408576476 Whirlpool Spacer
41WP596669 Whirlpool Hose Clamp
43W11700520 Whirlpool Screw
44WP90016 Whirlpool Clip
453184020 Whirlpool Oven Wire
46W10846509 Whirlpool Screw
47WP488729 Whirlpool Refrigerator Door Screw
48WP8577896 Whirlpool Washer
