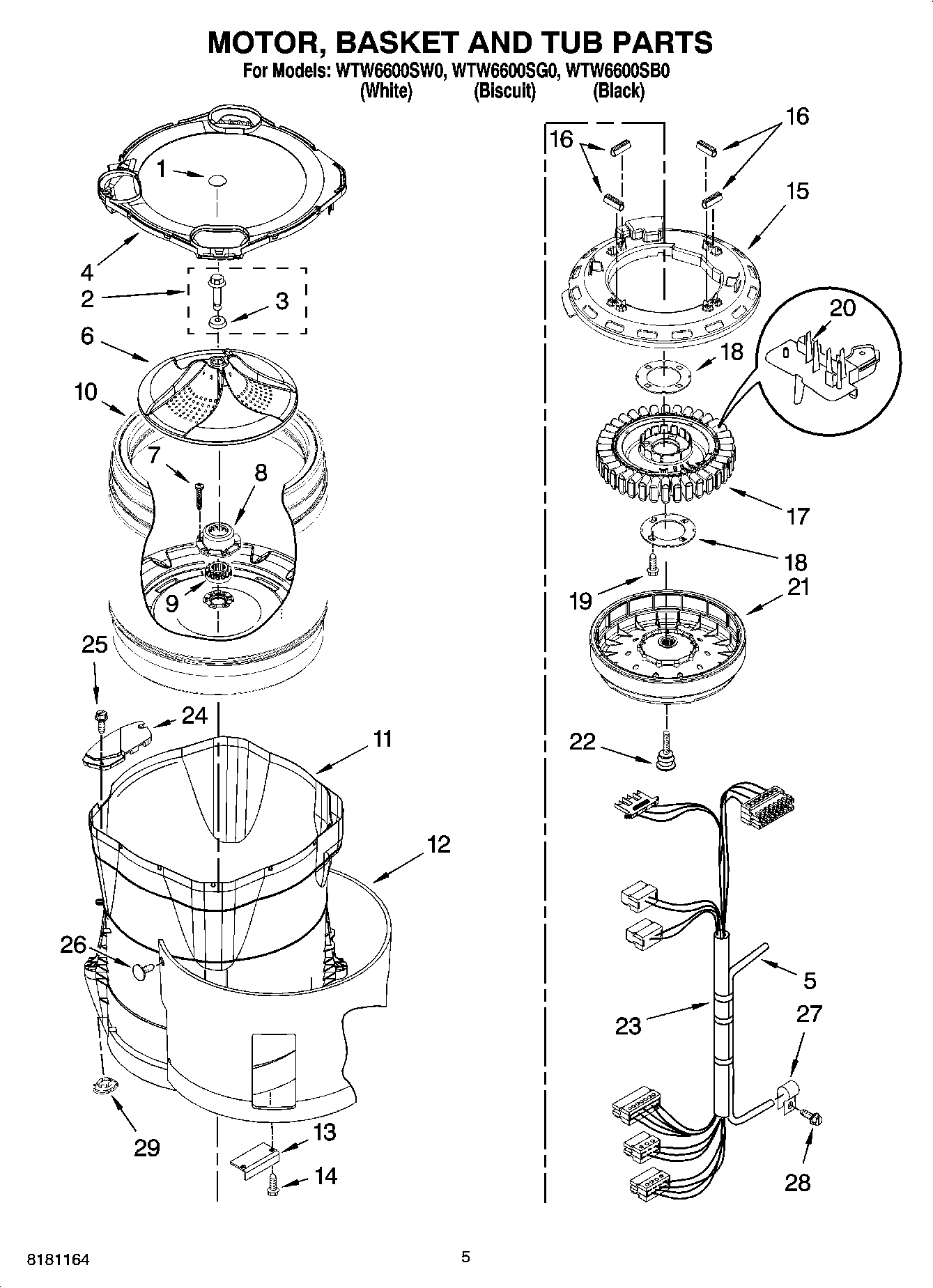

WTW6600SG0 03 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1WPW10106600 Whirlpool Cap
2Screw & Washer Assembly
3WPW10076260 Whirlpool Washer
4WPW10130807 Whirlpool Tub Ring
5WP353244 Whirlpool Hose
6Impeller (Washplate)
7WP8533953 Whirlpool Screw
8W10820039 Whirlpool Washing Machine Basket Drive Hub Kit
10Basket Assembly (Includes Items 7, 8, & 9)
11W10193886 Whirlpool Outer Tub
12Wrap, Tub
13Weight, Tub Counterbalance
14WPW10004910 Whirlpool Screw
15Shield, Drive Motor (Includes Item 16)
16Tube, Buffer (Set Of 4)
17WPW10419333 Whirlpool Stator
18WP8557836 Whirlpool Plate
19Screw, 1/4-20 x .968 (4)
20RPS Assembly
21280146 Whirlpool Rotor
22Bolt, Rotor Assembly Non-Serviceable (Supplied W/Rotor)
23Harness, Lower (Includes Item 5)
24Filter, Dual Pump Hood
25WP8533928 Whirlpool Refrigerator Screw
26Retainer, Push-In
27W10005430 Whirlpool Clamp
288533957 Whirlpool Screw
29WP8564017 Whirlpool Cup
