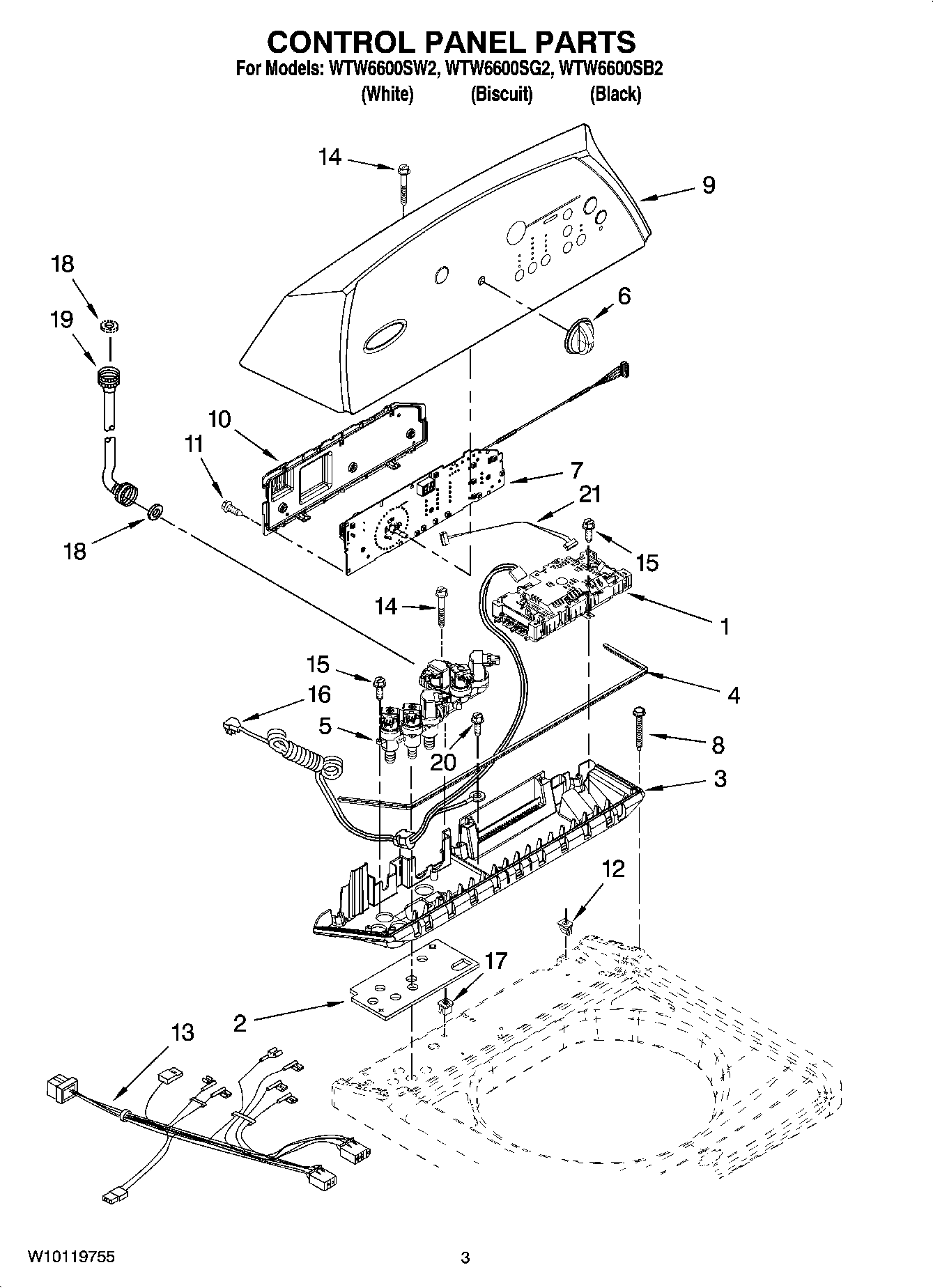

WTW6600SG2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Unit Assembly, Machine & Motor
2	W10130502 Whirlpool Gasket
3	Tray Assembly, Console (Includes Items 2 & 4) (Biscuit)
3	Tray Assembly, Console (Includes Items 2 & 4) (Black)
3	Tray Assembly, Console (Includes Items 2 & 4) (White)
4	Gasket, Console/Tray
6	WP8574957 Whirlpool Knob
7	User Interface
8	Screw, 6-20 x 1.2
9	Console (White)
9	Console (Biscuit)
9	Console (Black)
10	8564265 Whirlpool Cover
11	WP4449745 Whirlpool Screw
12	W10022060 Whirlpool Nut Assembly
13	W10372095 Whirlpool Valve
14	8565324 Whirlpool Screw
15	WP8281136 Whirlpool Screw
16	Cord Assembly, Power
17	98460 Whirlpool Nut
18	WP16123 Whirlpool Washer
19	WP89503 Whirlpool Washer Fill Hose
19	FILL HOSE 5' W/WASHER
20	WPW10141625 Whirlpool Refrigerator Screw Assembly
21	3407187 Whirlpool Wire Harness
