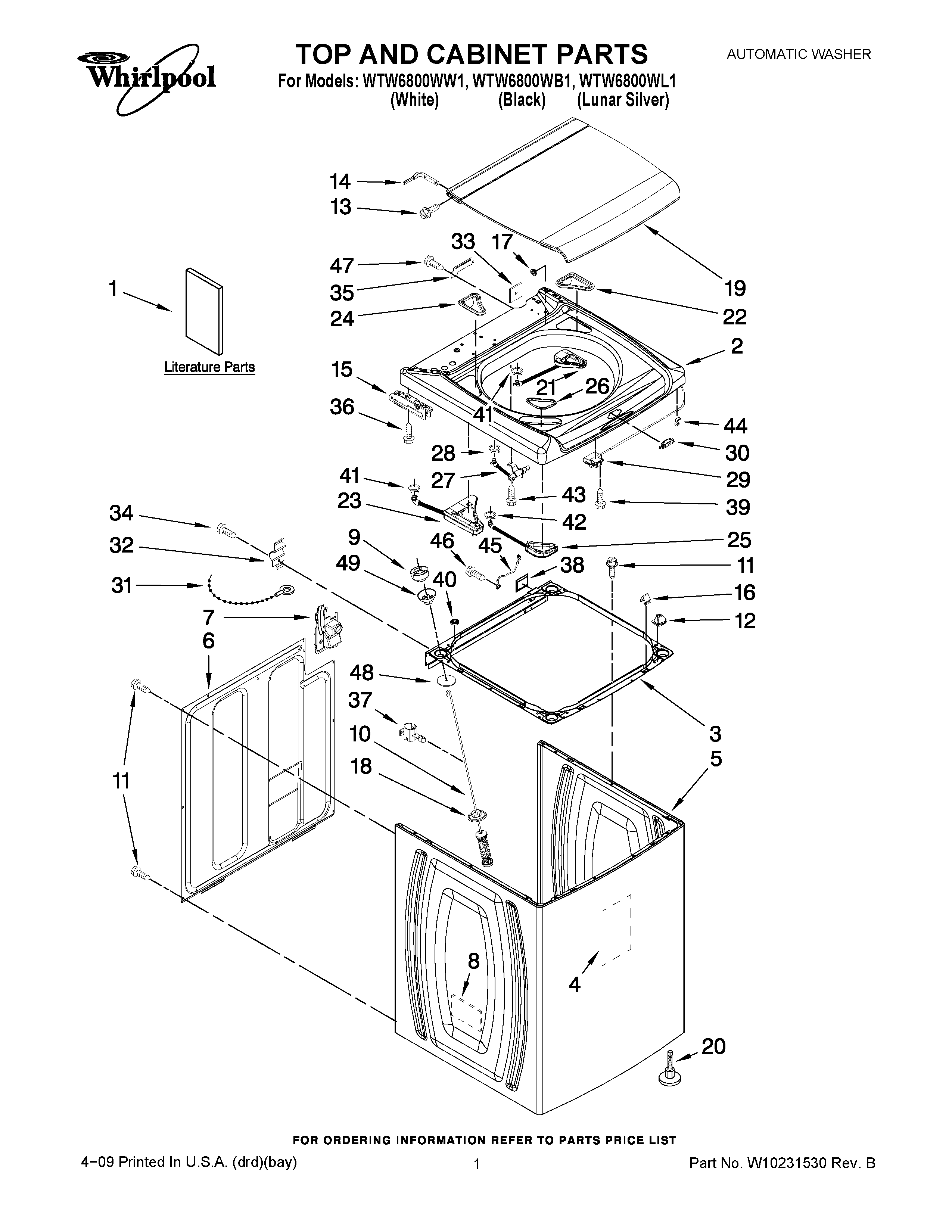

WTW6800WB1 01 – TOP AND CABINET PARTS

WTW6800WB1 01 – TOP AND CABINET PARTS

Written by

in

WTW6800WB1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Installation Instructions (Spanish)
1	PERFORMANCE SHEET (SPANISH)
1	PERFORMANCE SHEET (ENGLISH/FRENCH)
1	Installation Instructions (English/French)
1	Wiring Diagram
1	Tech Sheet
1	Energy Guide
1	Use & Care Guide (English/French)
1	Use & Care Guide (Spanish)
2	Top (White)
2	TOP (LUNAR SILVER)
2	Top (Black)
3	Frame Assembly, Cabinet Top (Includes Items 31 & 38)
4	Sound Absorber, Cabinet
5	Cabinet (White)
5	Cabinet (Black)
5	CABINET (LUNAR SILVER)
6	WP8566090 Whirlpool Rear Panel
7	WPW10160572 Whirlpool Connector
8	W11096159 Whirlpool Sound ABS Assembly
9	W10198919 Whirlpool Kit
10	W10247710 Whirlpool Suspension Rod
11	WP489069 Whirlpool Compactor Screw
12	LOCATOR, TOP
13	W11404293 Whirlpool Screw
14	WP8563965 Whirlpool Hinge Assembly
14	WP8572974 Whirlpool Hinge
15	Hinge, Spring Assembly (Glass Lid) (Left)
15	WP8563963 Whirlpool Hinge
16	WP8563785 Whirlpool Lock
17	Bearing, Lid Hinge (2)
18	WP8564017 Whirlpool Cup
19	Lid, Glass Assembly (Black)
19	Lid, Glass Assembly (Brilliant White Aluminum)
19	LID, GLASS ASSEMBLY (LUNAR SILVER)
20	FOOT ASSEMBLY, LEVELING
21	WPW10172146 Whirlpool Dispenser Assembly
22	Bezel, Fabric Softener Dispenser (White)
22	Bezel, Fabric Softener Dispenser (Elephant)
23	WPW10187307 Whirlpool Dispenser
24	WPL W10231475
24	WPL W10231474
25	WPL 8564976
25	WPL W10059180
26	WPL W10045210
26	WPL 8564979
27	WPW10106990 Whirlpool Nozzle
29	WPW10619844 Whirlpool Washer Latch
30	WPL W10158234
30	Bezel, Lid Lock
30	WPL W10052520
31	WPW10155270 Whirlpool Wire Tie
32	WP8564456 Whirlpool Hinge Assembly
33	W10161707 Whirlpool Seal
34	SCREW
35	8563941 Whirlpool Cover Assembly
36	WP693995 Whirlpool Screw
37	Bracket, Drain Hose
38	WPL 8578386
39	WP8281136 Whirlpool Screw
40	8576476 Whirlpool Spacer
41	WP596669 Whirlpool Hose Clamp
43	W11700520 Whirlpool Screw
44	WP90016 Whirlpool Clip
45	3184020 Whirlpool Oven Wire
46	W10846509 Whirlpool Screw
47	WP488729 Whirlpool Refrigerator Door Screw
48	WP8577896 Whirlpool Washer
