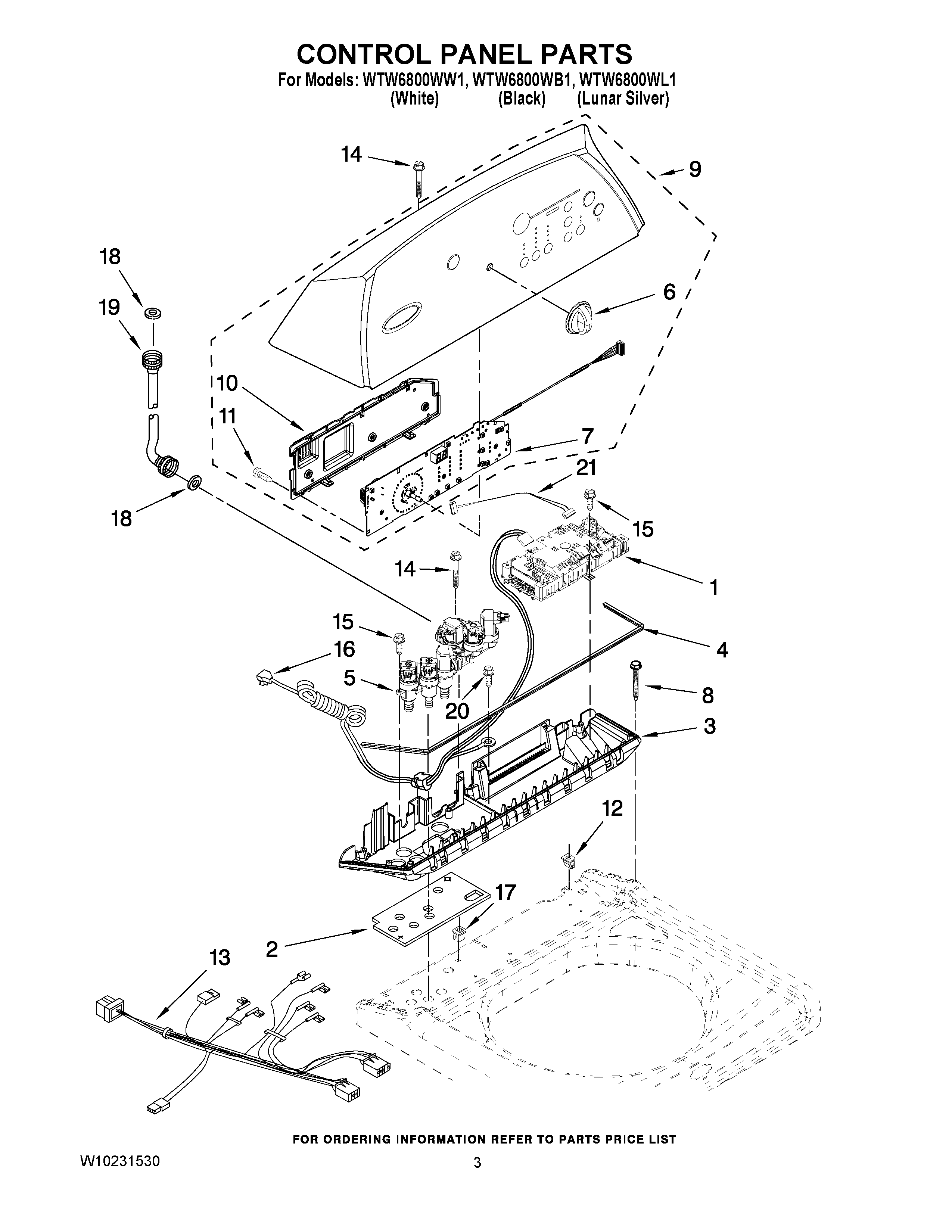

WTW6800WB1 02 – CONTROL PANEL PARTS

WTW6800WB1 02 – CONTROL PANEL PARTS

Written by

in

WTW6800WB1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Unit Assembly, Machine & Motor
2W10130502 Whirlpool Gasket
3Tray Assembly, Console (Includes Items 2 & 4) (White)
3Tray Assembly, Console (Includes Items 2 & 4) (Black)
3Tray Assembly, Console (Includes Items 2 & 4) (Silver)
4Gasket, Console/Tray
5W10364988 Whirlpool Valve Assembly
6KNOB, ASSEMBLY
6WP8574957 Whirlpool Knob
7User Interface
8Screw, 6-20 x 1.2
9Console (White)
9CONSOLE (LUNAR SILVER)
9Use & Care Guide (Trilingual)
108564265 Whirlpool Cover
11WP4449745 Whirlpool Screw
12W10022060 Whirlpool Nut Assembly
13Harness, Upper (Includes Item 21)
148565324 Whirlpool Screw
15WP8281136 Whirlpool Screw
16Cord Assembly, Power
1798460 Whirlpool Nut
18WP16123 Whirlpool Washer
19WP89503 Whirlpool Washer Fill Hose
19FILL HOSE 5' W/WASHER
20WP3351614 Whirlpool Screw
213407187 Whirlpool Wire Harness
