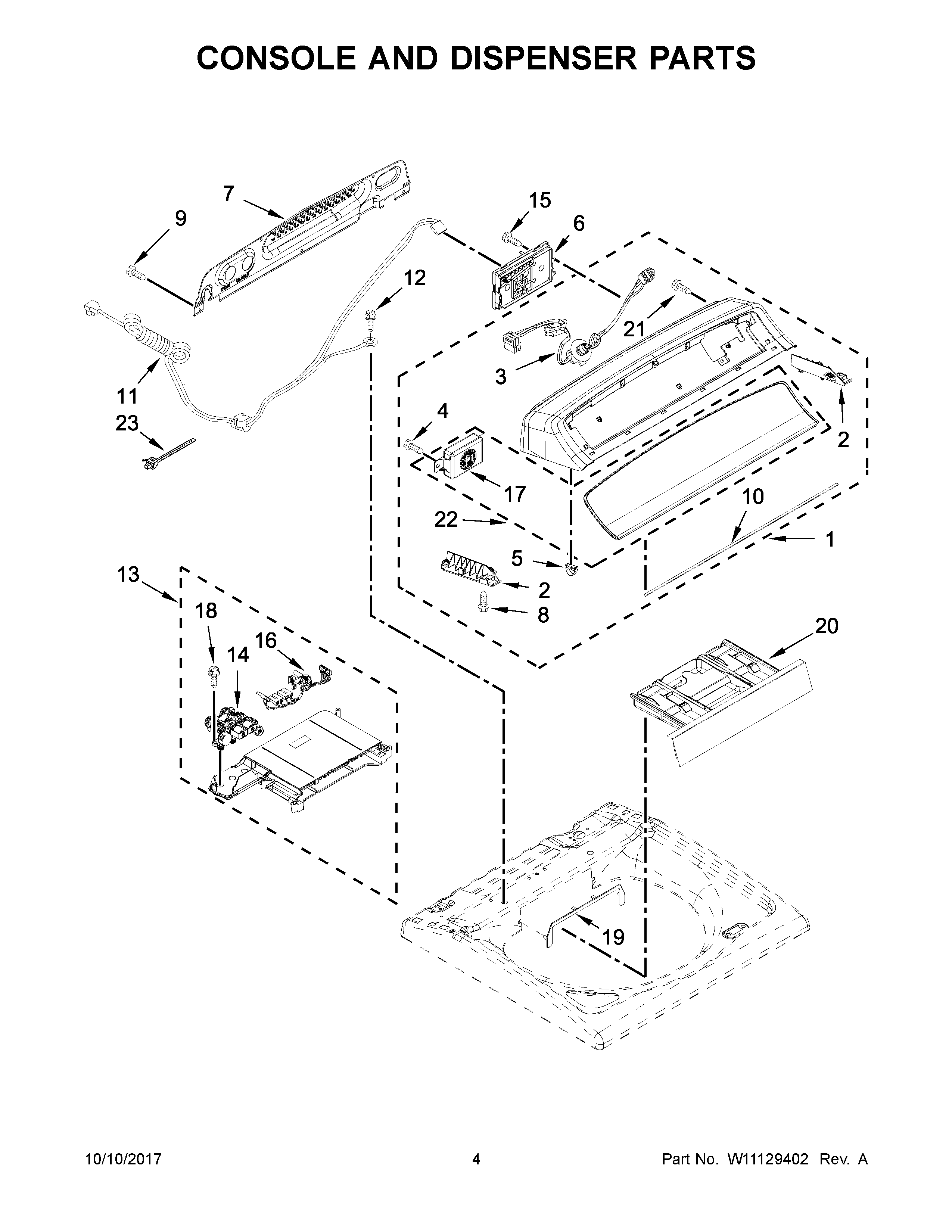

WTW7000DW3 03 – CONSOLE AND DISPENSER PARTS

WTW7000DW3 03 – CONSOLE AND DISPENSER PARTS

Written by

in

WTW7000DW3 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1W11106748 Whirlpool Console
2AW10631629 Whirlpool Bracket
2W10631630 Whirlpool Bracket Assembly
3W10915405 Whirlpool Wire Harness
4W10728156 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6W11723354-includeCORE Whirlpool Electronic Control+Core
7W10611544 Whirlpool Rear Panel
8W10853898 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10W10726624 Whirlpool Seal
11W10859955 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11173597 Whirlpool Housing
14W11220230 Whirlpool Washer Water Inlet Valve
15WP9740848 Whirlpool Dishwasher Screw
16W11458657 Whirlpool Wire Harness
17W11123146 Whirlpool Speaker
18WPW10109200 Whirlpool Screw
19W10601845 Whirlpool Bezel
20W10861667 Whirlpool Washer Dispenser Drawer
21W11311945 Whirlpool Refrigerator Screw
22W11089548 Whirlpool Control Panel
23WPW10298887 Whirlpool Wire Tie Assembly
