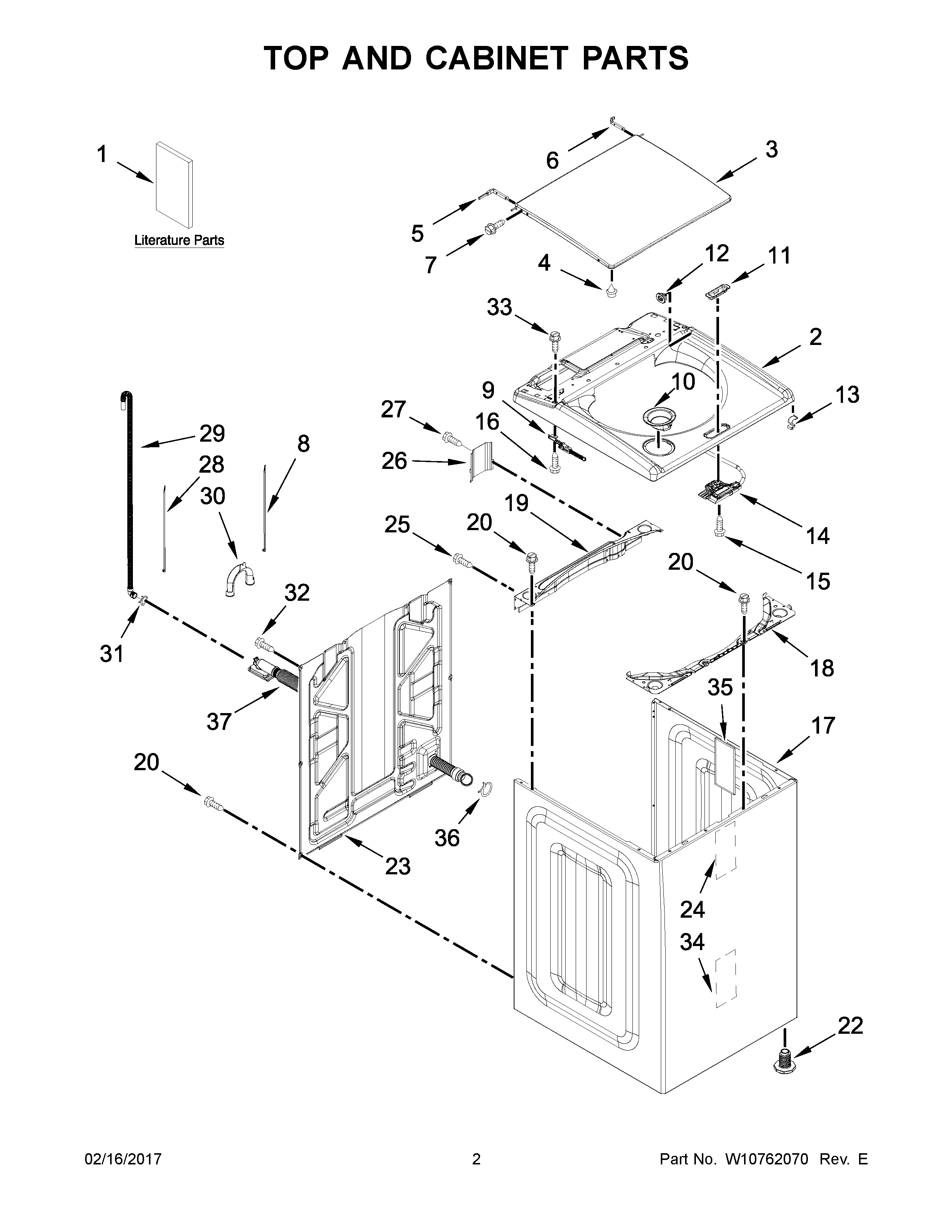

WTW7300DC0 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	TECH SHEET
1C	ENERGY GUIDE
1D	QUICK START GUIDE
1A	OWNERS MANUAL
1	INSTRUCTIONS, INSTALLATION
2A	W10817363 Whirlpool Top
2	W11097645 Whirlpool Top
3	W11101059 Whirlpool Door Assembly
4	W11398707 Whirlpool Grommet Assembly
5	WP8563965 Whirlpool Hinge Assembly
6	WP8572974 Whirlpool Hinge
7	W11404293 Whirlpool Screw
8	WPW10339879 Whirlpool Wire Tie
9A	W11023747 Whirlpool Hinge Assembly
9	W10861714 Whirlpool Hinge
10	W11234069 Whirlpool Dispenser
10A	W11234070 Whirlpool Dispenser Assembly
11	W11237157 Whirlpool Washer Lid Lock Bezel
12	W11168238 Whirlpool Bearing
13	WP90016 Whirlpool Clip
14	W10810403 Whirlpool Washer Lid Lock Assembly
14A	LATCH
15	WPW10273971 Whirlpool Screw
16	WP693995 Whirlpool Screw
17A	W10677271 Whirlpool Cabinet
17	W10676680 Whirlpool Cabinet
18A	W11661767 Whirlpool Brace
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21A	WPW10393264 Whirlpool Refrigerator Nameplate
21	W11178521 Whirlpool Dishwasher Nameplate
22	WPW10687506 Whirlpool Washer Leveling Leg
23	W11417171 Whirlpool Rear Panel
24	W11096159 Whirlpool Sound ABS Assembly
25	WPW10249633 Whirlpool Screw
26	W10676061 Whirlpool Cover Assembly
27	W10846509 Whirlpool Screw
29	W11244231 Whirlpool Hose
30	WPW10280024 Whirlpool Retainer
31	WP356138 Whirlpool Hose Clamp
32	WP9740848 Whirlpool Dishwasher Screw
33	WP313808 Whirlpool Screw
34	W11197416 Whirlpool Absorber
35	WP8564458 Whirlpool Absorber
36	WP285655 Whirlpool Hose Clamp
37	W11035296 Whirlpool Hose
