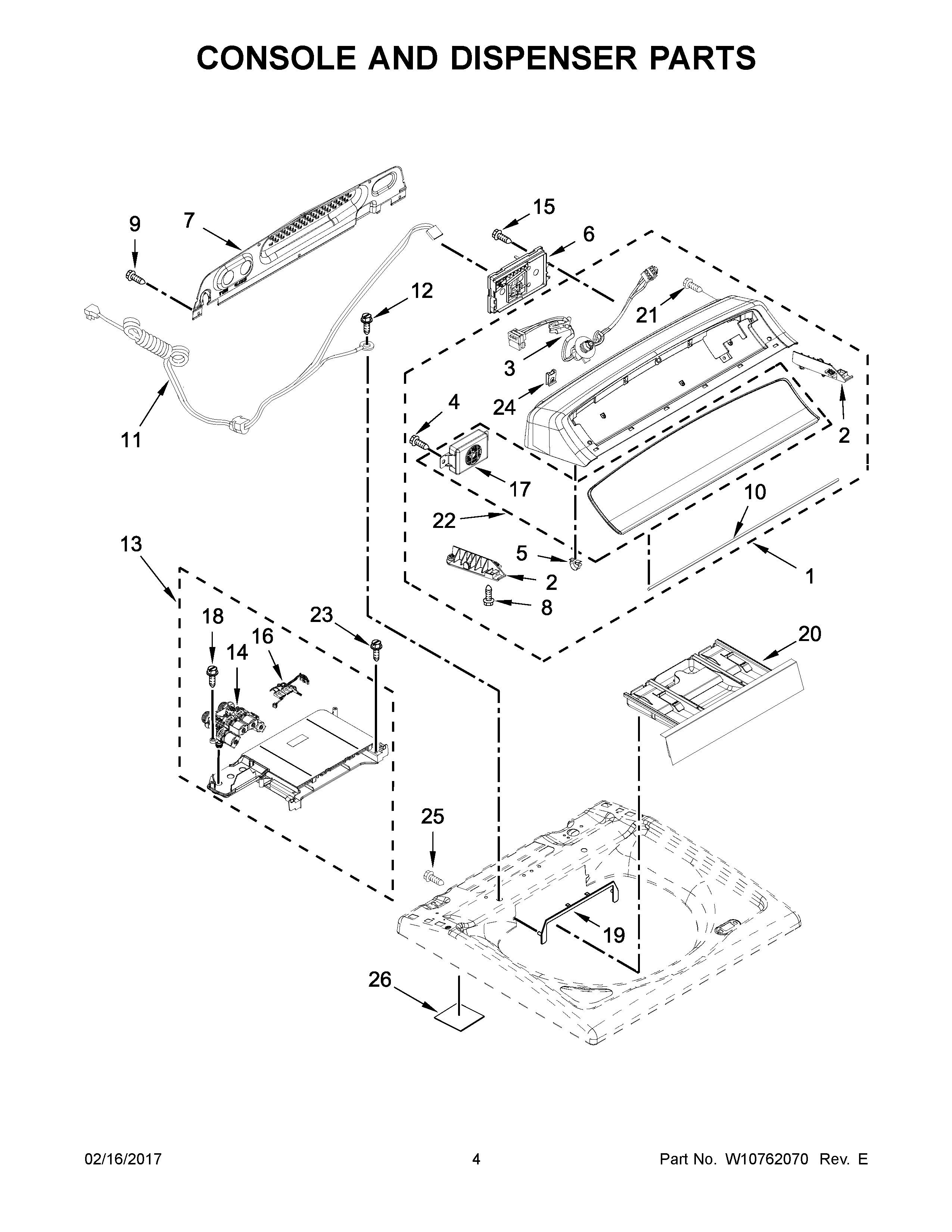

WTW7300DC0 03 – CONSOLE AND DISPENSER PARTS

WTW7300DC0 03 – CONSOLE AND DISPENSER PARTS

Written by

in

WTW7300DC0 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1AW10909732 Whirlpool Console
1W11102318 Whirlpool Console Assembly
2AW10631629 Whirlpool Bracket
2W10631630 Whirlpool Bracket Assembly
3W10915405 Whirlpool Wire Harness
4W10728156 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7W10611544 Whirlpool Rear Panel
8W10853898 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10W10726624 Whirlpool Seal
11W11096073 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11173597 Whirlpool Housing
14W11220230 Whirlpool Washer Water Inlet Valve
15WP9740848 Whirlpool Dishwasher Screw
16W11458657 Whirlpool Wire Harness
17W11123146 Whirlpool Speaker
18WPW10109200 Whirlpool Screw
19AW10601876 Whirlpool Bezel Assembly
19W10601845 Whirlpool Bezel
20W10861667 Whirlpool Washer Dispenser Drawer
20AW11129928 Whirlpool Drawer Assembly
21W11311945 Whirlpool Refrigerator Screw
22W11089547 Whirlpool Control Panel Assembly
23W11700520 Whirlpool Screw
24W11213336 Whirlpool Nut
25W10001240 Whirlpool Refrigerator Screw
