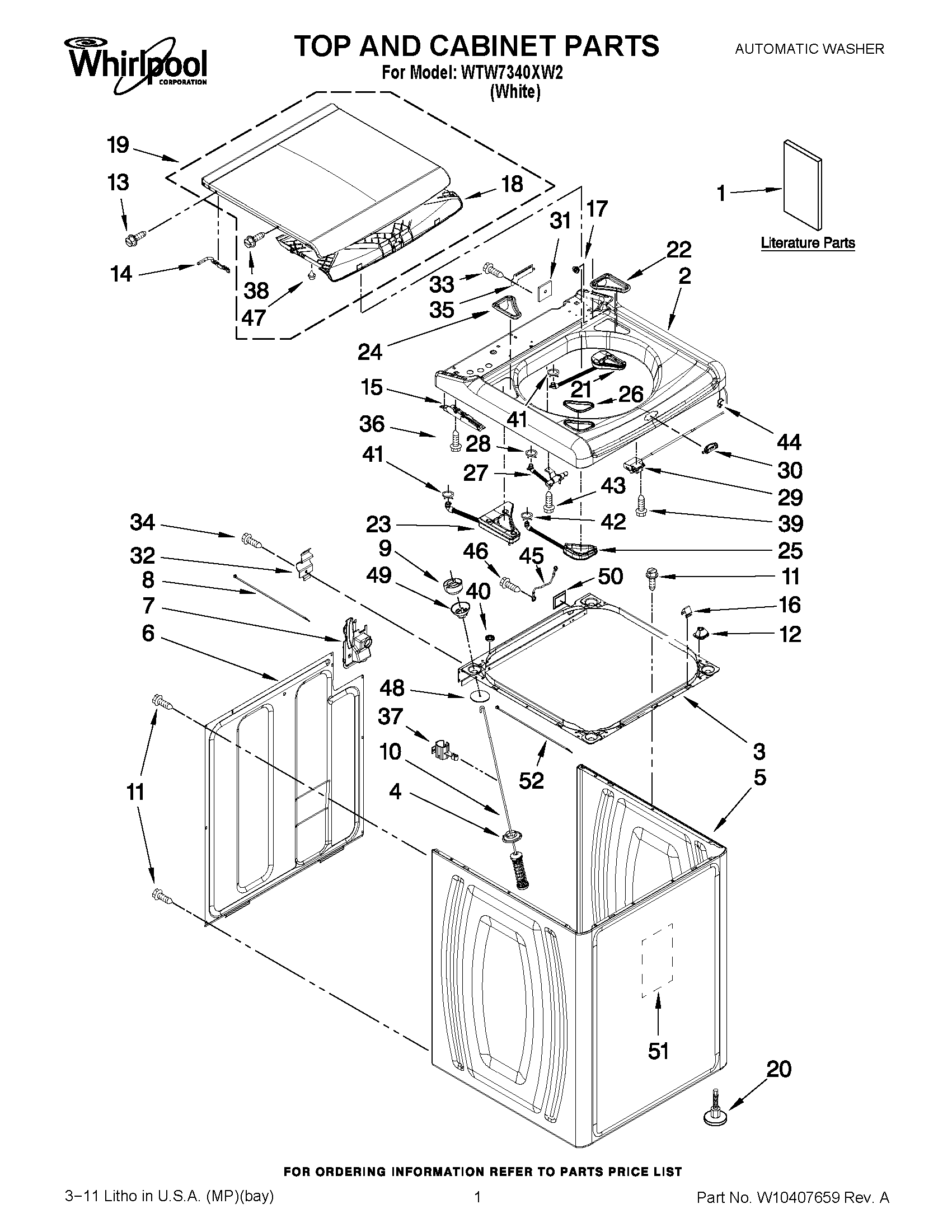

WTW7340XW2 01 – TOP AND CABINET PARTS

WTW7340XW2 01 – TOP AND CABINET PARTS

Written by

in

WTW7340XW2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS (USE & CARE GUIDE)
1INSTALLATION INSTRUCTIONS (TECH SHEET)
1Installation Instructions (Spanish)
1Installation Instructions (English/French)
1INSTALLATION INSTRUCTIONS (ENERGY GUIDE)
2WP3957177 Whirlpool Top Assembly
3FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 47)
4WP8564017 Whirlpool Cup
5W10434974 Whirlpool White Cabinet
6WP8566090 Whirlpool Rear Panel
7WPW10160572 Whirlpool Connector
8WPW10155270 Whirlpool Wire Tie
9W10198919 Whirlpool Kit
10W10247710 Whirlpool Suspension Rod
11WP489069 Whirlpool Compactor Screw
12LOCATOR, TOP
13SCREW
14WP8563964 Whirlpool Hinge
15HINGE, SPRING ASSEMBLY (RIGHT HAND)
15HINGE, SPRING ASSEMBLY (LEFT HAND)
16WP8563785 Whirlpool Lock
17WP8546627 Whirlpool Bearing
18WP8572012 Whirlpool Inner Lid
19WP8572026 Whirlpool Lid Assembly
20FOOT ASSEMBLY, LEVELING
21WPW10172146 Whirlpool Dispenser Assembly
22WPW10136371 Whirlpool Bezel
23WPW10187307 Whirlpool Dispenser
24WP8563876 Whirlpool Bezel
25WPW10172154 Whirlpool Dispenser Assembly
26WP8563877 Whirlpool Bezel
27WPW10106990 Whirlpool Nozzle
29WPW10619844 Whirlpool Washer Latch
30Bezel, Lid Lock
31W10161707 Whirlpool Seal
32WP8564456 Whirlpool Hinge Assembly
33WP488729 Whirlpool Refrigerator Door Screw
34SCREW
358563941 Whirlpool Cover Assembly
36WP693995 Whirlpool Screw
37Bracket, Drain Hose
38SCREW
39WP8281136 Whirlpool Screw
408576476 Whirlpool Spacer
41WP596669 Whirlpool Hose Clamp
43W11700520 Whirlpool Screw
44WP90016 Whirlpool Clip
453184020 Whirlpool Oven Wire
46W10846509 Whirlpool Screw
47W10076780 Whirlpool Bumper Assembly
48WP8577896 Whirlpool Washer
50WPL 8578386
51W11096159 Whirlpool Sound ABS Assembly
52WPW10339879 Whirlpool Wire Tie
