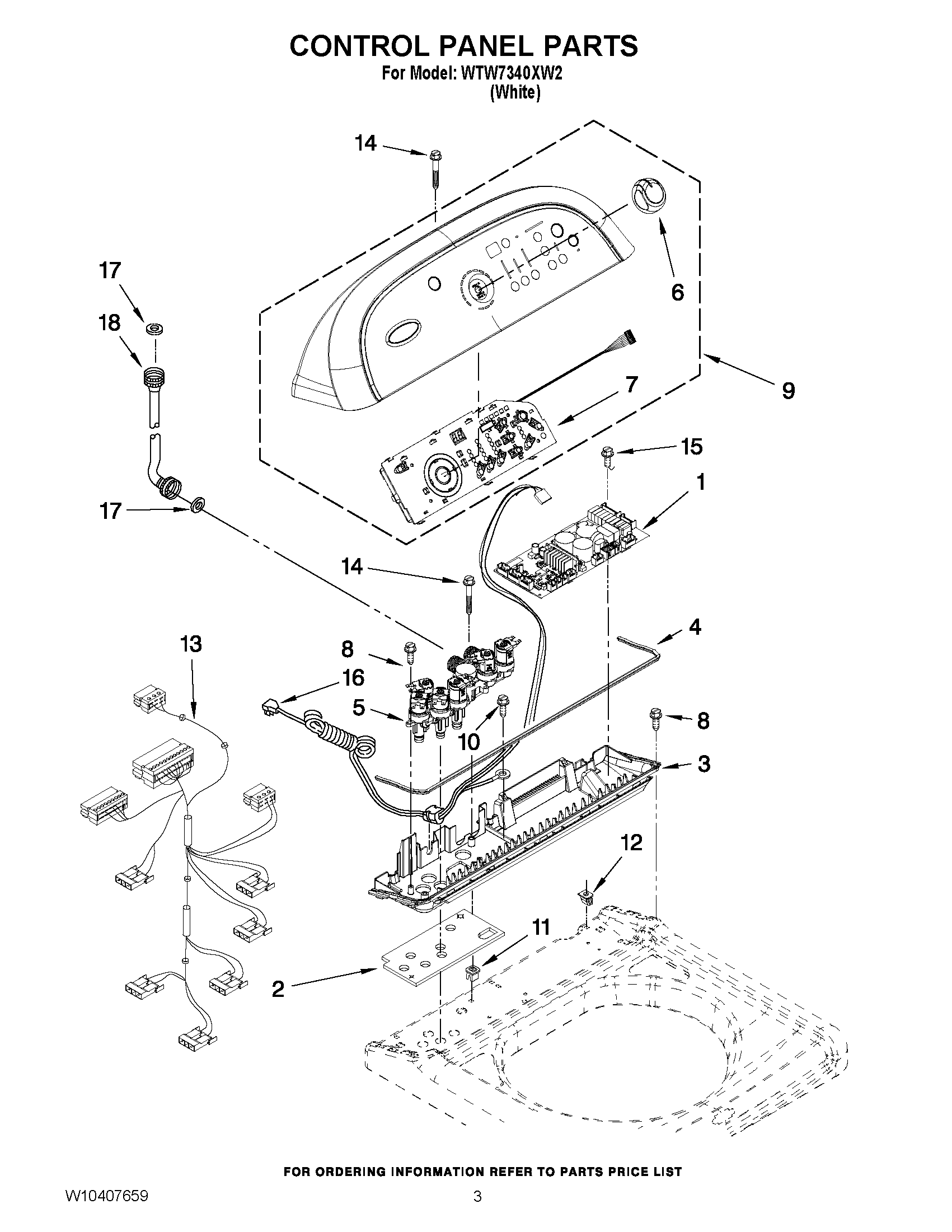

WTW7340XW2 02 – CONTROL PANEL PARTS

WTW7340XW2 02 – CONTROL PANEL PARTS

Written by

in

WTW7340XW2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONTROL UNIT ASSEMBLY, MACHINE & MOTOR
2W10130502 Whirlpool Gasket
3WP8578550 Whirlpool Tray
4GASKET, CONSOLE/TRAY
5W10853723 Whirlpool Water Valve
6WPW10211335 Whirlpool Knob
7USER INTERFACE
8WPW10052600 Whirlpool Screw Assembly
9CONSOLE
10WP3351614 Whirlpool Screw
1198460 Whirlpool Nut
12W10022060 Whirlpool Nut Assembly
13WPW10328039 Whirlpool Wire Harness
148565324 Whirlpool Screw
15WP8281136 Whirlpool Screw
16Cord Assembly, Power
17WP16123 Whirlpool Washer
18FILL HOSE 5' W/WASHER
18WP89503 Whirlpool Washer Fill Hose
