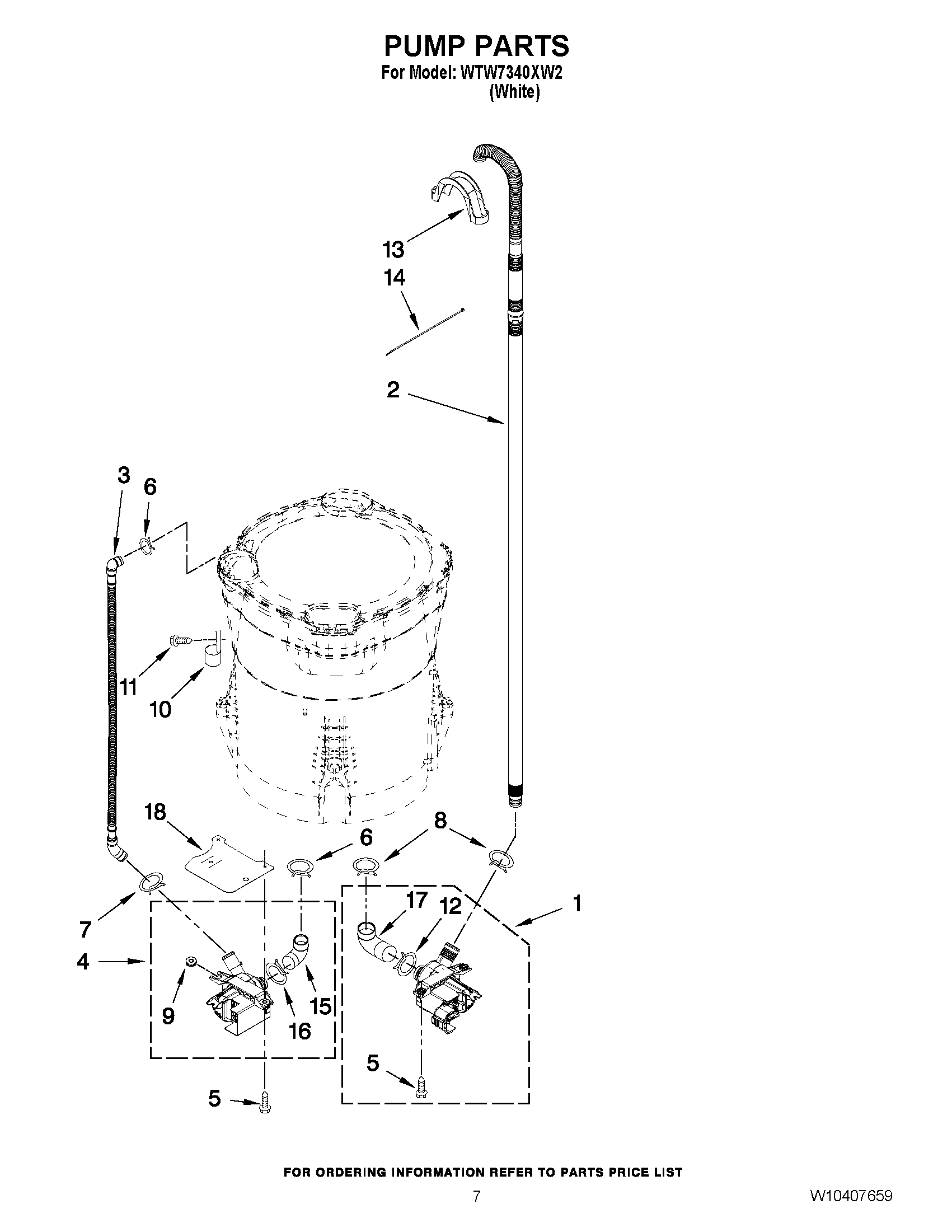

WTW7340XW2 04 – PUMP PARTS

Products

Position	Product
1	W10536347 Whirlpool Drain Pump and Motor Assembly
2	WPW10236686 Whirlpool Hose
3	WP8543774 Whirlpool Hose Assembly
4	Pump Assembly, Recirc
5	WPW10004910 Whirlpool Screw
6	WP285655 Whirlpool Hose Clamp
7	WP8269146 Whirlpool Dishwasher Clamp
9	GROMMET, PUMP MOUNTING
10	8534021 Whirlpool Clamp
11	WPW10109200 Whirlpool Screw
13	WP8576642 Whirlpool Retainer Clip
14	WPW10339879 Whirlpool Wire Tie
15	WP8182769 Whirlpool Hose Assembly
16	WP3367052 Whirlpool Hose Clamp
17	WP8182767 Whirlpool Drain Hose
18	8578572 Whirlpool Shield
