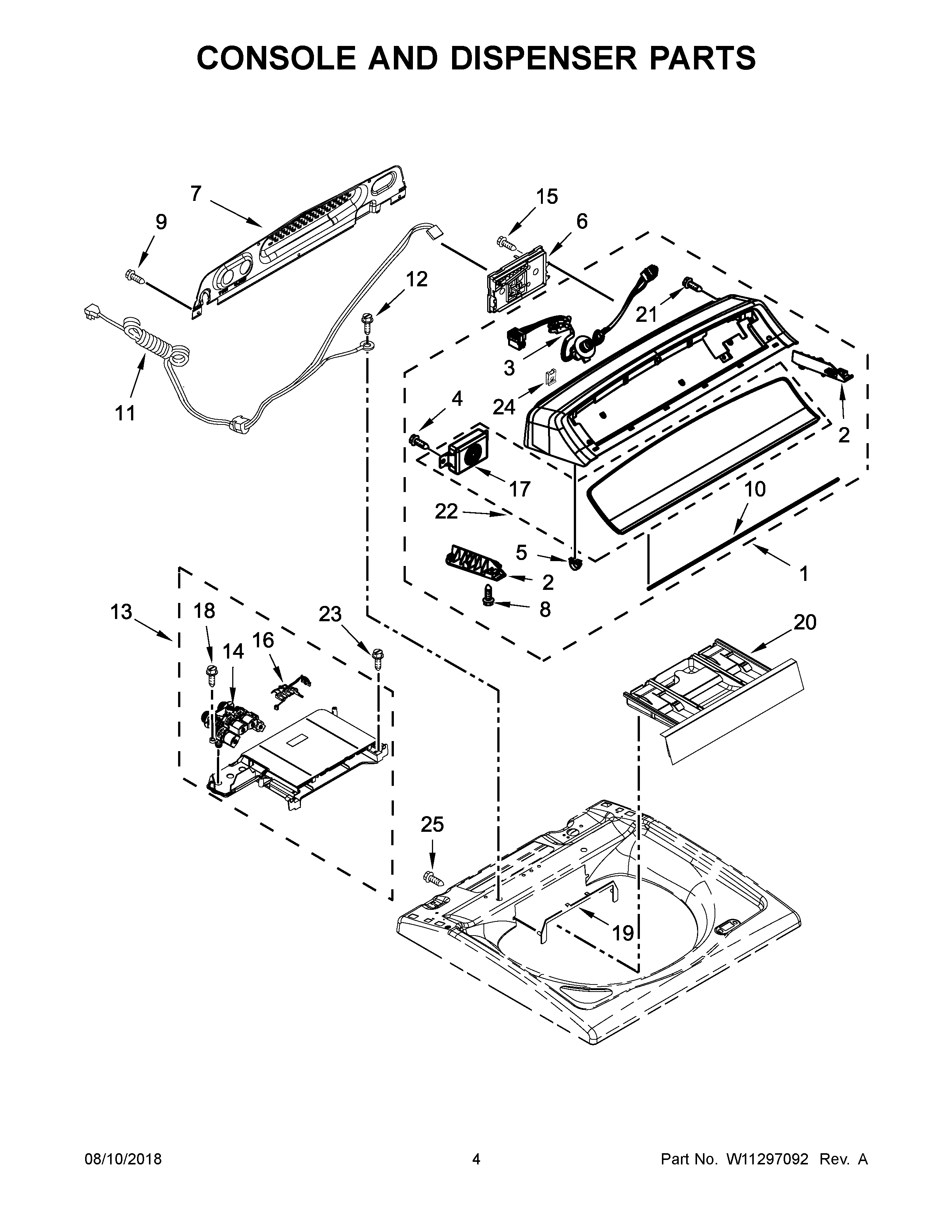

WTW7500GW2 03 – CONSOLE AND DISPENSER PARTS

WTW7500GW2 03 – CONSOLE AND DISPENSER PARTS

Written by

in

WTW7500GW2 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1AW11130341 Whirlpool Console
1W11130237 Whirlpool Console
2AW10631629 Whirlpool Bracket
2W10631630 Whirlpool Bracket Assembly
3W10915405 Whirlpool Wire Harness
4W11631670 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7W10611544 Whirlpool Rear Panel
8W10853898 Whirlpool Screw
9W11685943 Whirlpool Screw
10W10726624 Whirlpool Seal
11W10859955 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11130239 Whirlpool Housing
14W11165546 Whirlpool Washer Water Inlet Valve
15WP9740848 Whirlpool Dishwasher Screw
16W11193817 Whirlpool Wire Harness
17W11123146 Whirlpool Speaker
18WPW10109200 Whirlpool Screw
19AW11042239 Whirlpool Bezel
19W11042238 Whirlpool Bezel
20W11573771 Whirlpool Dispenser
20AW11130345 Whirlpool Dispenser
21W11311945 Whirlpool Refrigerator Screw
22W11714843-includeCORE Whirlpool W11714843 Core Console
22AW11130343 Whirlpool Overlay
23W11700520 Whirlpool Screw
24W11213336 Whirlpool Nut
25W10001240 Whirlpool Refrigerator Screw
