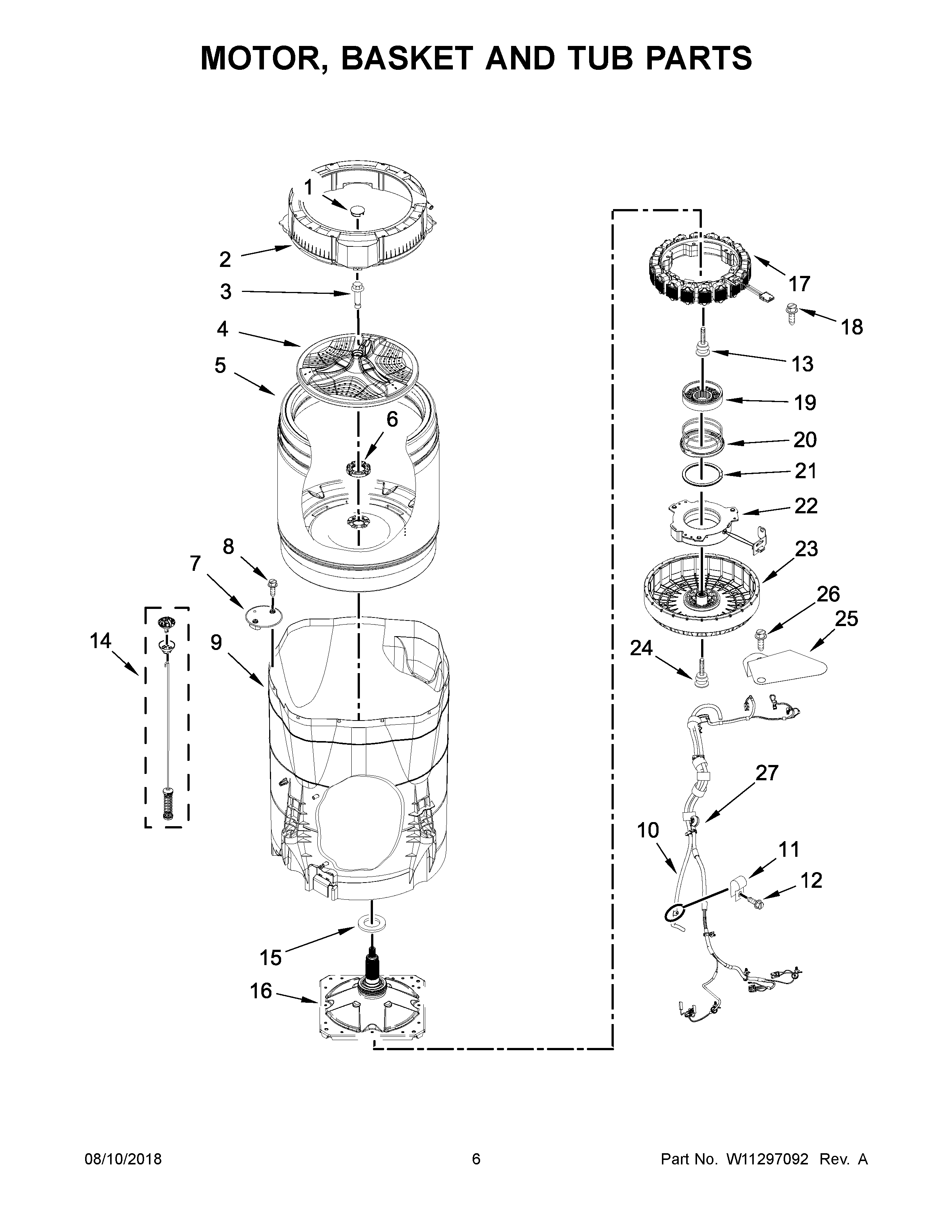

WTW7500GW2 04 – MOTOR, BASKET AND TUB PARTS

WTW7500GW2 04 – MOTOR, BASKET AND TUB PARTS

Written by

in

WTW7500GW2 04 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1W11050804 Whirlpool Cap
2W11190826 Whirlpool Tub Ring
3W10752187 Whirlpool Screw
4W10752283 Whirlpool Washer Washplate
5W10811957 Whirlpool Basket Assembly
6W10909670 Whirlpool Washer Spanner Nut
7W11568797 Whirlpool Filter
8WP8533928 Whirlpool Refrigerator Screw
9W11219115 Whirlpool Outer Tub
10WP353244 Whirlpool Hose
11W10005430 Whirlpool Clamp
12WPW10109200 Whirlpool Screw
13SCREW
14SUSPENSION KIT 4
15W11032711 Whirlpool Washer
16GEARCASE
17W10754158 Whirlpool Stator
18W11568617 Whirlpool Screw
20SLIDER
22CLUTCH
23ROTOR
24W10752189 Whirlpool Screw
25SHIELD
26WP90767 Whirlpool Screw
27W11130532 Whirlpool Wire Harness
