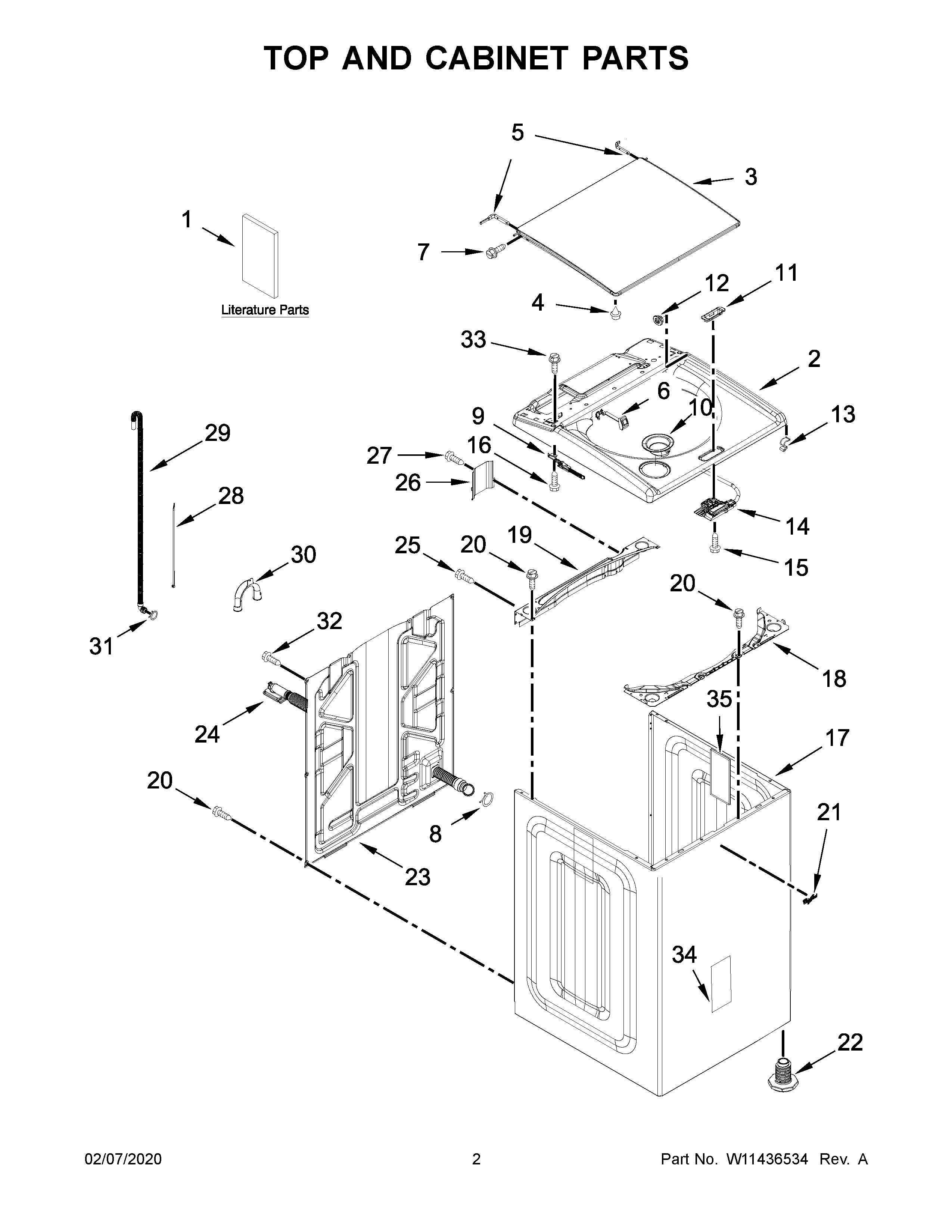

WTW7500GW3 02 – TOP AND CABINET PARTS

WTW7500GW3 02 – TOP AND CABINET PARTS

Written by

in

WTW7500GW3 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1BQUICK START GUIDE
1AOWNERS MANUAL
2AW10817363 Whirlpool Top
2W11097645 Whirlpool Top
3W11130236 Whirlpool Lid
4W11398707 Whirlpool Grommet Assembly
5WP8563965 Whirlpool Hinge Assembly
5AWP8572974 Whirlpool Hinge
6AW11174420 Whirlpool Switch Assembly
6W11174419 Whirlpool Switch
7W11404293 Whirlpool Screw
8WP285655 Whirlpool Hose Clamp
9AW11023747 Whirlpool Hinge Assembly
9W10861714 Whirlpool Hinge
10AW11234070 Whirlpool Dispenser Assembly
10W11234069 Whirlpool Dispenser
11W11237157 Whirlpool Washer Lid Lock Bezel
11AW11237158 Whirlpool Bezel Trim
12AW11579387 Whirlpool Bearing
12W11168238 Whirlpool Bearing
13WP90016 Whirlpool Clip
14W10810403 Whirlpool Washer Lid Lock Assembly
14ALATCH
15WPW10273971 Whirlpool Screw
16WP693995 Whirlpool Screw
17W10676680 Whirlpool Cabinet
17AW10677271 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
18AW11661767 Whirlpool Brace
19W11712680 Whirlpool Commercial Part Brace
20W11685943 Whirlpool Screw
21W11178521 Whirlpool Dishwasher Nameplate
21AWPW10393264 Whirlpool Refrigerator Nameplate
22WPW10687506 Whirlpool Washer Leveling Leg
23W11417171 Whirlpool Rear Panel
24W11035296 Whirlpool Hose
25WPW10249633 Whirlpool Screw
26W10676061 Whirlpool Cover Assembly
27W10846509 Whirlpool Screw
28WPW10339879 Whirlpool Wire Tie
29W11244231 Whirlpool Hose
30WPW10280024 Whirlpool Retainer
31WP356138 Whirlpool Hose Clamp
32WP9740848 Whirlpool Dishwasher Screw
33WP313808 Whirlpool Screw
34W11197416 Whirlpool Absorber
35WP8564458 Whirlpool Absorber
