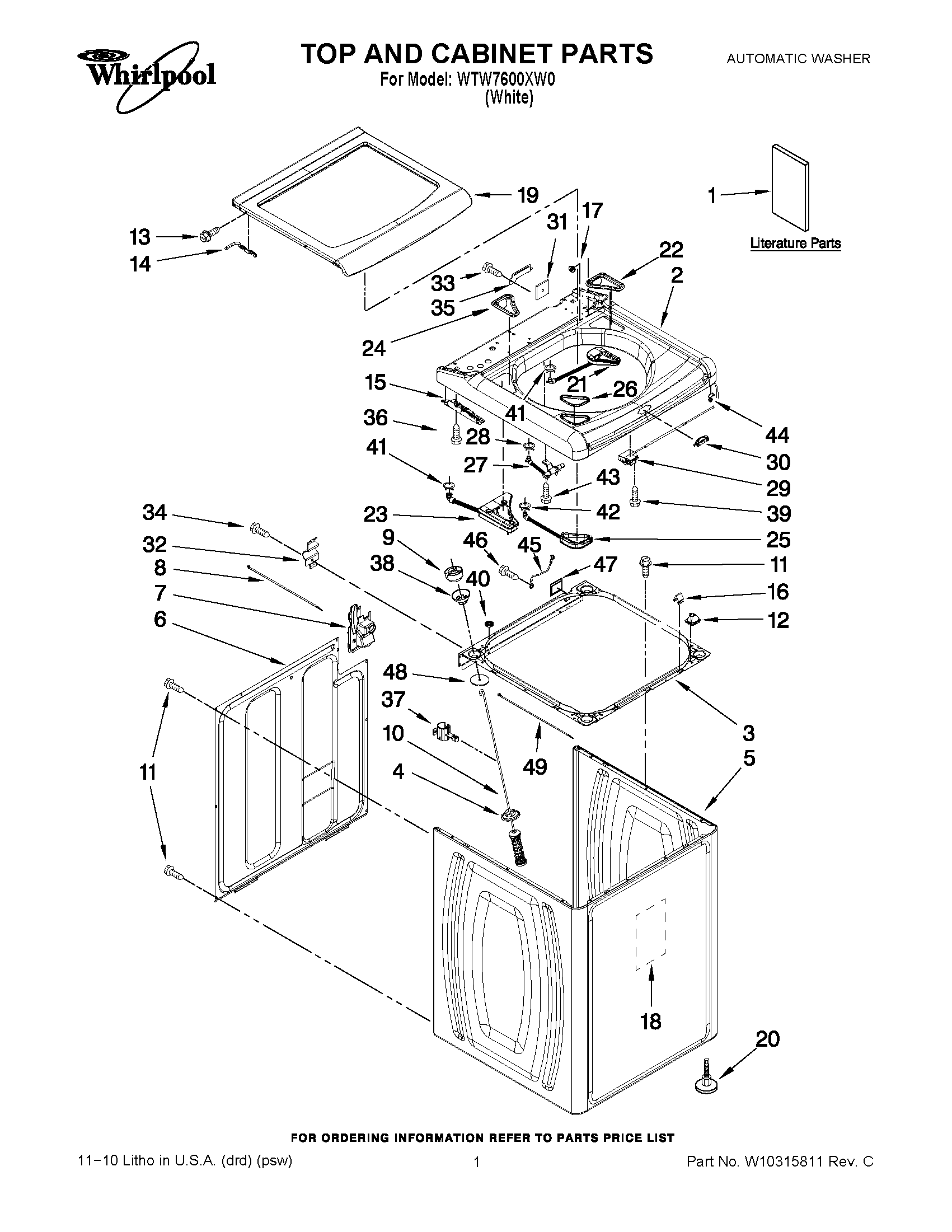

WTW7600XW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	WIRING DIAGRAM
1	USE & CARE GUIDE
1	ENERGY GUIDE
1	Installation Instructions (English/French)
1	Installation Instructions (Spanish)
2	WP3957177 Whirlpool Top Assembly
3	FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 47)
4	WP8564017 Whirlpool Cup
5	W10434974 Whirlpool White Cabinet
6	WP8566090 Whirlpool Rear Panel
7	WPW10160572 Whirlpool Connector
8	WPW10155270 Whirlpool Wire Tie
9	W10198919 Whirlpool Kit
10	W10247710 Whirlpool Suspension Rod
11	WP489069 Whirlpool Compactor Screw
12	LOCATOR, TOP
13	SCREW
14	WP8563964 Whirlpool Hinge
15	WPW10309358 Whirlpool Hinge Assembly
15	WPW10309357 Whirlpool Hinge
16	WP8563785 Whirlpool Lock
17	WP8546627 Whirlpool Bearing
18	W11096159 Whirlpool Sound ABS Assembly
19	WPW10110852 Whirlpool Lid
20	FOOT ASSEMBLY, LEVELING
21	DISPENSER, FABRIC SOFTENER
22	WPW10136371 Whirlpool Bezel
23	DISPENSER, STAIN REMOVER
24	WP8563876 Whirlpool Bezel
25	DISPENSER, DETERGENT
26	WP8563877 Whirlpool Bezel
27	W10304118 Whirlpool Nozzle
29	WPW10619844 Whirlpool Washer Latch
30	Bezel, Lid Lock
31	W10161707 Whirlpool Seal
32	WP8564456 Whirlpool Hinge Assembly
33	WP488729 Whirlpool Refrigerator Door Screw
34	SCREW
35	8563941 Whirlpool Cover Assembly
36	WP693995 Whirlpool Screw
37	Bracket, Drain Hose
39	WP8281136 Whirlpool Screw
40	8576476 Whirlpool Spacer
42	WP596669 Whirlpool Hose Clamp
43	W11700520 Whirlpool Screw
44	WP90016 Whirlpool Clip
45	3184020 Whirlpool Oven Wire
46	W10846509 Whirlpool Screw
47	WPL 8578386
48	WP8577896 Whirlpool Washer
49	WPW10339879 Whirlpool Wire Tie
