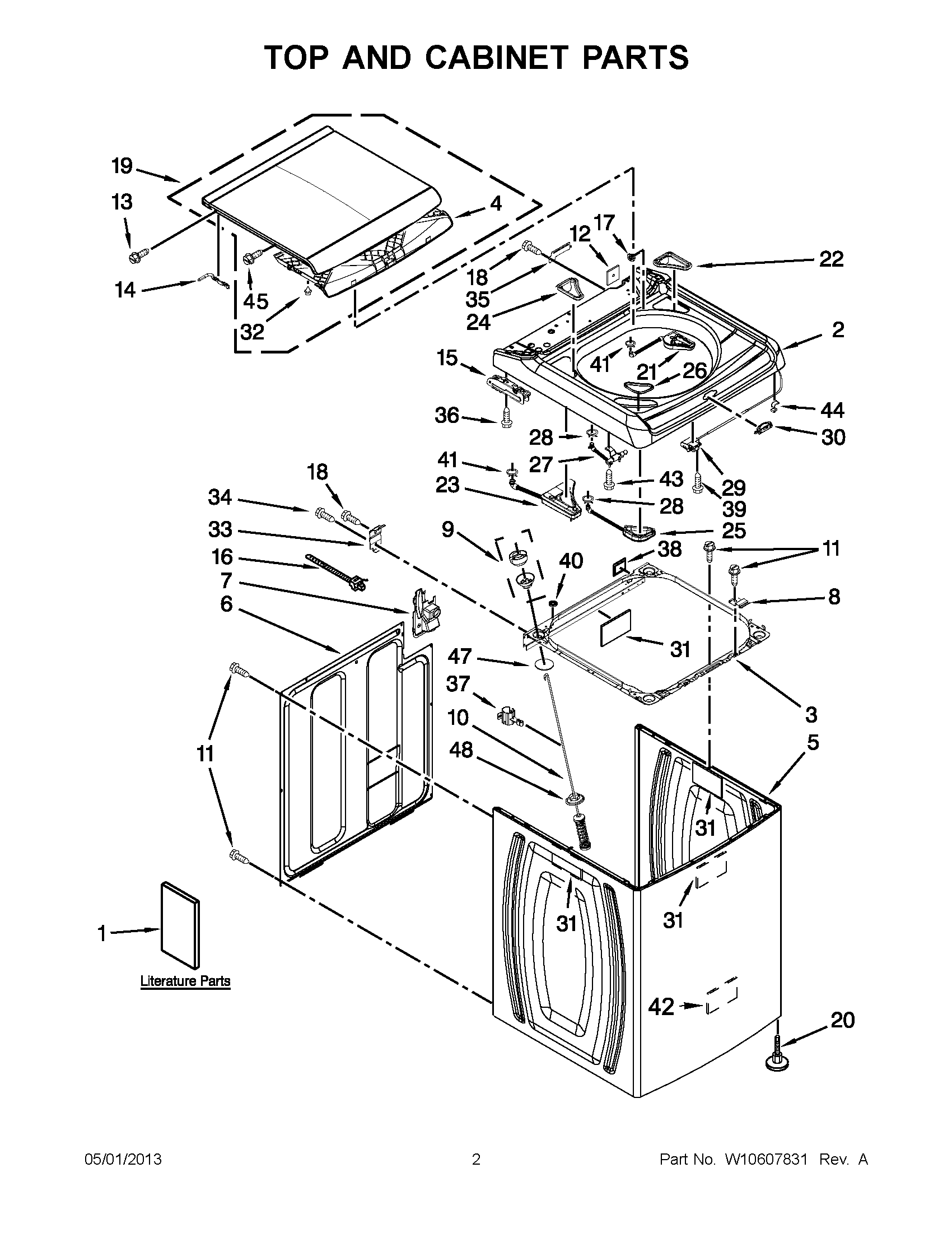

WTW8000BW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	OWNERS MANUAL
1	ENERGY GUIDE
1	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
2	TOP (WHITE)
3	FRAME ASSEMBLY, CABINET TOP
4	WP8572012 Whirlpool Inner Lid
5	W10434974 Whirlpool White Cabinet
6	WP8566090 Whirlpool Rear Panel
7	WPW10160572 Whirlpool Connector
8	WPW10248088 Whirlpool Lock
9	BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
10	W10247710 Whirlpool Suspension Rod
11	WP489069 Whirlpool Compactor Screw
12	W10161707 Whirlpool Seal
13	SCREW
14	WP8563964 Whirlpool Hinge
15	HINGE, SPRING ASSEMBLY (LEFT HAND)
15	HINGE, SPRING ASSEMBLY (RIGHT HAND)
16	WPW10155270 Whirlpool Wire Tie
17	WPW10119519 Whirlpool Bearing
18	WP488729 Whirlpool Refrigerator Door Screw
19	WP8572026 Whirlpool Lid Assembly
20	FOOT ASSEMBLY, LEVELING
21	WPW10553370 Whirlpool Dispenser Assembly
22	WPW10136371 Whirlpool Bezel
23	WPW10554110 Whirlpool Dispenser Assembly
24	WP8563876 Whirlpool Bezel
25	WPW10552116 Whirlpool Dispenser
26	WP8563877 Whirlpool Bezel
27	WPW10552206 Whirlpool Nozzle
29	WPW10619844 Whirlpool Washer Latch
30	Bezel, Lid Lock
31	WP8564458 Whirlpool Absorber
32	W10076780 Whirlpool Bumper Assembly
33	W10432012 Whirlpool Hinge
34	SCREW
35	8563941 Whirlpool Cover Assembly
36	WP693995 Whirlpool Screw
37	Bracket, Drain Hose
38	WPL 8578386
39	W11501418 Whirlpool Refrigerator Screw
40	8576476 Whirlpool Spacer
41	WP596669 Whirlpool Hose Clamp
42	W11096159 Whirlpool Sound ABS Assembly
43	W11700520 Whirlpool Screw
44	WP90016 Whirlpool Clip
45	SCREW
47	WP8577896 Whirlpool Washer
48	WP8564017 Whirlpool Cup
