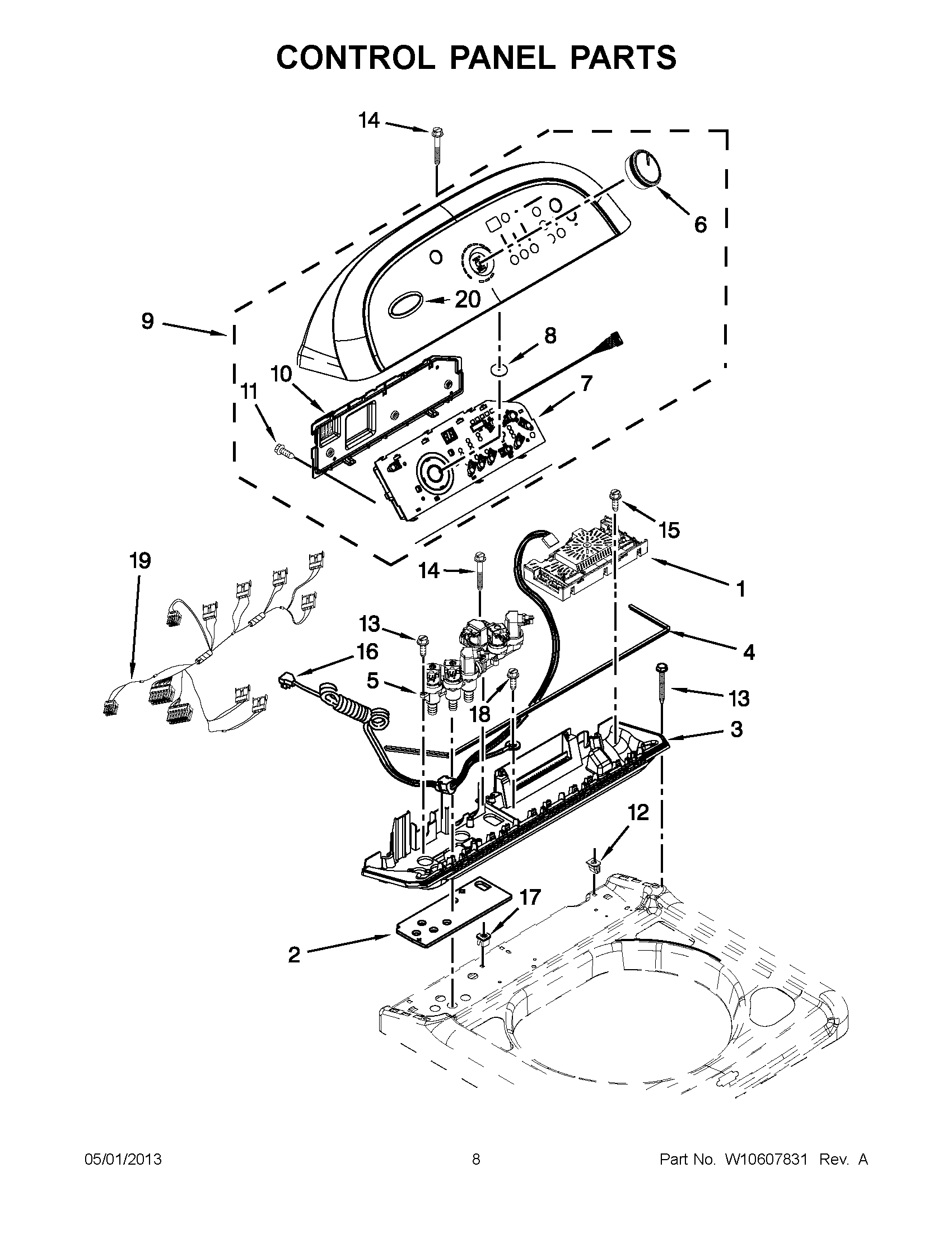

WTW8000BW0 04 – CONTROL PANEL PARTS

WTW8000BW0 04 – CONTROL PANEL PARTS

Written by

in

WTW8000BW0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1CONTROL UNIT ASSEMBLY, MACHINE & MOTOR
2W10130502 Whirlpool Gasket
3WP8578550 Whirlpool Tray
4GASKET, CONSOLE/TRAY
5W10853723 Whirlpool Water Valve
6WPW10576632 Whirlpool Dishwasher Knob
7WPW10536854-includeCORE Whirlpool WPW10536854 Refrigerator Electronic Control Board + Core
8SEAL, USER INTERFACE
9CONSOLE
108564265 Whirlpool Cover
11WP4449745 Whirlpool Screw
12W10022060 Whirlpool Nut Assembly
13WPW10052600 Whirlpool Screw Assembly
148565324 Whirlpool Screw
15WP8281136 Whirlpool Screw
16WPW10547372 Whirlpool Power Cord
1798460 Whirlpool Nut
18WP3351614 Whirlpool Screw
19WPW10404419 Whirlpool Wire Harness
20WPW10393264 Whirlpool Refrigerator Nameplate
