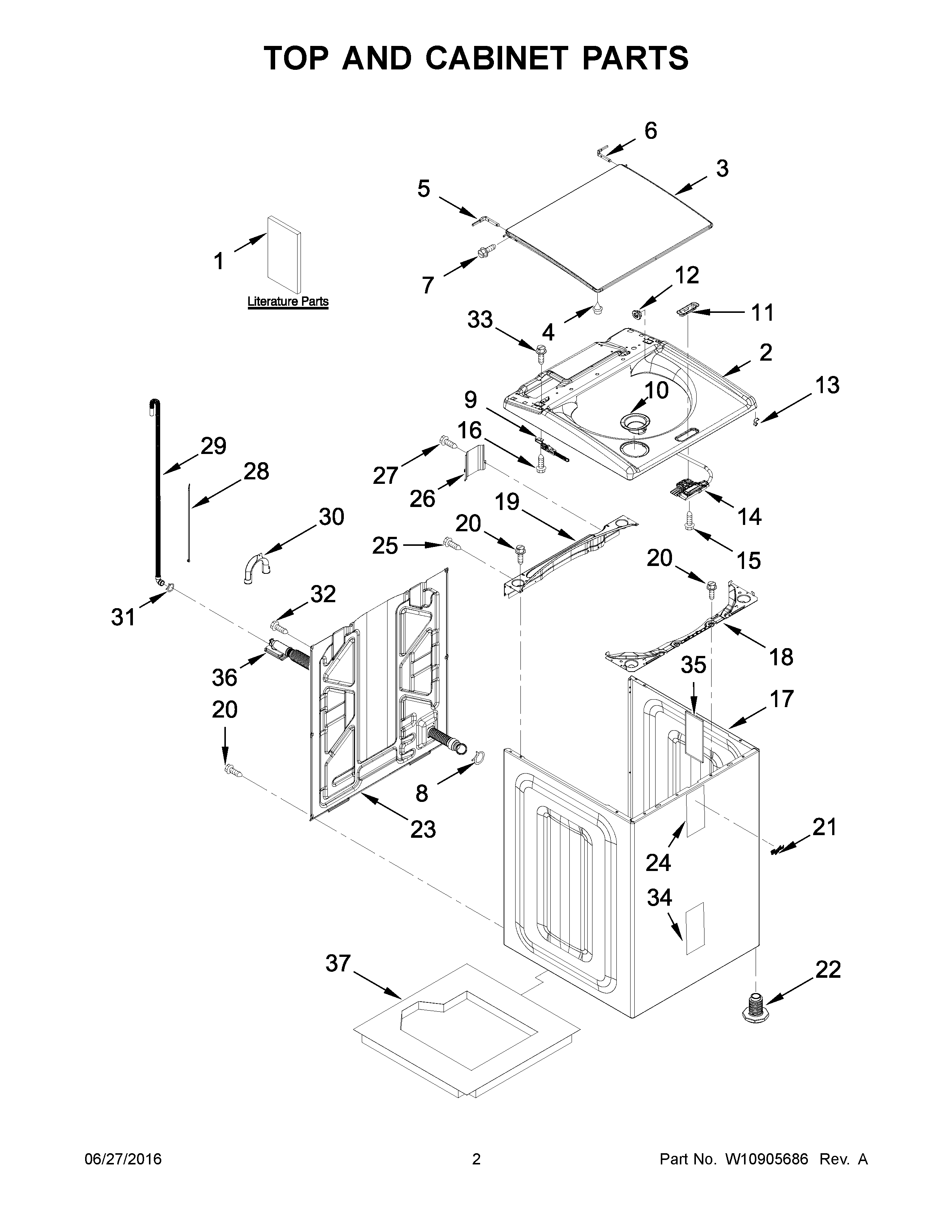

WTW8000DW1 02 – TOP AND CABINET PARTS

WTW8000DW1 02 – TOP AND CABINET PARTS

Written by

in

WTW8000DW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1DQUICK START GUIDE
1AOWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
1BTECH SHEET
2W11097645 Whirlpool Top
3W11101059 Whirlpool Door Assembly
4W11398707 Whirlpool Grommet Assembly
5WP8563965 Whirlpool Hinge Assembly
6WP8572974 Whirlpool Hinge
7W11404293 Whirlpool Screw
8WP285655 Whirlpool Hose Clamp
9AW11023747 Whirlpool Hinge Assembly
9W10861714 Whirlpool Hinge
10W11234069 Whirlpool Dispenser
11W11237157 Whirlpool Washer Lid Lock Bezel
12W11168238 Whirlpool Bearing
13WP90016 Whirlpool Clip
14W10810403 Whirlpool Washer Lid Lock Assembly
15WPW10273971 Whirlpool Screw
16WP693995 Whirlpool Screw
17W10677265 Whirlpool Cabinet Assembly
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21W11178521 Whirlpool Dishwasher Nameplate
22WPW10687506 Whirlpool Washer Leveling Leg
23W11417171 Whirlpool Rear Panel
24W11096159 Whirlpool Sound ABS Assembly
25WP489128 Whirlpool Refrigerator Screw
26W10676061 Whirlpool Cover Assembly
27W10846509 Whirlpool Screw
28WPW10339879 Whirlpool Wire Tie
29W11244231 Whirlpool Hose
30WPW10280024 Whirlpool Retainer
31WP356138 Whirlpool Hose Clamp
32WP9740848 Whirlpool Dishwasher Screw
33WP313808 Whirlpool Screw
34W11197416 Whirlpool Absorber
35WP8564458 Whirlpool Absorber
36W11246418 Whirlpool Hose Assembly
37W10821245 Whirlpool Sound Absorber
