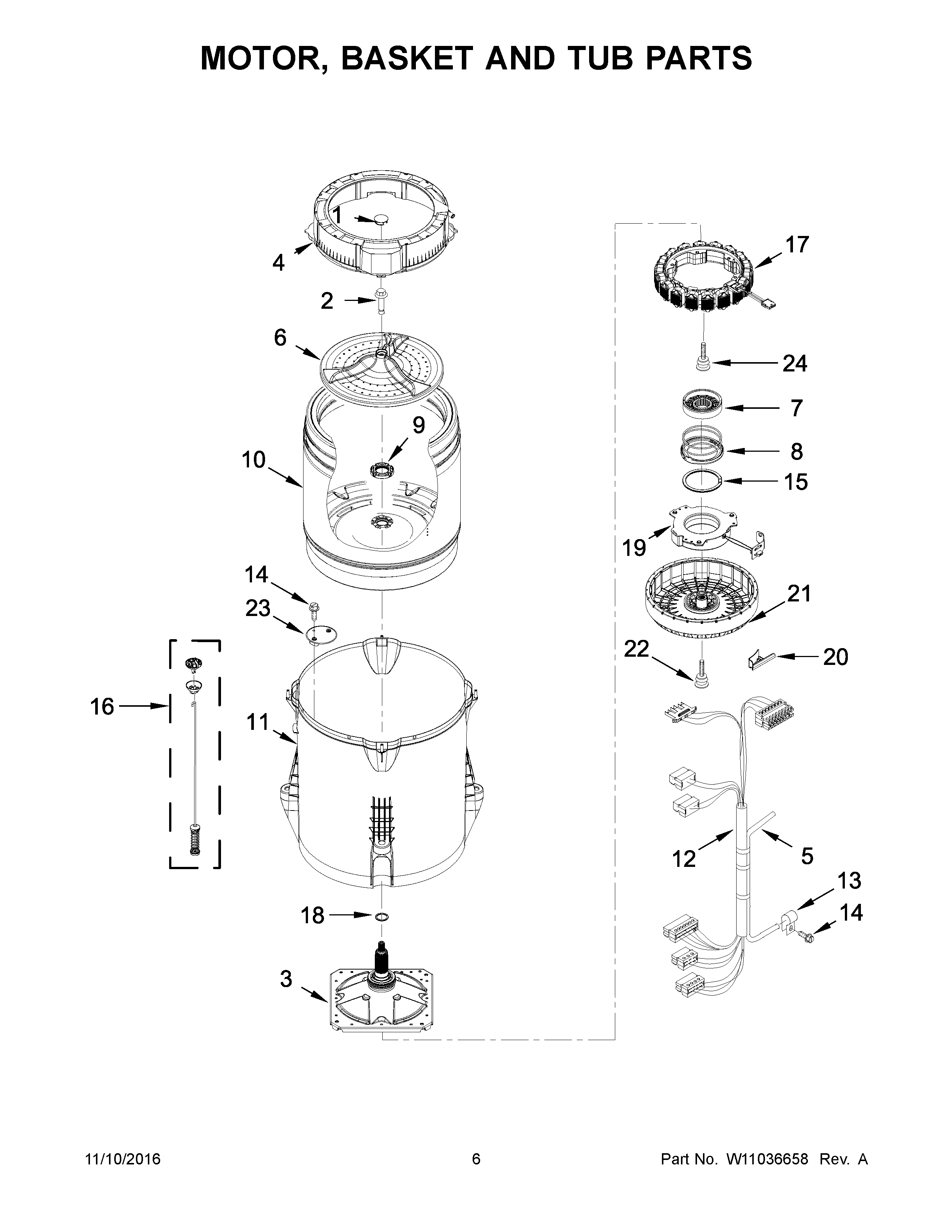

WTW8000DW2 04 – MOTOR, BASKET AND TUB PARTS

WTW8000DW2 04 – MOTOR, BASKET AND TUB PARTS

Written by

in

WTW8000DW2 04 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1W11050804 Whirlpool Cap
2W10752187 Whirlpool Screw
3GEARCASE
4W11161993 Whirlpool Tub Ring Assembly
5WP353244 Whirlpool Hose
6W10752283 Whirlpool Washer Washplate
8SLIDER
9W10909670 Whirlpool Washer Spanner Nut
10W10811960 Whirlpool Basket Assembly
11W11219115 Whirlpool Outer Tub
12W11409746 Whirlpool Wire Harness
13W10005430 Whirlpool Clamp
14WPW10109200 Whirlpool Screw
16W11130356 Whirlpool Suspension Rod Assembly
17W10754158 Whirlpool Stator
18W11032711 Whirlpool Washer
19CLUTCH
20SHIELD
21ROTOR
22W10752189 Whirlpool Screw
23WPW10215093 Whirlpool Filter
24SCREW
