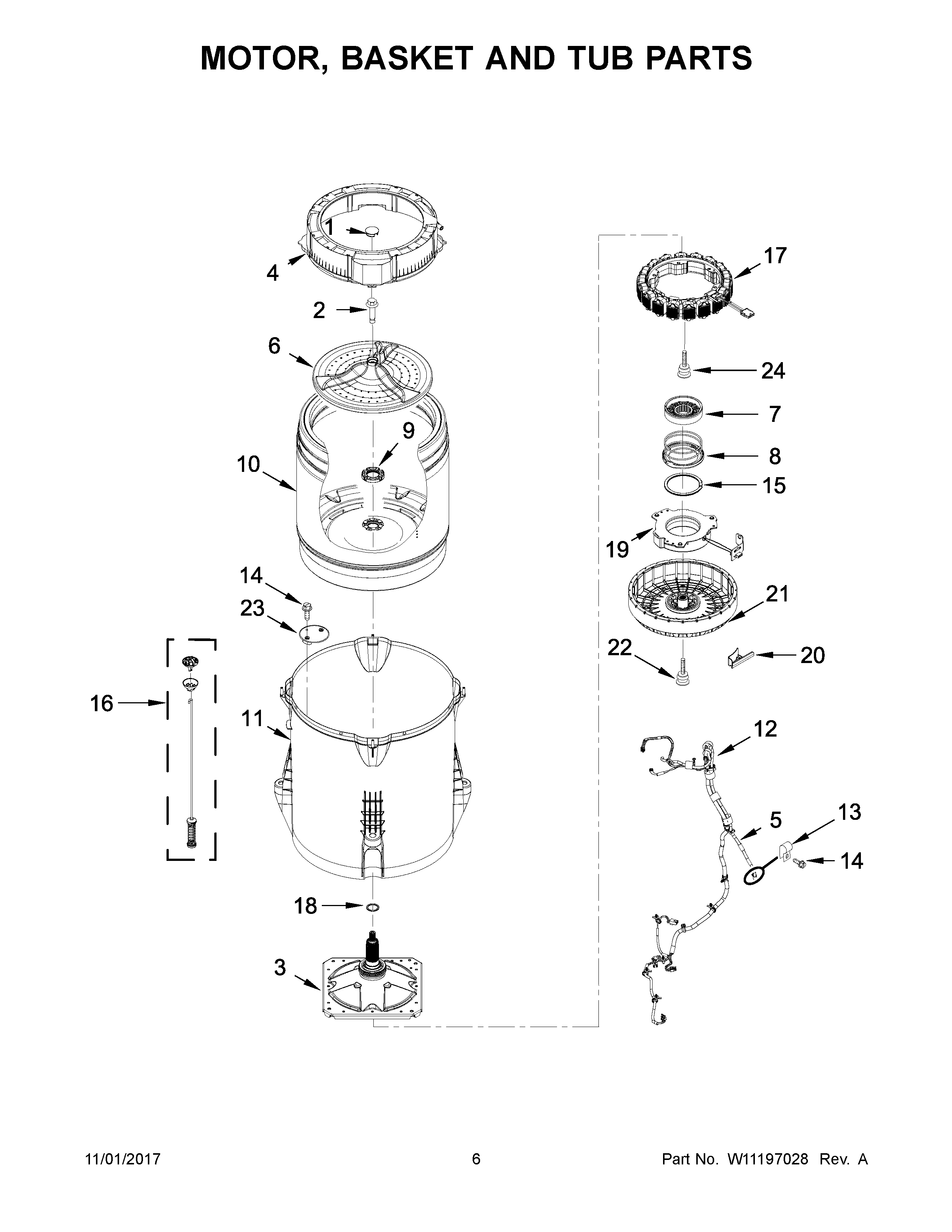

WTW8000DW5 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	W11050804 Whirlpool Cap
2	W10752187 Whirlpool Screw
3	GEARCASE
4	W11161993 Whirlpool Tub Ring Assembly
5	WP353244 Whirlpool Hose
6	W10752283 Whirlpool Washer Washplate
8	SLIDER
9	W10909670 Whirlpool Washer Spanner Nut
10	W10811960 Whirlpool Basket Assembly
11	W11219115 Whirlpool Outer Tub
12	W11409746 Whirlpool Wire Harness
13	W10005430 Whirlpool Clamp
14	WPW10109200 Whirlpool Screw
16	W11130356 Whirlpool Suspension Rod Assembly
17	W10915700 Whirlpool Stator
18	W11032711 Whirlpool Washer
19	CLUTCH
20	SHIELD
21	ROTOR
22	W10752189 Whirlpool Screw
23	WPW10215093 Whirlpool Filter
24	SCREW
