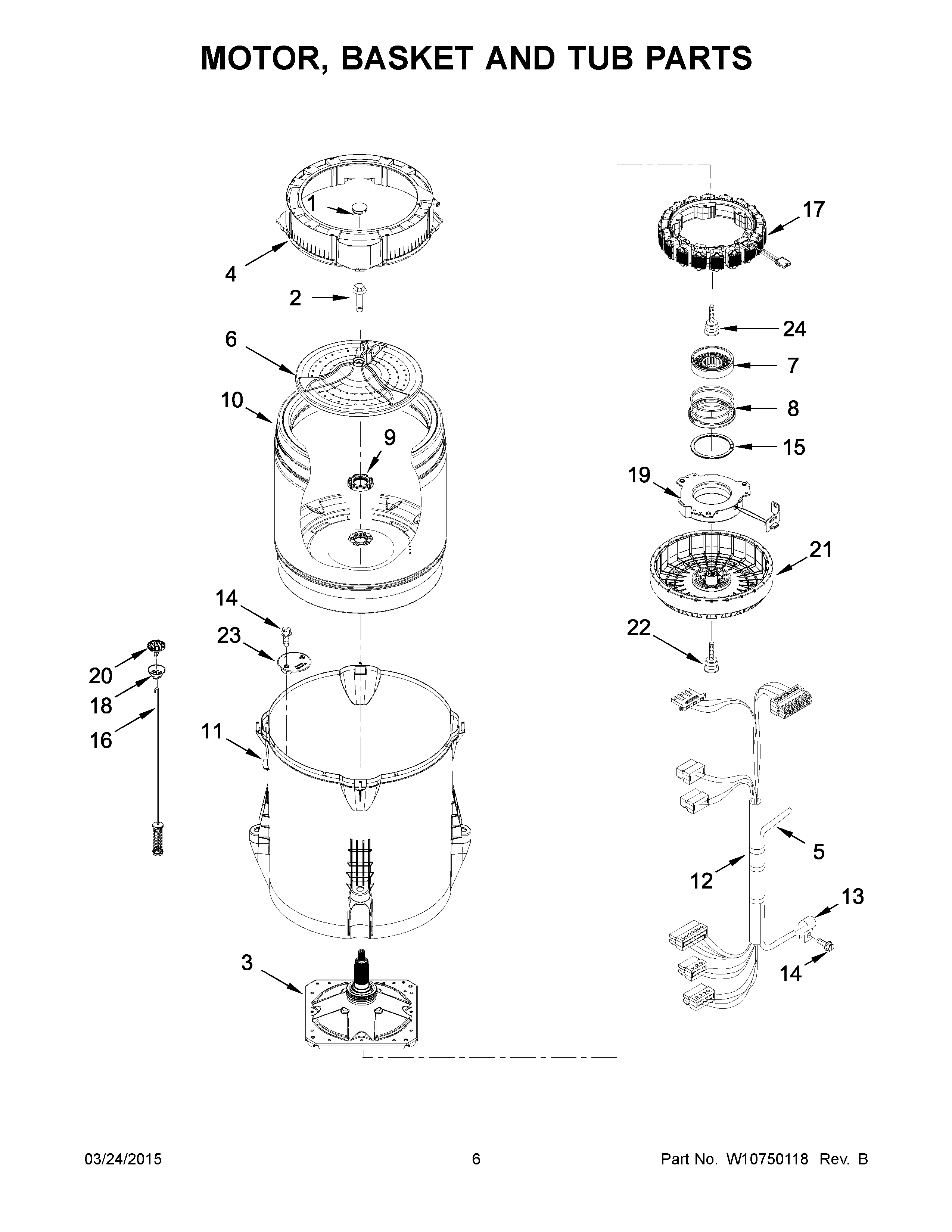

WTW8040DW0 04 – MOTOR, BASKET AND TUB PARTS

WTW8040DW0 04 – MOTOR, BASKET AND TUB PARTS

Written by

in

WTW8040DW0 04 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1W11123149 Whirlpool Cap
2W10752187 Whirlpool Screw
3GEARCASE
4W11161993 Whirlpool Tub Ring Assembly
5WP353244 Whirlpool Hose
6W10775188 Whirlpool Washplate
8SLIDER
9W10909670 Whirlpool Washer Spanner Nut
10W10811960 Whirlpool Basket Assembly
11W11219115 Whirlpool Outer Tub
12W11213337 Whirlpool Wire Harness
13W10005430 Whirlpool Clamp
14WPW10109200 Whirlpool Screw
16W11130356 Whirlpool Suspension Rod Assembly
17W10754158 Whirlpool Stator
18W10440729 Whirlpool Suspension
19CLUTCH
20W10780046 Whirlpool Suspension Rod Kit
21ROTOR
22W10752189 Whirlpool Screw
23WPW10215093 Whirlpool Filter
24SCREW
