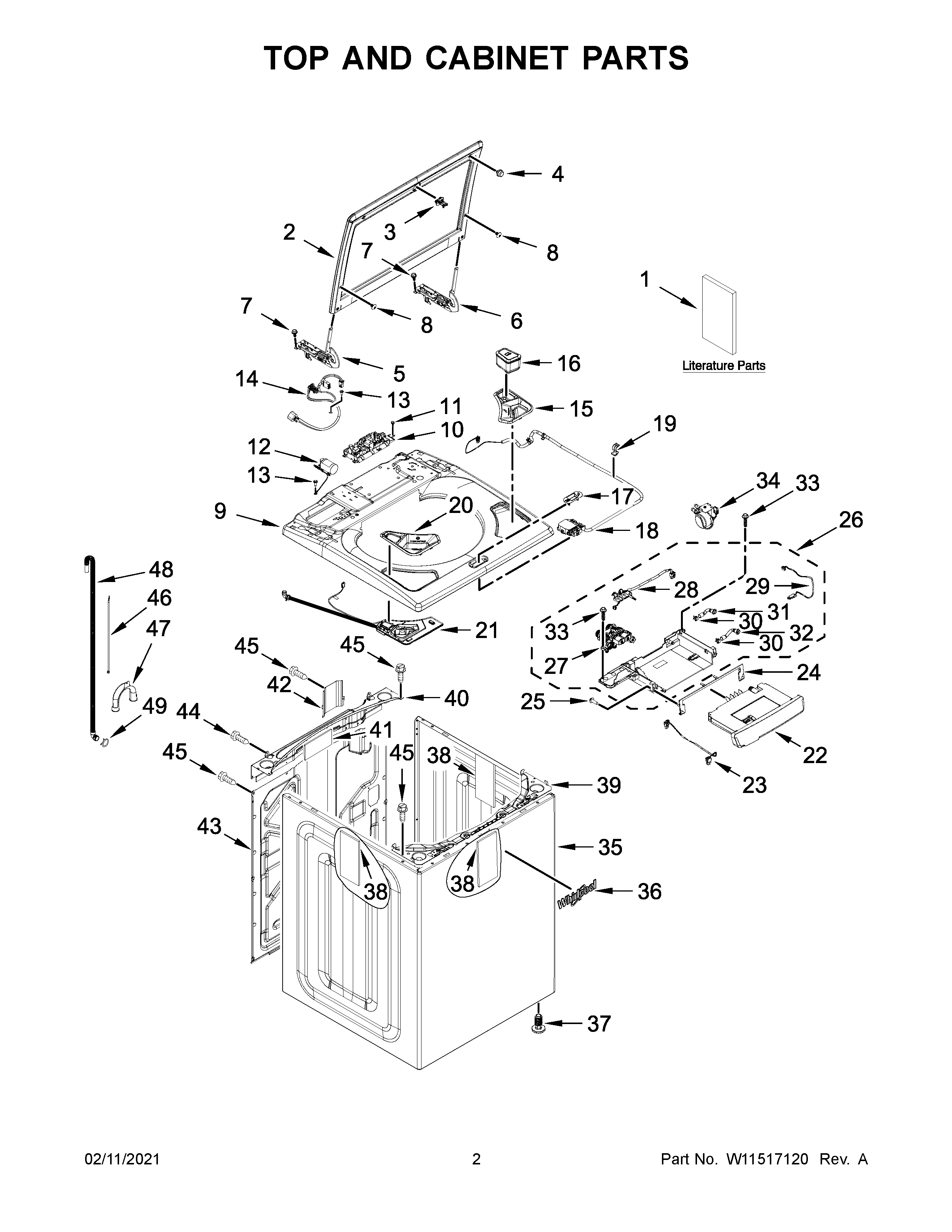

WTW8127LC0 02 – TOP AND CABINET PARTS

WTW8127LC0 02 – TOP AND CABINET PARTS

Written by

in

WTW8127LC0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2W11470212 Whirlpool Lid Assembly
3W11457841 Whirlpool Door Strike
4W11398707 Whirlpool Grommet Assembly
5W11551369 Whirlpool Left Hand Hinge
6W11551376 Whirlpool Hinge
7WP489128 Whirlpool Refrigerator Screw
8W11679612 Whirlpool Washer Bolt
9AW11423773 Whirlpool Top Assembly
9W11423774 Whirlpool Washer Top
10W11510463-includeCORE Whirlpool W11510463 Washer Electronic Control Board + Core
11WP693995 Whirlpool Screw
12FILTER
13W10846509 Whirlpool Screw
14W11551294 Whirlpool Power Cord Harness Non-Heating
15W11662175 Whirlpool Washer Bezel
16W11416456 Whirlpool Adhesive
17W11545554 Whirlpool Knob Bezel
17AW11559688 Whirlpool Knob Bezel
18LATCH
19WP90016 Whirlpool Clip
20W11550898 Whirlpool Dispenser Tray
21W11569112 Whirlpool Dispenser
22W11413340 Whirlpool Drawer
23W11130938 Whirlpool Wire Harness
24W11174982 Whirlpool Bezel
25WP9740848 Whirlpool Dishwasher Screw
26W11413407 Whirlpool Drawer Assembly
27W11220230 Whirlpool Washer Water Inlet Valve
28W11524851 Whirlpool Wire Harness
29W11685945 Whirlpool Sensor Switch
30W10715699 Whirlpool Hose Clamp
31W11094606 Whirlpool Hose
32W11174978 Whirlpool Hose
33WPW10109200 Whirlpool Screw
34W11596130 Whirlpool Flow Meter
35W10677265 Whirlpool Cabinet Assembly
35AW10677266 Whirlpool Cabinet Assembly
36W11178521 Whirlpool Dishwasher Nameplate
37WPW10687506 Whirlpool Washer Leveling Leg
38W11197416 Whirlpool Absorber
39W11381327 Whirlpool Brace
40W11712680 Whirlpool Commercial Part Brace
41WP8564458 Whirlpool Absorber
42W10676061 Whirlpool Cover Assembly
43W11417171 Whirlpool Rear Panel
44W11568617 Whirlpool Screw
45W11685943 Whirlpool Screw
46WPW10339879 Whirlpool Wire Tie
47WPW10280024 Whirlpool Retainer
48W11244231 Whirlpool Hose
49WP356138 Whirlpool Hose Clamp
