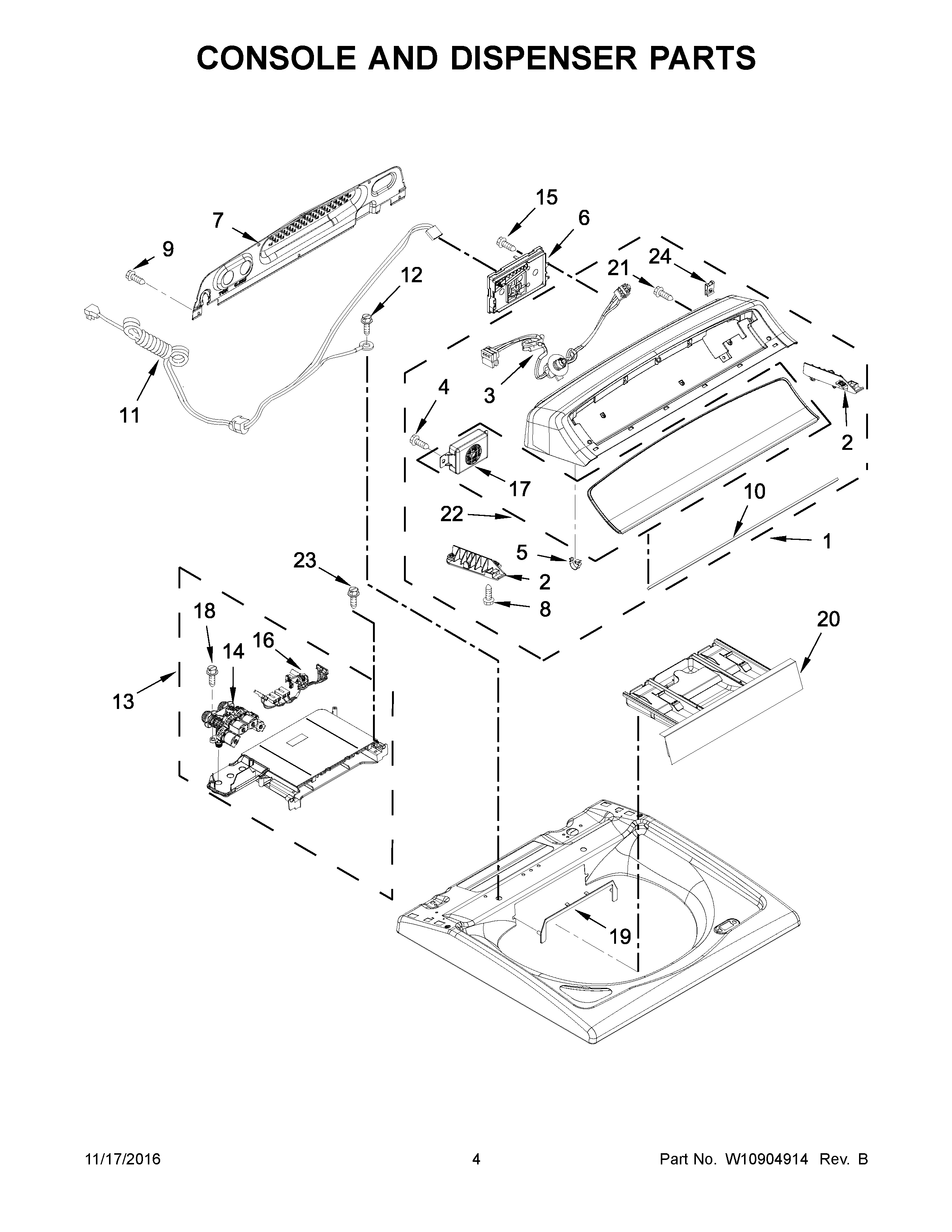

WTW8500DC1 03 – CONSOLE AND DISPENSER PARTS

WTW8500DC1 03 – CONSOLE AND DISPENSER PARTS

Written by

in

WTW8500DC1 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1W10861501 Whirlpool Console
1BW11169707 Whirlpool Console
1AW10838672 Whirlpool Console
2AW10631629 Whirlpool Bracket
2W10631630 Whirlpool Bracket Assembly
3W10915405 Whirlpool Wire Harness
4W10728156 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7W10611544 Whirlpool Rear Panel
8W10853898 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10W10726624 Whirlpool Seal
11W11096073 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11173599 Whirlpool Housing Assembly
14W11165546 Whirlpool Washer Water Inlet Valve
15WP9740848 Whirlpool Dishwasher Screw
16W11193817 Whirlpool Wire Harness
17W11123146 Whirlpool Speaker
18WPW10109200 Whirlpool Screw
19W10601845 Whirlpool Bezel
19AW10601876 Whirlpool Bezel Assembly
20AW11129928 Whirlpool Drawer Assembly
20W11209429 Whirlpool Drawer
21W11311945 Whirlpool Refrigerator Screw
22W11115199 Whirlpool Control Panel
23W11700520 Whirlpool Screw
24W11213336 Whirlpool Nut
