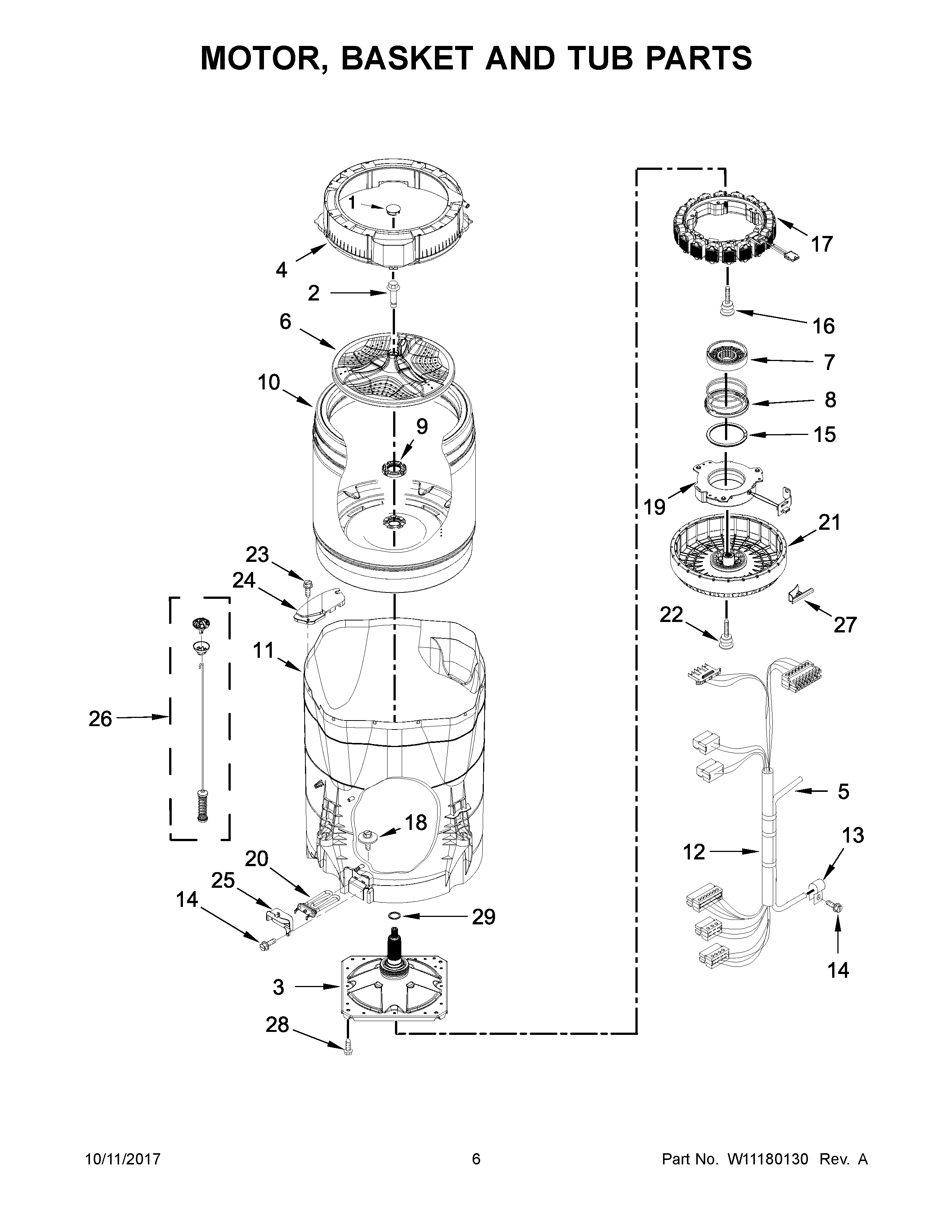

WTW8500DC4 04 – MOTOR, BASKET AND TUB PARTS

WTW8500DC4 04 – MOTOR, BASKET AND TUB PARTS

Written by

in

WTW8500DC4 04 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1W11050804 Whirlpool Cap
2W10752187 Whirlpool Screw
3GEARCASE
4W11161993 Whirlpool Tub Ring Assembly
5WP353244 Whirlpool Hose
6W10752283 Whirlpool Washer Washplate
8SLIDER
9W10909670 Whirlpool Washer Spanner Nut
10W10811960 Whirlpool Basket Assembly
11W10512164 Whirlpool Outer Tub
12W10777956 Whirlpool Wire Harness
13W10005430 Whirlpool Clamp
14WPW10109200 Whirlpool Screw
16SCREW
17W10754158 Whirlpool Stator
18W10743982 Whirlpool Screw Assembly
19CLUTCH
20W11041462 Whirlpool Heater
21ROTOR
22W10752189 Whirlpool Screw
23WP8533928 Whirlpool Refrigerator Screw
24W10597575 Whirlpool Filter
25W11288102 Whirlpool Cover Assembly
26W11130356 Whirlpool Suspension Rod Assembly
27SHIELD
28WPW10249633 Whirlpool Screw
29W11032711 Whirlpool Washer
