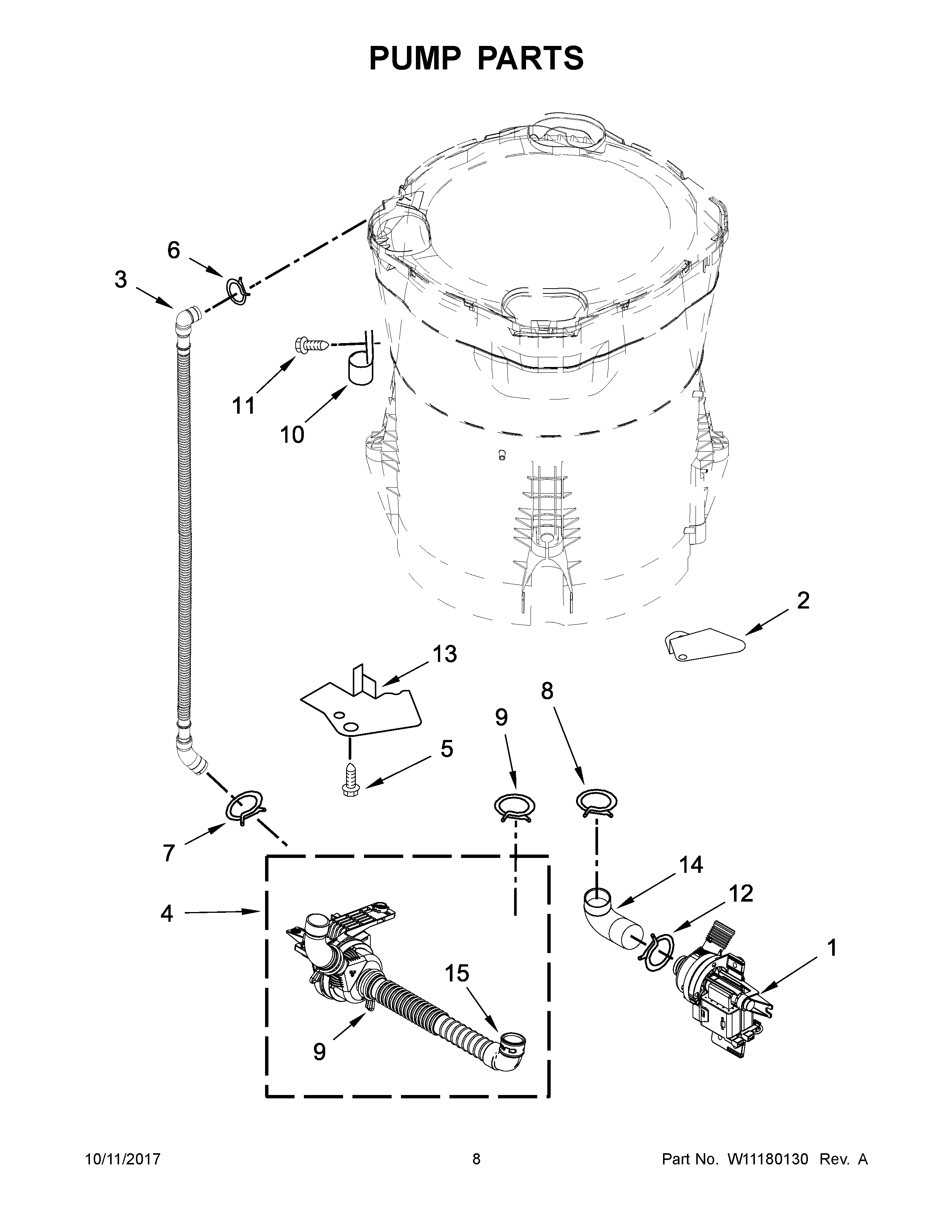

WTW8500DC4 05 – PUMP PARTS

Products

Position	Product
1	W10876600 Whirlpool Washer Water Pump
2	W10894129 Whirlpool Shield
3	W10622692 Whirlpool Hose
4	W10915703 Whirlpool Water Pump
5	WPW10004910 Whirlpool Screw
6	3363365 Whirlpool Clamp
7	WP8269146 Whirlpool Dishwasher Clamp
10	8534021 Whirlpool Clamp
11	WPW10109200 Whirlpool Screw
12	WP285655 Whirlpool Hose Clamp
13	SHIELD, RECIRCULATION PUMP
14	HOSE
15	W10763460 Whirlpool Hose
