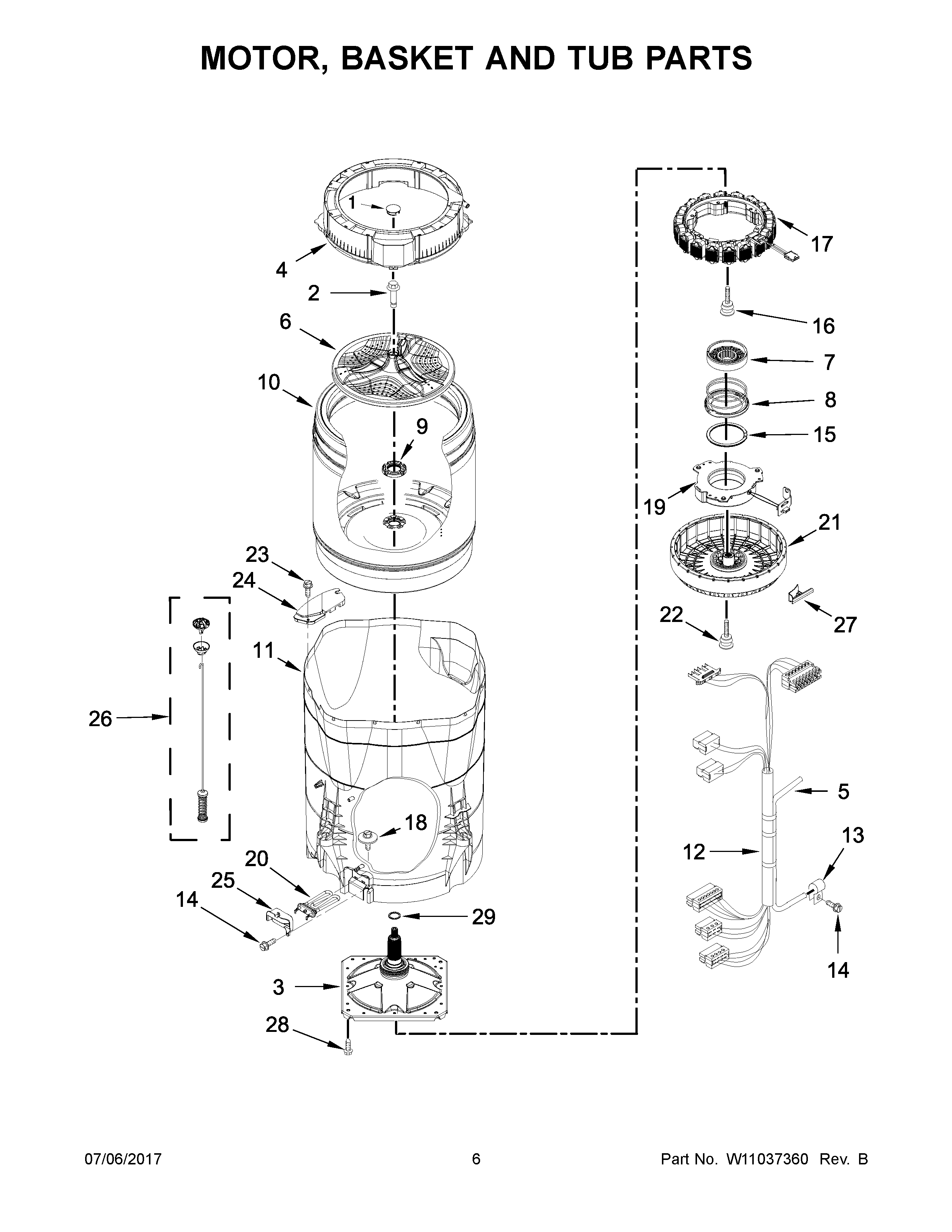

WTW8500DW2 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	W11050804 Whirlpool Cap
2	W10752187 Whirlpool Screw
3	GEARCASE
4	W11161993 Whirlpool Tub Ring Assembly
5	WP353244 Whirlpool Hose
6	W10752283 Whirlpool Washer Washplate
8	SLIDER
9	W10909670 Whirlpool Washer Spanner Nut
10	W10811960 Whirlpool Basket Assembly
11	W10512164 Whirlpool Outer Tub
12	W10777956 Whirlpool Wire Harness
13	W10005430 Whirlpool Clamp
14	WPW10109200 Whirlpool Screw
16	SCREW
17	W10754158 Whirlpool Stator
18	W10743982 Whirlpool Screw Assembly
19	CLUTCH
20	W11041462 Whirlpool Heater
21	ROTOR
22	W10752189 Whirlpool Screw
23	WP8533928 Whirlpool Refrigerator Screw
24	W10597575 Whirlpool Filter
25	W11288102 Whirlpool Cover Assembly
26	W11130356 Whirlpool Suspension Rod Assembly
27	SHIELD
28	WPW10249633 Whirlpool Screw
29	W11032711 Whirlpool Washer
