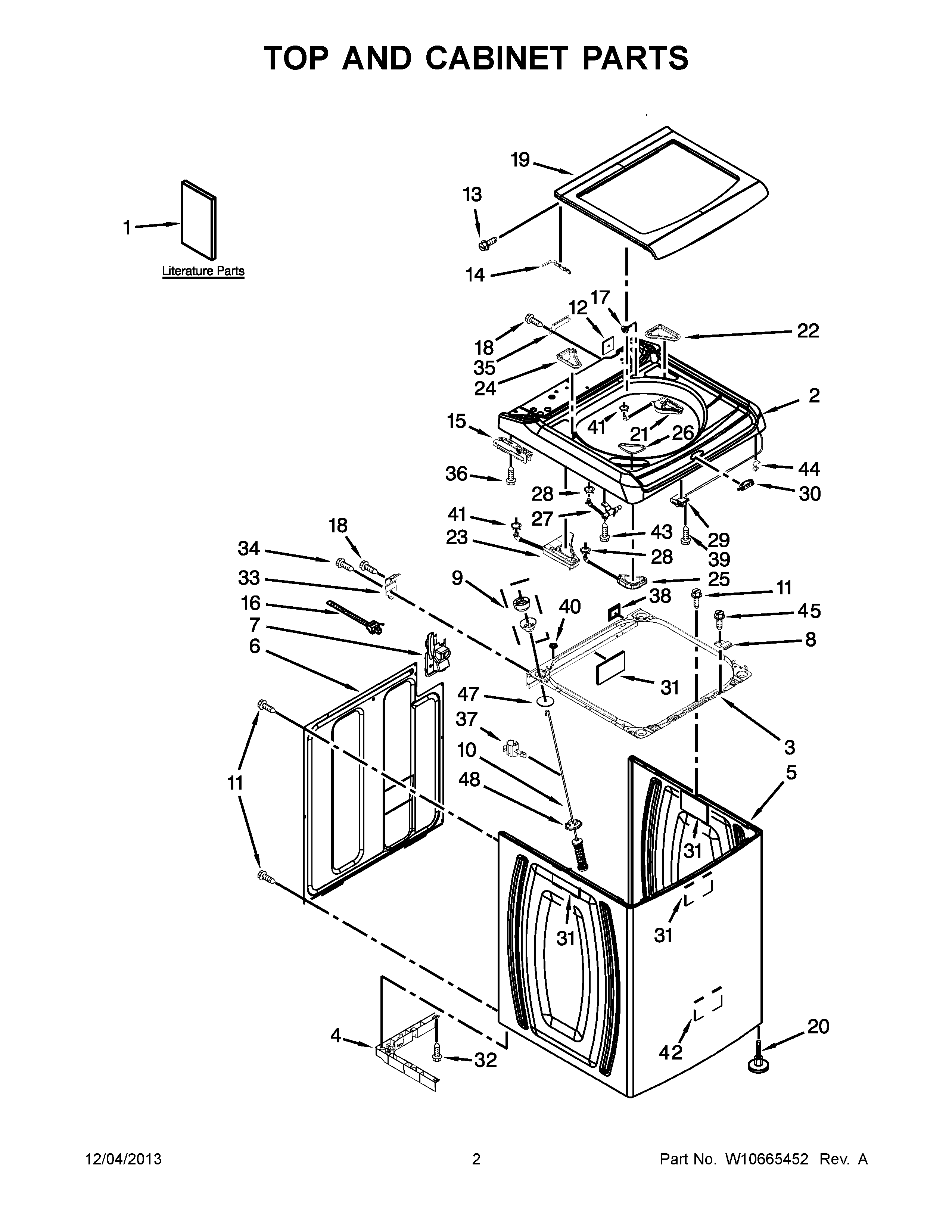

WTW8540BC1 02 – TOP AND CABINET PARTS

WTW8540BC1 02 – TOP AND CABINET PARTS

Written by

in

WTW8540BC1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1TECH SHEET
1OWNERS MANUAL
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1ENERGY GUIDE
2TOP (WHITE)
2TOP (CHROME SHADOW)
3FRAME ASSEMBLY, CABINET TOP
4WPW10370995 Whirlpool Base
4WPW10370996 Whirlpool Base Assembly
4WPW10378013 Whirlpool Base
4RISER, WASHER (REAR
5W10434974 Whirlpool White Cabinet
5CABINET (CHROME SHADOW)
6WP8566090 Whirlpool Rear Panel
7WPW10160572 Whirlpool Connector
8WPW10248088 Whirlpool Lock
9W10440729 Whirlpool Suspension
10W10440786 Whirlpool Suspension Rod Kit
11WP489069 Whirlpool Compactor Screw
12W10161707 Whirlpool Seal
13SCREW
14WP8563964 Whirlpool Hinge
15WPW10309358 Whirlpool Hinge Assembly
15WPW10309357 Whirlpool Hinge
16WPW10155270 Whirlpool Wire Tie
17WPW10119519 Whirlpool Bearing
18WP488729 Whirlpool Refrigerator Door Screw
19WPW10550304 Whirlpool Lid
19WPW10110852 Whirlpool Lid
20WPW10363890 Whirlpool Leveling Feet
21WPW10553370 Whirlpool Dispenser Assembly
22BEZEL, FABRIC SOFTENER DISPENSER (GRAY)
22WPW10136371 Whirlpool Bezel
23WPW10554110 Whirlpool Dispenser Assembly
24WPW10131523 Whirlpool Bezel
24W10306029 Whirlpool Bezel
25WPW10552116 Whirlpool Dispenser
26WP8563877 Whirlpool Bezel
26BEZEL, DETERGENT DISPENSER (GREY)
27WPW10552206 Whirlpool Nozzle
29WPW10619844 Whirlpool Washer Latch
30WPL W10143661
30Bezel, Lid Lock
31WP8564458 Whirlpool Absorber
32W10406220 Whirlpool Screw
33W10432012 Whirlpool Hinge
34WP489464 Whirlpool Refrigerator Screw
358563941 Whirlpool Cover Assembly
36WP693995 Whirlpool Screw
37Bracket, Drain Hose
38WPL 8578386
39W11501418 Whirlpool Refrigerator Screw
408576476 Whirlpool Spacer
41WP596669 Whirlpool Hose Clamp
42W11096159 Whirlpool Sound ABS Assembly
43W11700520 Whirlpool Screw
44WP90016 Whirlpool Clip
45SCREW
47WP8577896 Whirlpool Washer
48WP8564017 Whirlpool Cup
