WTW8540BC1 03 – CONTROL PANEL PARTS
Written by
in

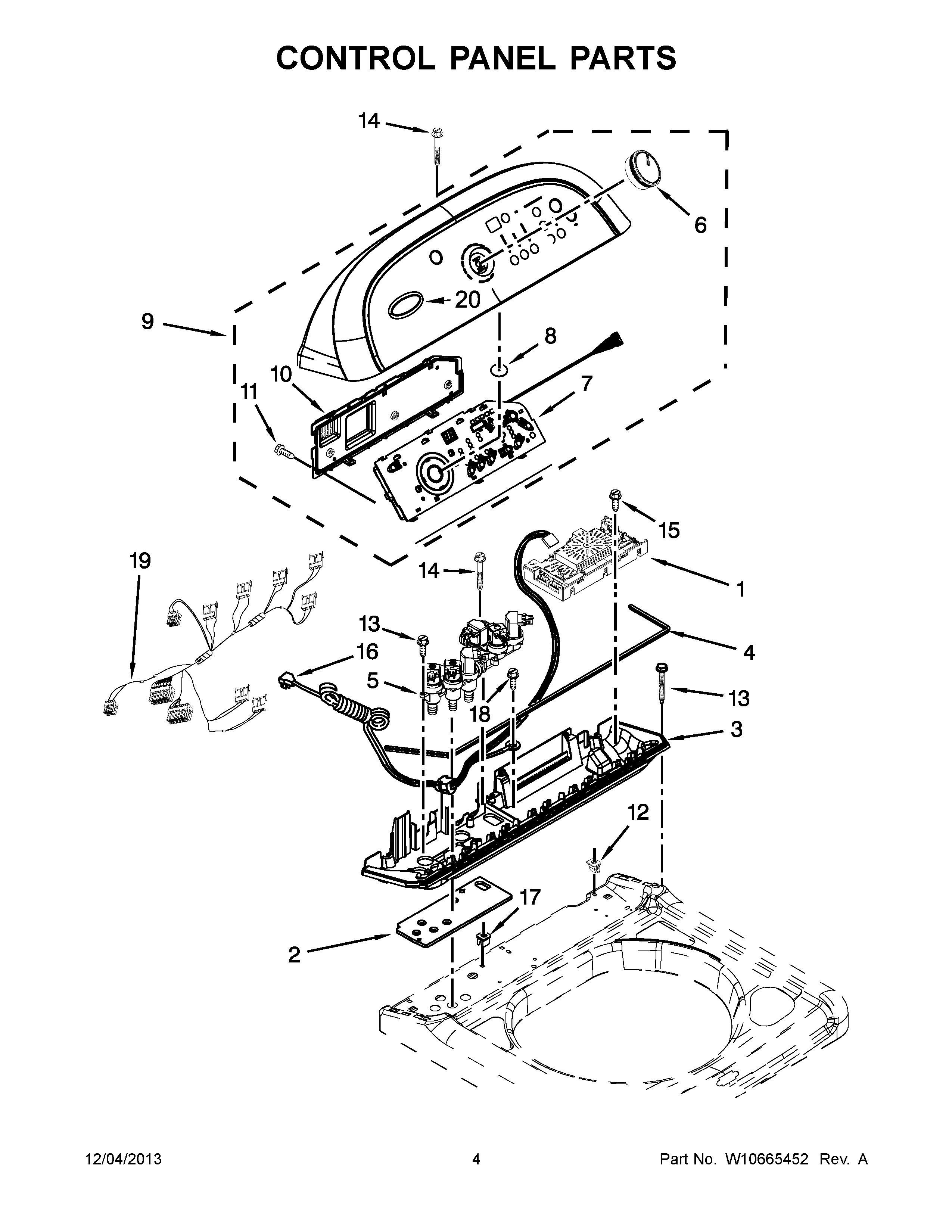

WTW8540BC1 03 – CONTROL PANEL PARTS
Products
Position
Product
1
CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
2
W10130502 Whirlpool Gasket
3
TRAY ASSEMBLY (GRAY)
3
WP8578550 Whirlpool Tray
4
GASKET, CONSOLE/TRAY
5
W10853723 Whirlpool Water Valve
6
WPW10576632 Whirlpool Dishwasher Knob
6
WPW10567081 Whirlpool Knob Assembly
7
WPW10562818 Whirlpool Electronic Control Board + Core
8
SEAL, USER INTERFACE
9
ASSEMBLY, CONSOLE (WHITE)
9
ASSEMBLY, CONSOLE (CHROME SHADOW)
10
8564265 Whirlpool Cover
11
WP4449745 Whirlpool Screw
12
W10022060 Whirlpool Nut Assembly
13
WPW10052600 Whirlpool Screw Assembly
14
8565324 Whirlpool Screw
15
WP8281136 Whirlpool Screw
16
WPW10547372 Whirlpool Power Cord
17
98460 Whirlpool Nut
18
WP3351614 Whirlpool Screw
19
WPW10404419 Whirlpool Wire Harness
20
WPW10393264 Whirlpool Refrigerator Nameplate
←
