WU181 09 – TUB SUPPORTS, BASE FRAME, MOTOR & VALVES
Written by
in

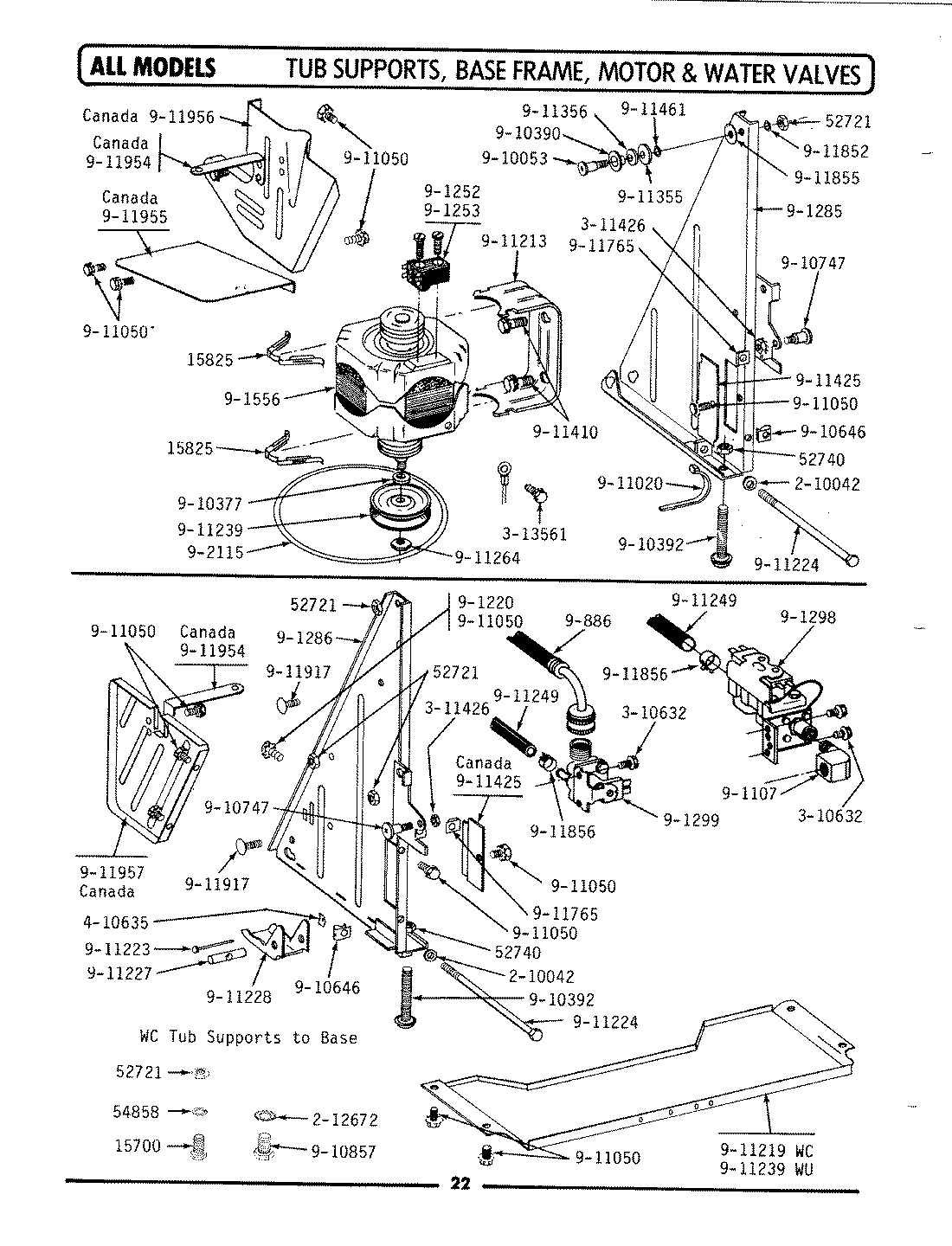

WU181 09 – TUB SUPPORTS, BASE FRAME, MOTOR & VALVES
Products
Position
Product
1
WPY015825 Whirlpool Motor Clip
2
WP62739 Whirlpool Nut
3
MAY 210042
4
MAY 251193
5
MAY Y310632
6
WP3400029 Whirlpool Dishwasher Nut
7
MAY Y313561
8
MAY 901107
9
MAY 901220
10
MAY 901252
11
MAY 901253
12
MAY 901283
13
MAY 901285
14
MAY 901286
15
MAY 901298
16
MAY 901523
17
MAY 901556
18
MAY 901586
19
MAY 901829
20
6-9021150 Whirlpool Dishwasher Belt with Lubricant
21
MAY 910053
22
MAY 910377
23
MAY 910390
24
W10176519 Whirlpool Leveling Feet
25
MAY 910646
26
MAY 910747
27
MAY 911020
28
MAY 911050
29
MAY 911213
30
MAY 911223
31
MAY 911224
32
MAY 911227
33
MAY 911228
34
MAY 911231
35
MAY 911239
36
MAY 911249
37
MAY Y911264
38
MAY Y911355
39
MAY 911356
40
MAY 911410
41
MAY 911425
42
MAY 911461
43
MAY 911503
44
MAY 911504
45
MAY 911660
46
MAY 911765
47
MAY 911852
48
MAY 911855
49
WP596669 Whirlpool Hose Clamp
50
MAY 911917
51
MAY 911954
52
MAY 911955
53
MAY 911956
54
MAY 911957
←
