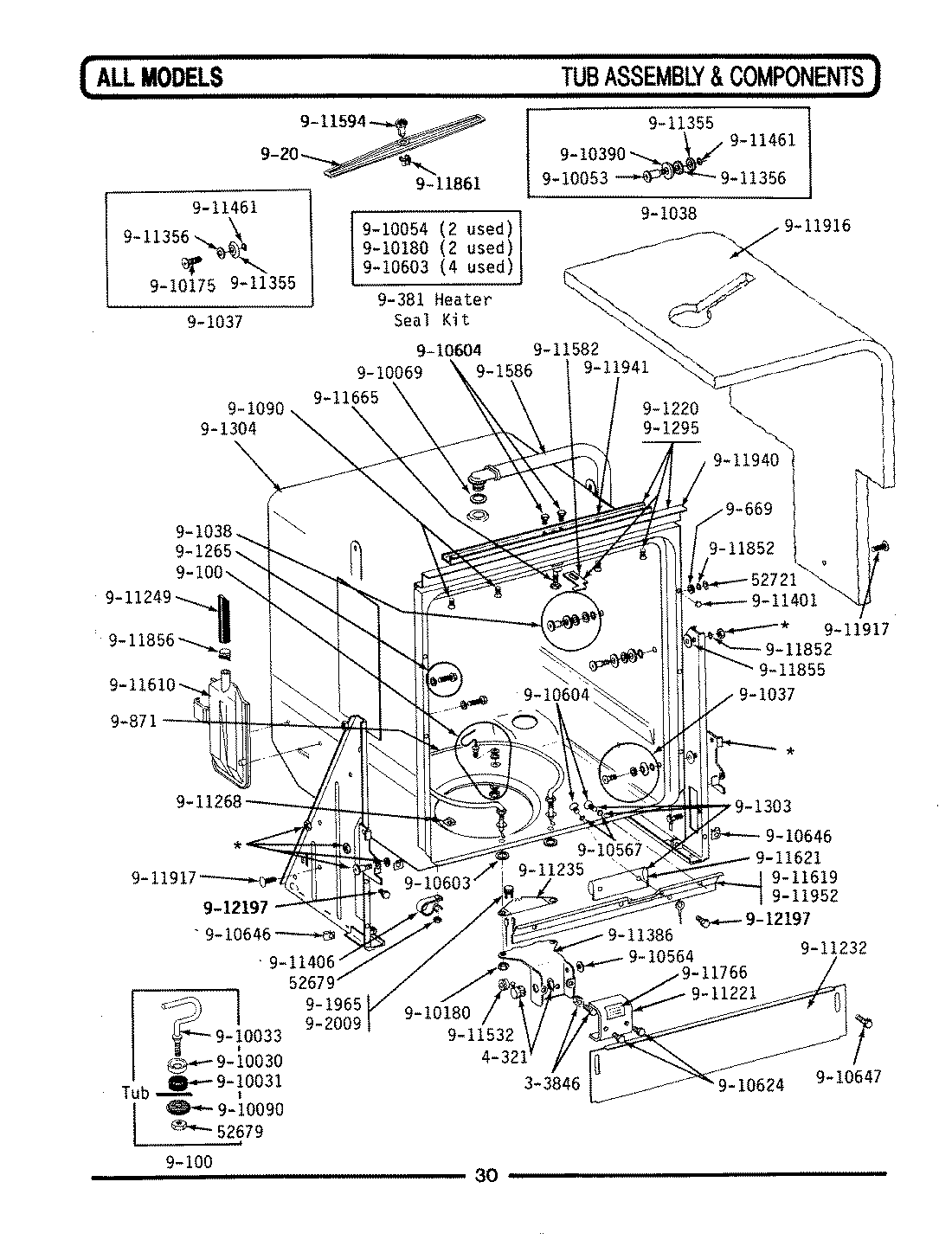

WU282 09 – TUB ASSEMBLY & COMPONENTS

Products

Position	Product
1	M0282009 Whirlpool Air Conditioner Nut
2	Y052721 Whirlpool Nut
3	MAY 303846
4	MAY 400321
5	MAY 900020
6	MAY 900100
7	MAY 900381
8	MAY 900669
9	MAY 900871
10	MAY 901037
11	MAY 901038
12	MAY 901090
13	MAY 901220
14	MAY 901265
15	MAY 901295
16	MAY 901303
17	MAY 901304
18	MAY 901586
21	MAY 910030
22	MAY 910031
23	MAY 910033
24	MAY 910053
25	MAY 910054
27	MAY 910090
28	MAY 910175
29	MAY 910180
30	MAY 910390
31	MAY 910564
32	MAY 910567
33	MAY 910603
34	MAY 910604
35	MAY 910624
36	MAY 910646
37	SCREW
38	MAY 911221
39	MAY 911232
40	MAY Y911235
41	MAY 911249
42	MAY 911268
43	MAY Y911355
44	MAY 911356
45	MAY 911386
46	MAY 911401
47	MAY 911406
48	MAY 911461
50	MAY 911582
51	MAY 911594
52	MAY 911610
53	MAY 911619
54	MAY 911621
55	61199 Speed Queen Screw,MACH HXWAHD 10-32 ST
56	MAY 911766
57	MAY 911852
58	MAY 911855
59	WP596669 Whirlpool Hose Clamp
60	MAY 911861
61	MAY 911916
62	MAY 911917
63	MAY 911940
64	MAY 911941
65	MAY 911952
66	WP3390631 Whirlpool Screw
