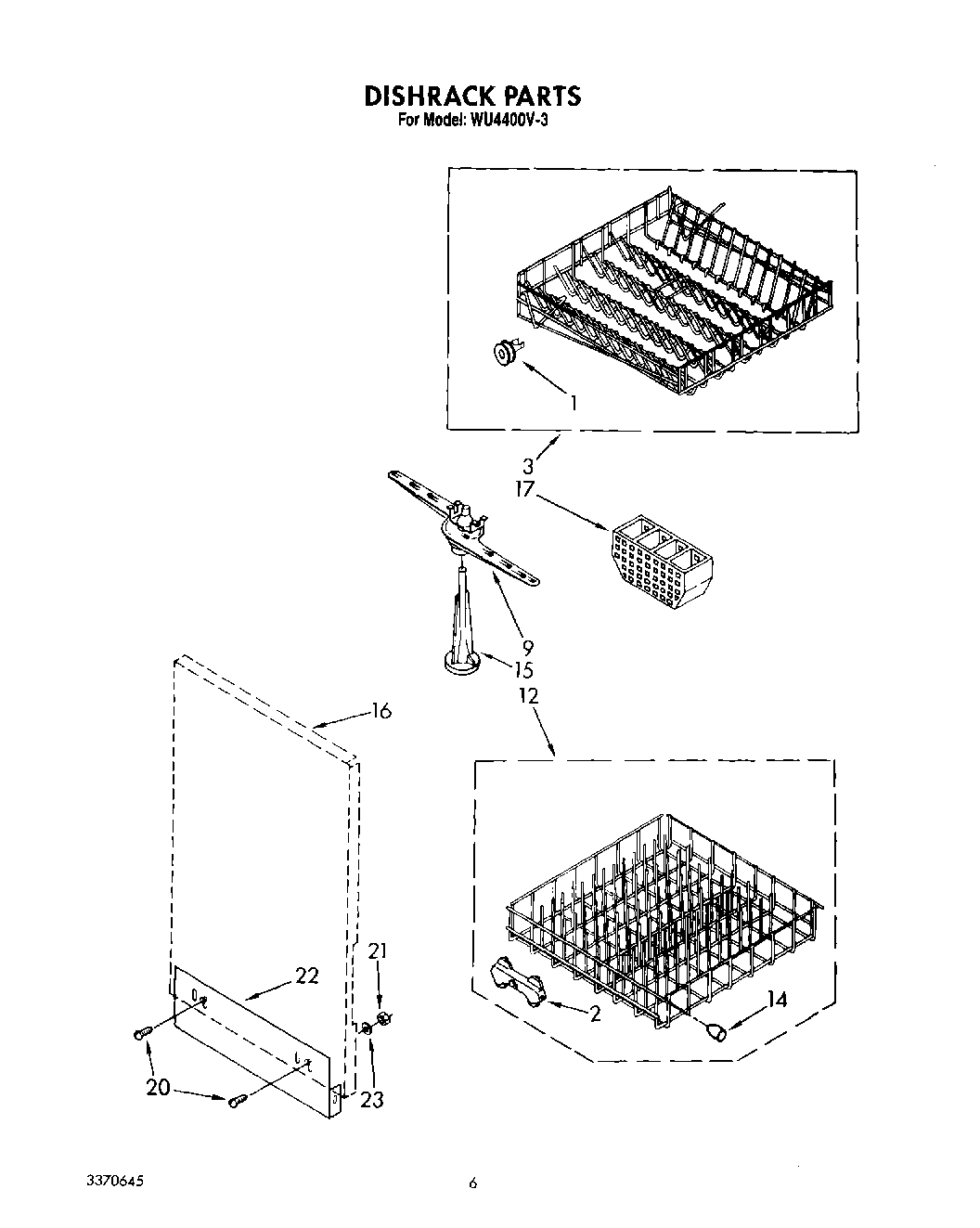

WU4400V3 04 – DISHRACK

Products

PositionProduct
1Wheel & Axle Assembly (4)
2WP3376961 Whirlpool Dishwasher Wheel
3W11169039 Whirlpool Dishwasher Dish Rack
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, Reversible Side (Almond)
16Panel, Reversible Side (Coffee)
16Panel, Reversible Side (White)
16Panel, Reversible Side (Platinum)
16Panel, Reversible Side (Golden Harvest)
16Panel, Reversible Side (New Avocado)
16Panel, Reversible Side (Toast)
17WP8539066 Whirlpool Dishwasher Basket Ware
20Screw, Lower Side Panel Mounting (2)
21W10080180 Whirlpool Nut
22Panel, Lower Side
23W11089212 Whirlpool Washer
