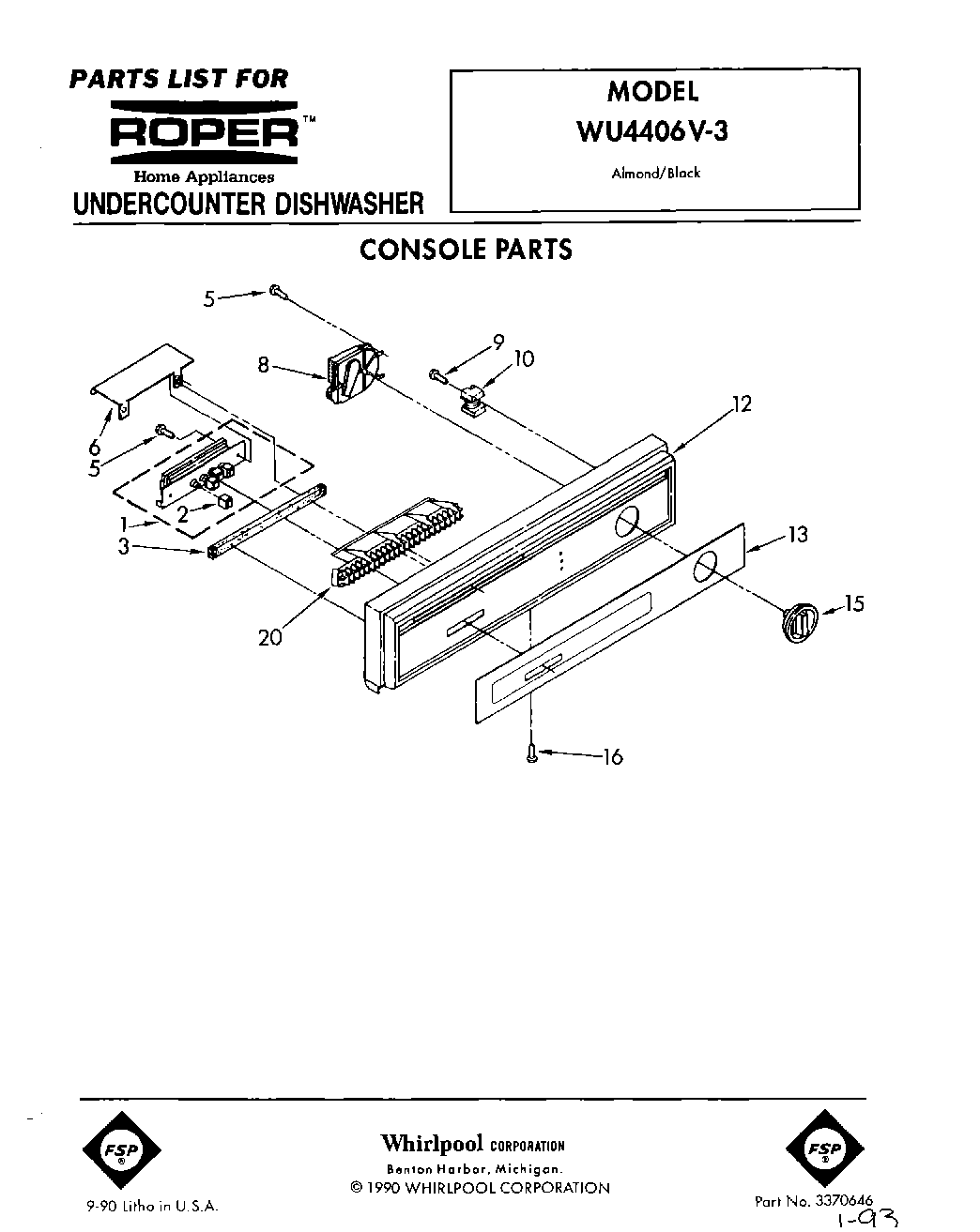

WU4406V3 01 – CONSOLE

Written by

Products

Position	Product
1	Switch, Pushbutton
2	Button (6)
3	Foam, Seal
5	WP304231 Whirlpool Dishwasher Screw
6	Shield, Switch
8	Timer
9	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10	Relay, Start
12	Console (Includes Items 13 & 20)
13	Insert, Decorative
15	Knob, Timer
16	WP488729 Whirlpool Refrigerator Door Screw
20	Grill, Vent
