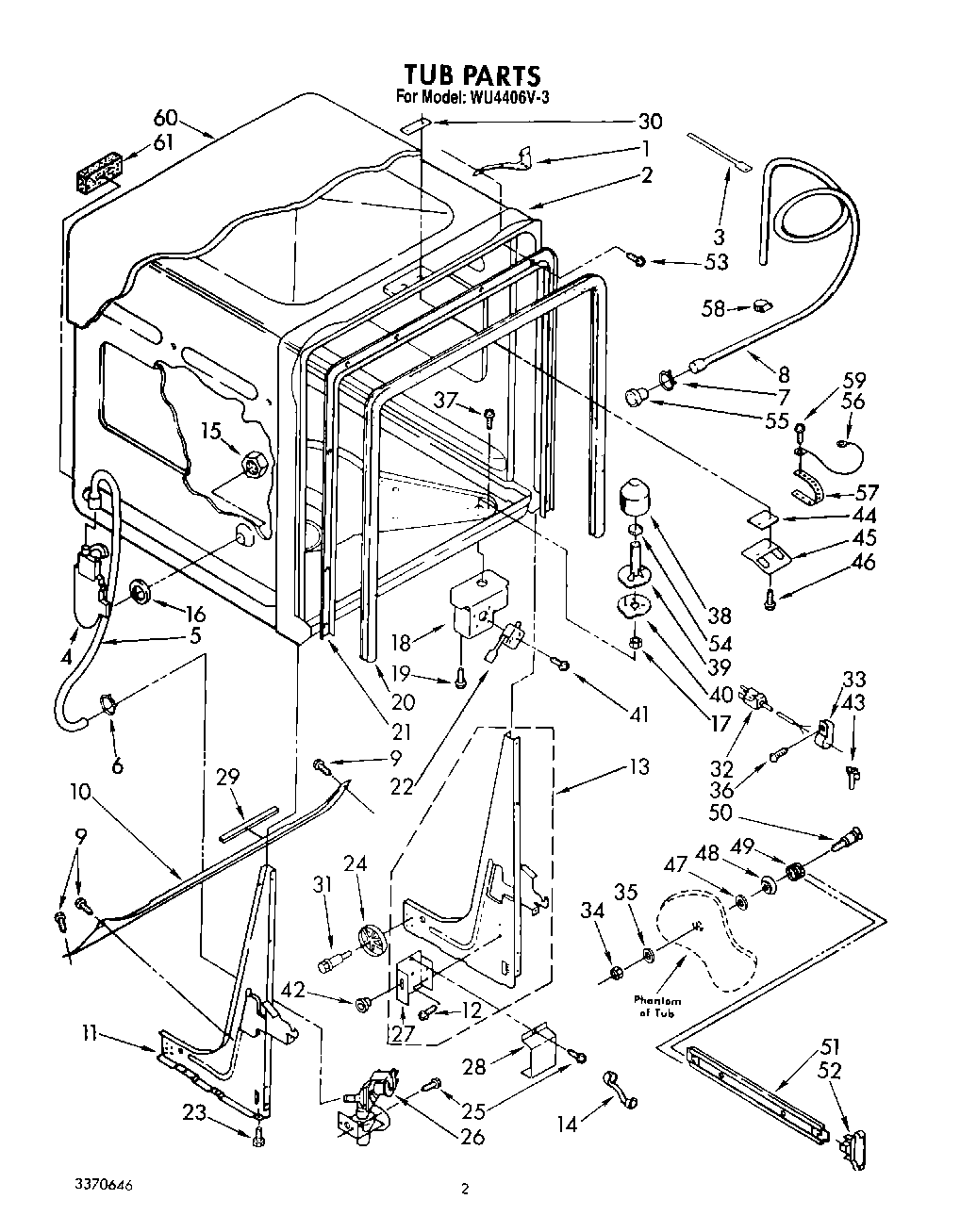

WU4406V3 02 – TUB, LIT/OPTIONAL

WU4406V3 02 – TUB, LIT/OPTIONAL

Written by

in

WU4406V3 02 – TUB, LIT/OPTIONAL

Products

Position	Product
	Kit, Epoxy Patch (White)
	WPL 72112
	350942 Whirlpool Spray Paint
	WPL LIT3370035
	WPL LIT3369943
	WPL LIT3369941
	WPL LIT3368831
	285006 Whirlpool Spray
	Leveler (Thinner) (2oz.)
	WPL LIT3370646
	W10840471 Whirlpool Dishwasher Touch Up
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Golden Harvest (Uncut)
	Toast
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	Paint, Spray (13 Oz.) (Platinum)
1	Bracket, Mounting (2)
2	tub assembly
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	WP489128 Whirlpool Refrigerator Screw
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
29	Edge Protector
30	Nut, Twin Spring
31	Screw (2)
32	WPL 302764
33	Clamp, Strain Relief
34	Nut, Lock
35	Washer (8)
36	Screw, 8-18 x 5/8 (10)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
42	WPL 302770
43	WPL 770754
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WPL 303485
57	Strap, Ground
58	WP3367052 Whirlpool Hose Clamp
59	Screw, Ground (10-24 x 1)
60	W11086533 Whirlpool Dishwasher Shield
61	Block, Foam (2)
