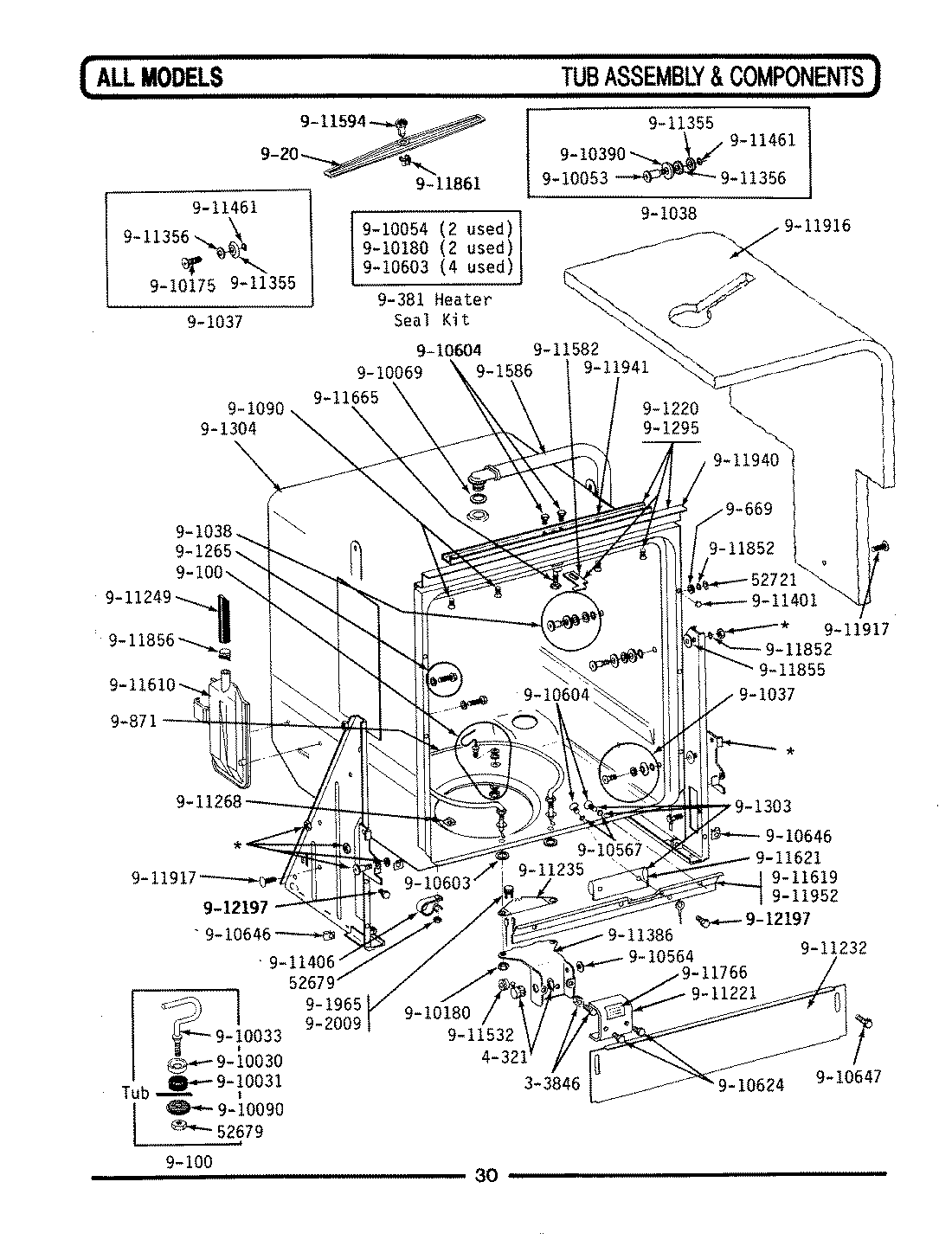

WU502 12 – TUB ASSEMBLY & COMPONENTS

Products

Position	Product
1	M0282009 Whirlpool Air Conditioner Nut
2	Y052721 Whirlpool Nut
3	MAY 303846
4	MAY 400321
5	MAY 900020
6	MAY 900100
7	MAY 900381
8	MAY 900669
9	MAY 900871
10	MAY 901037
11	MAY 901038
12	MAY 901090
13	MAY 901220
14	MAY 901265
15	MAY 901295
16	MAY 901303
17	MAY 901304
18	MAY 901586
19	MAY 902009
20	MAY 910030
21	MAY 910031
22	MAY 910033
23	MAY 910053
24	MAY 910054
26	MAY 910090
27	MAY 910175
28	MAY 910180
29	MAY 910390
30	MAY 910564
31	MAY 910567
32	MAY 910603
33	MAY 910604
34	MAY 910624
35	MAY 910646
36	SCREW
37	MAY 911221
38	MAY 911232
39	MAY Y911235
40	MAY 911249
41	MAY 911268
42	MAY Y911355
43	MAY 911356
44	MAY 911386
45	MAY 911401
46	MAY 911406
47	MAY 911461
49	MAY 911582
50	MAY 911594
51	MAY 911610
52	MAY 911619
53	MAY 911621
54	61199 Speed Queen Screw,MACH HXWAHD 10-32 ST
55	MAY 911766
56	MAY 911852
57	MAY 911855
58	WP596669 Whirlpool Hose Clamp
59	MAY 911861
60	MAY 911916
61	MAY 911917
62	MAY 911940
63	MAY 911941
64	MAY 911952
65	WP3390631 Whirlpool Screw
