WU5650V2 02 – TUB, LIT/OPTIONAL

WU5650V2 02 – TUB, LIT/OPTIONAL

Written by

in

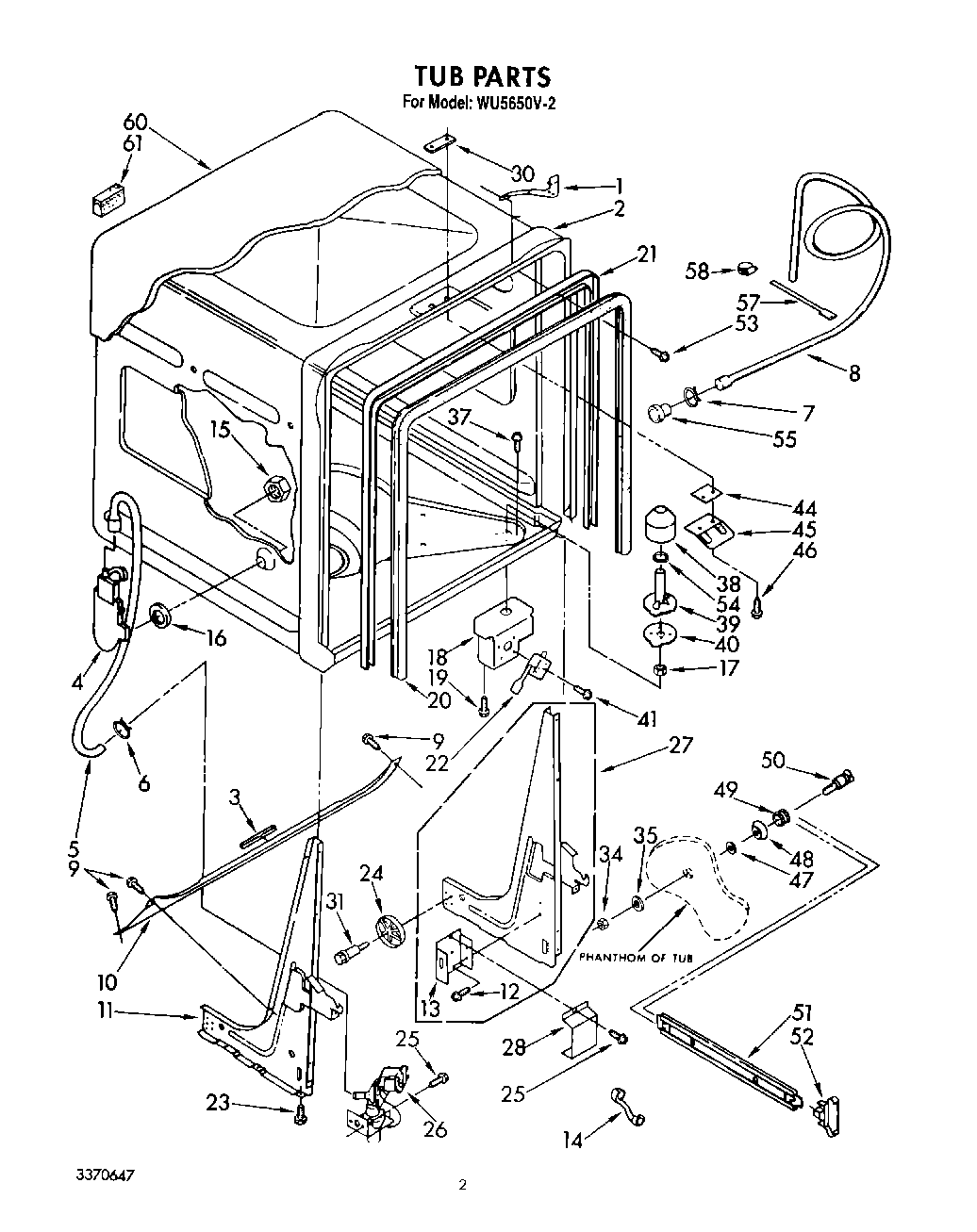

WU5650V2 02 – TUB, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3370035
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3370647
	WPL LIT3369941
	WPL LIT3369943
	WPL LIT3369947
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	Hose, Drain
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	WP489128 Whirlpool Refrigerator Screw
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw (2)
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	WPW10339879 Whirlpool Wire Tie
58	WP3367052 Whirlpool Hose Clamp
60	W11086533 Whirlpool Dishwasher Shield
61	350930 Whirlpool White Spray Paint
61	Kit, Epoxy Patch (White)
61	72113 Whirlpool Touch-Up Paint
61	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
61	Almond (Uncut)
61	Leveler (Thinner)
61	WP72107 Whirlpool Touchup
61	799344 Whirlpool Refrigerator Paint
61	72017 Whirlpool Appliance Touch-Up Paint White
61	350956 Whirlpool Spray Assembly
61	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
61	Golden Harvest (Uncut)
61	Toast
61	Vinyl Touch Up (Blue)
61	285006 Whirlpool Spray
61	Enamel, Coffee (1 Qt. Uncut)
61	Enamel, New Avocado (1 Qt. Uncut)
61	350942 Whirlpool Spray Paint
61	WPL 72112
61	Platinum (Uncut)
61	Enamal, Toast (1 Qt. Uncut)
61	Paint, Spray (13 Oz.) (Platinum)
61	Block, Foam (2)
61	Golden Harvest
