WU5750Y0 04 – TUB, LIT/OPTIONAL

WU5750Y0 04 – TUB, LIT/OPTIONAL

Written by

in

WU5750Y0 04 – TUB, LIT/OPTIONAL

Products

PositionProduct
350956 Whirlpool Spray Assembly
Side Panel Kit: (Almond)
Instructions, Installation
Platinum
Toast
Gold
Avocado
Side Panel Kit (White)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Vinyl Touch Up (Blue)
Instructions, Installation (Supplement) (Locating Your Water Supply)
285006 Whirlpool Spray
Enamel, Black (1 Qt. Uncut)
WPL LIT3369273
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT3371783
WPL LIT3370040
WPL LIT3370662
WPL 72112
350942 Whirlpool Spray Paint

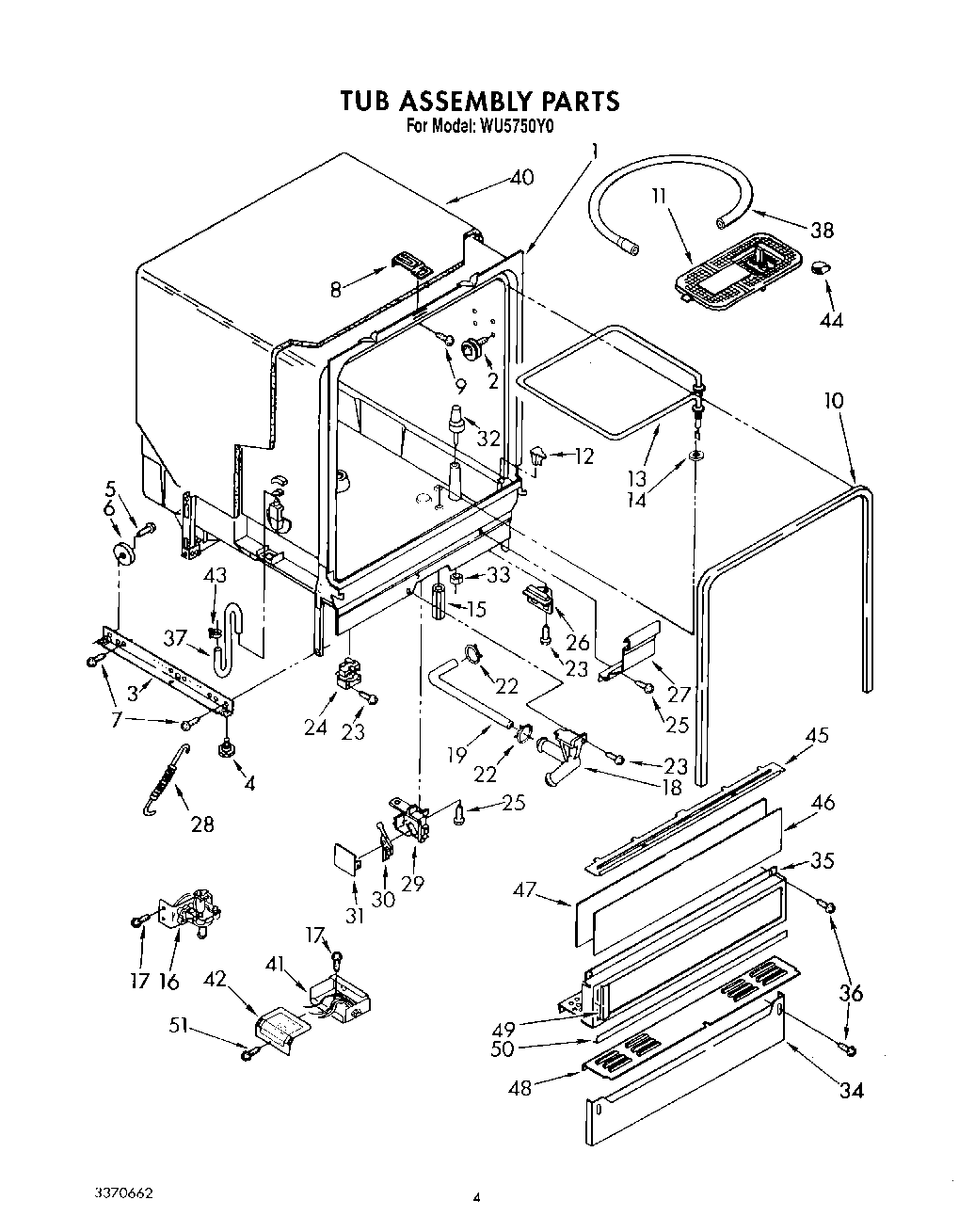

1Tub Assembly
2Tub, Wheel Assembly (8)
3Runner (2)
48193716 Whirlpool Leveling Leg
5Screw (2)
6WP302819 Whirlpool Dishwasher Wheel
7SCREW
8Plate, Latch
9Screw, 8-32
10WPW10509257 Whirlpool Door Gasket
11WP3369322 Whirlpool Cover Assembly
12DEFLECTOR-DISHWASHER
13WPW10082894 Whirlpool Dishwasher Heater
14WP717273 Whirlpool Dishwasher Rubber Washer
15Nut (2) (Heater Terminal)
16Water Valve
17WP489069 Whirlpool Compactor Screw
18Check, Valve Assembly
19Hose, Coupler
22CLAMP, HOSE
23WP489128 Whirlpool Refrigerator Screw
24W10102260 Whirlpool Dishwasher Motor Relay
25WP304231 Whirlpool Dishwasher Screw
26WP3368928 Whirlpool Dishwasher Fuse
27Shield, Harness
28Spring & Bearing Assembly (2)
29Housing, Float Switch
30Switch, Float
31Cover, Switch Housing
32WP8519552 Whirlpool Dishwasher Float
33Nut
34WP3379920 Whirlpool Dishwasher Toe Panel
35WP3369193 Whirlpool Dishwasher Panel
36WP302868 Whirlpool Screw
37Hose, Inlet
38WP3374077 Whirlpool Dishwasher Drain Hose
40W11086533 Whirlpool Dishwasher Shield
41Terminal Block & Plug Assembly
42Cover Assembly, Terminal Box
43WP596669 Whirlpool Hose Clamp
44WP3367052 Whirlpool Hose Clamp
45WP3372412 Whirlpool Dishwasher Retainer
46Panel, Front Access (Almond/Black)
47Spacer, Corrugated
48Extension
49Trim, Side (2)
50Trim, Bottom
51W11693756 Whirlpool Screw Assembly
