WU5750Y3 03 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	350956 Whirlpool Spray Assembly
	285006 Whirlpool Spray
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
	Side Panel Kit (White)
	Platinum
	Toast
	WP676455 Whirlpool Dishwasher Touch-Up
	Gold
	Avocado
	Side Panel Kit: (Almond)
	WPL LIT3371783
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	676458 Whirlpool Dishwasher Tine Tip
	Enamel, Black (1 Qt. Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3373477
	WPL LIT3369273
	675679 Whirlpool Dishwasher White Tip Tines
	WPL 72112
	WP676453 Whirlpool Dishwasher Touch-Up
	350942 Whirlpool Spray Paint
	WPL LIT3374368
	DOOR SPRING KIT: (HEAVY DUTY)

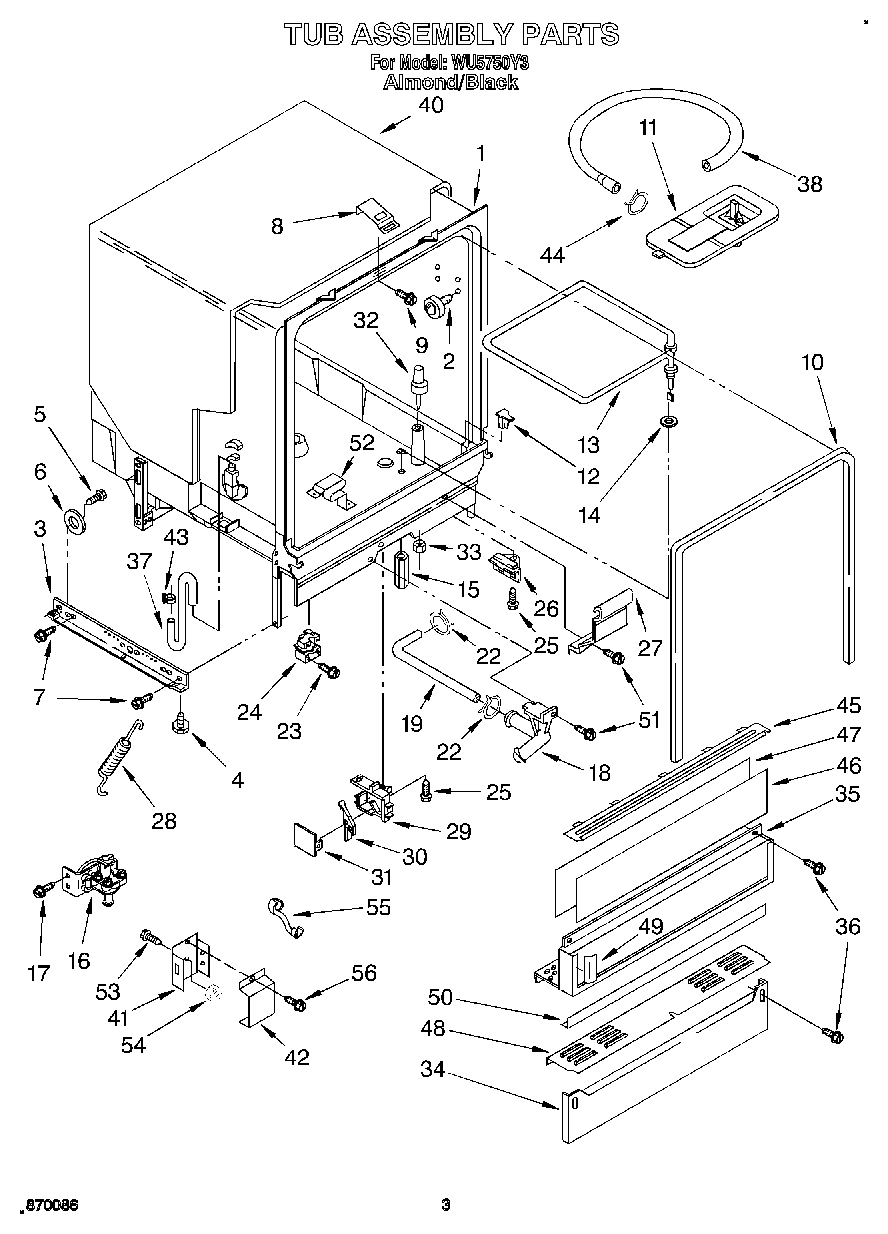

1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	WP3373228 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
40	W11086533 Whirlpool Dishwasher Shield
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	WP596669 Whirlpool Hose Clamp
44	WP356138 Whirlpool Hose Clamp
45	WP3372412 Whirlpool Dishwasher Retainer
46	Access Panel (White/Black)
46	Access Panel (Golden Harvest/ White)
46	Panel, Front Access (Almond/Black)
47	Spacer, Corrugated
48	Extension
49	Trim, Side (2)
50	Trim, Bottom
51	W11693756 Whirlpool Screw Assembly
52	Support, Heater
53	WP250830 Whirlpool Refrigerator Screw
54	WP488130 Whirlpool Air Conditioner Nut
55	Relief, Strain
56	Screw
