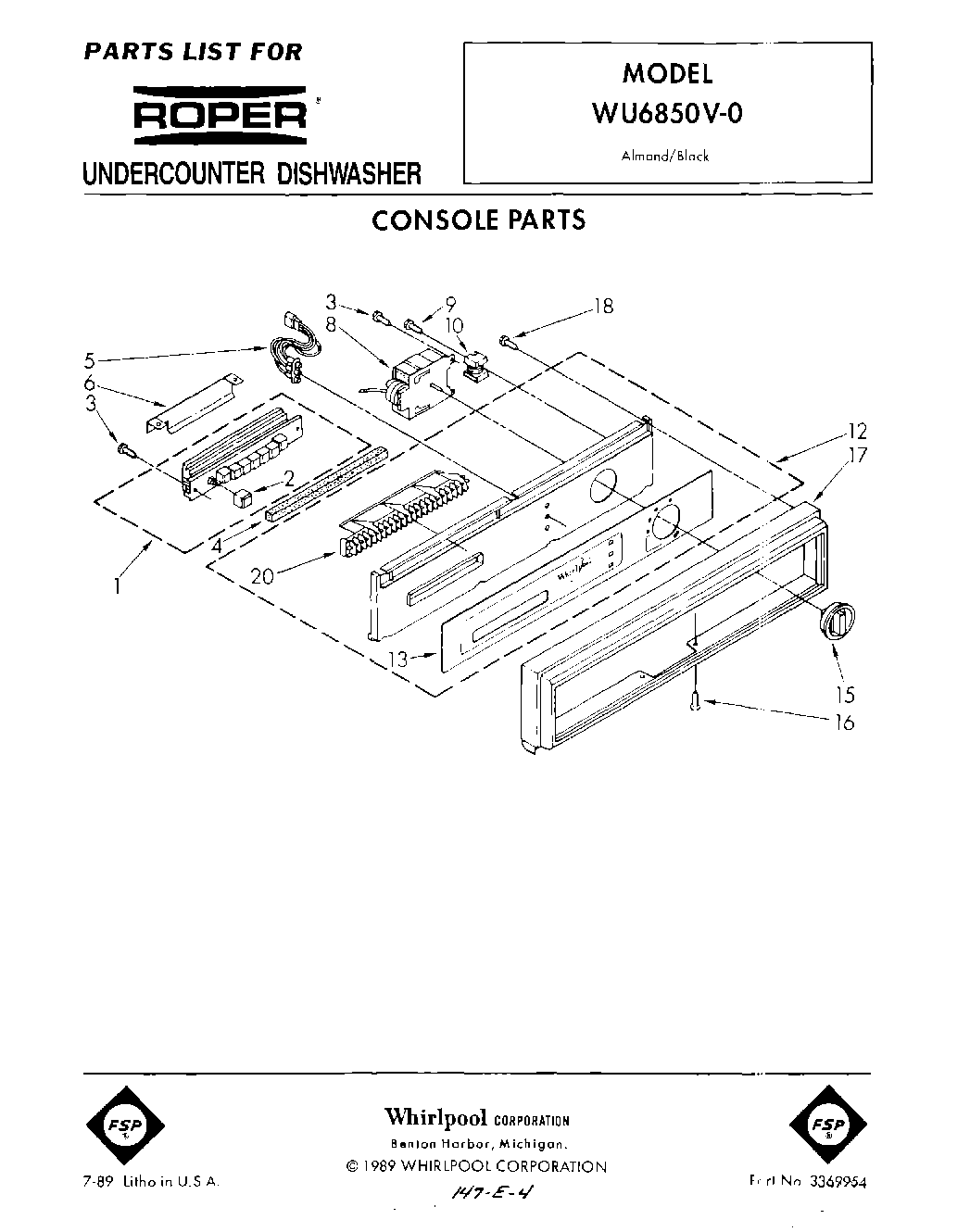

WU6850V0 01 – CONSOLE

WU6850V0 01 – CONSOLE

Written by

in

WU6850V0 01 – CONSOLE

Products

PositionProduct
1Switch, Pushbutton
2Button (6)
3WP304231 Whirlpool Dishwasher Screw
4Foam, Seal
5Light, Indicator (For Electrical Connector Only, See Wiring Harness Page.)
6Shield, Sound
8Timer (For Electrical Connector Only, See Wiring Harness Page.)
9Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10Relay, Start
12Console
13Insert, Decorative
15Knob, Timer
16302251 Whirlpool Dishwasher Screw
17Bezel, Console
18Screw, 6-19 x3/8 Torx Pan Hd (4)
20Grill, Vent
