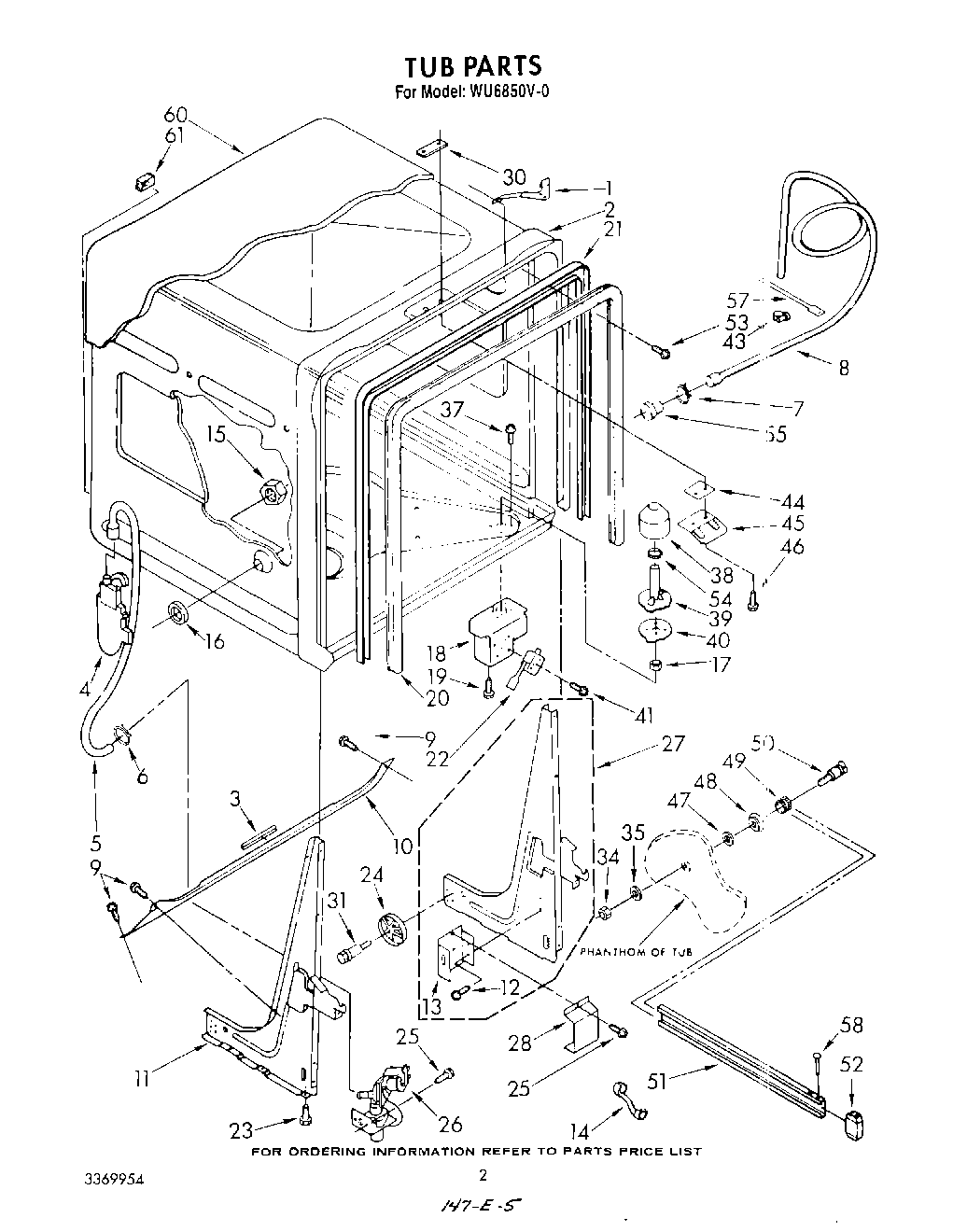

WU6850V0 02 – TUB , LITERATURE AND OPTIONAL

WU6850V0 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

WU6850V0 02 – TUB , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3369954
Instructions, Installation (Supplement) (Locating Your Water Supply)
WPL LIT3369941
WPL LIT3369943
WPL LIT3369949
WPL LIT3369948
1Bracket, Mounting (2)
2tub assembly
3Edge Protector
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8Hose, Drain
9WP302868 Whirlpool Screw
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Box, Terminal
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket
21Retainer, Gasket
22Switch, Pressure
238193716 Whirlpool Leveling Leg
24WP302819 Whirlpool Dishwasher Wheel
25WP90767 Whirlpool Screw
26Valve, Water Inlet
27Leg & Hinge Assembly, R.H.
28300068 Whirlpool Dishwasher Cover Assembly
30Nut, Twin Spring
31Screw, Shoulder
34Nut, Lock
35Washer (8)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
43WP3367052 Whirlpool Hose Clamp
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52End Cap, Track (4)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
55WPL 301656
57WPW10339879 Whirlpool Wire Tie
58WPL 303298
60W11086533 Whirlpool Dishwasher Shield
61WP72107 Whirlpool Touchup
61350956 Whirlpool Spray Assembly
6172017 Whirlpool Appliance Touch-Up Paint White
6172113 Whirlpool Touch-Up Paint
61799344 Whirlpool Refrigerator Paint
6172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
61Almond (Uncut)
61Leveler (Thinner)
61Golden Harvest
61Golden Harvest (Uncut)
61Kit, Epoxy Patch (White)
61Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
61W10840471 Whirlpool Dishwasher Touch Up
61285006 Whirlpool Spray
61350930 Whirlpool White Spray Paint
61350942 Whirlpool Spray Paint
61WPL 72112
61Platinum (Uncut)
61Enamal, Toast (1 Qt. Uncut)
61Paint, Spray (13 Oz.) (Platinum)
61Toast
61Block, Foam (2)
