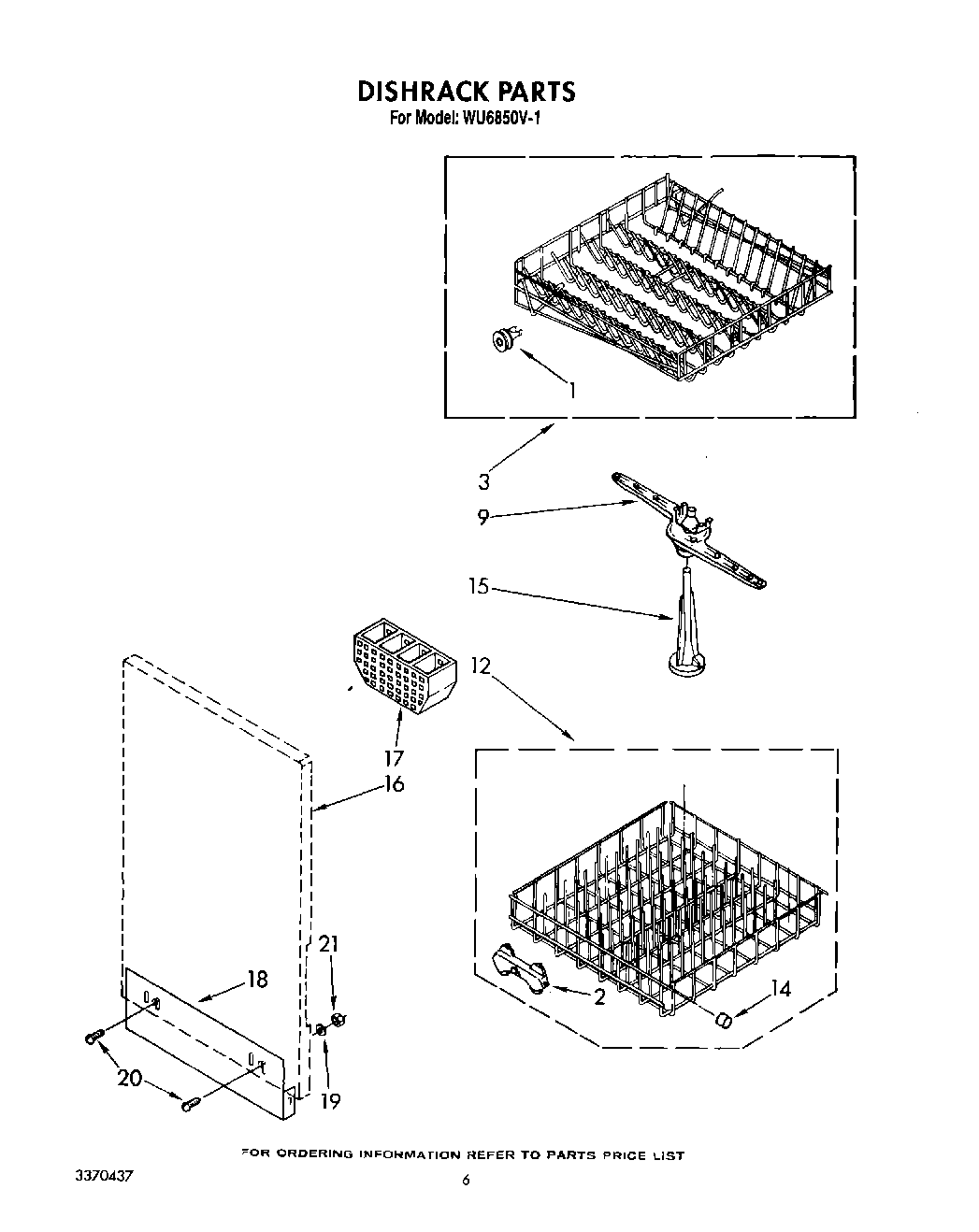

WU6850V1 04 – DISHRACK

Products

Position	Product
1	Wheel & Axle Assembly (4)
2	WP3376961 Whirlpool Dishwasher Wheel
3	W11169039 Whirlpool Dishwasher Dish Rack
9	WP304204 Whirlpool Dishwasher Spray Arm
12	W10311986 Whirlpool Dishwasher Lower Rack
14	Bumper
15	Tower
16	Panel, Reversible Side (White)
16	Panel, Reversible Side (Coffee)
16	Panel, Reversible Side (Toast)
16	Panel, Reversible Side (Platinum)
16	Panel, Reversible Side (Golden Harvest)
16	Panel, Reversible Side (New Avocado)
16	Panel, Reversible Side (Almond)
17	WP8539066 Whirlpool Dishwasher Basket Ware
18	Panel, Lower Side
19	W11089212 Whirlpool Washer
20	Screw, Lower Side Panel Mounting (2)
21	W10080180 Whirlpool Nut
