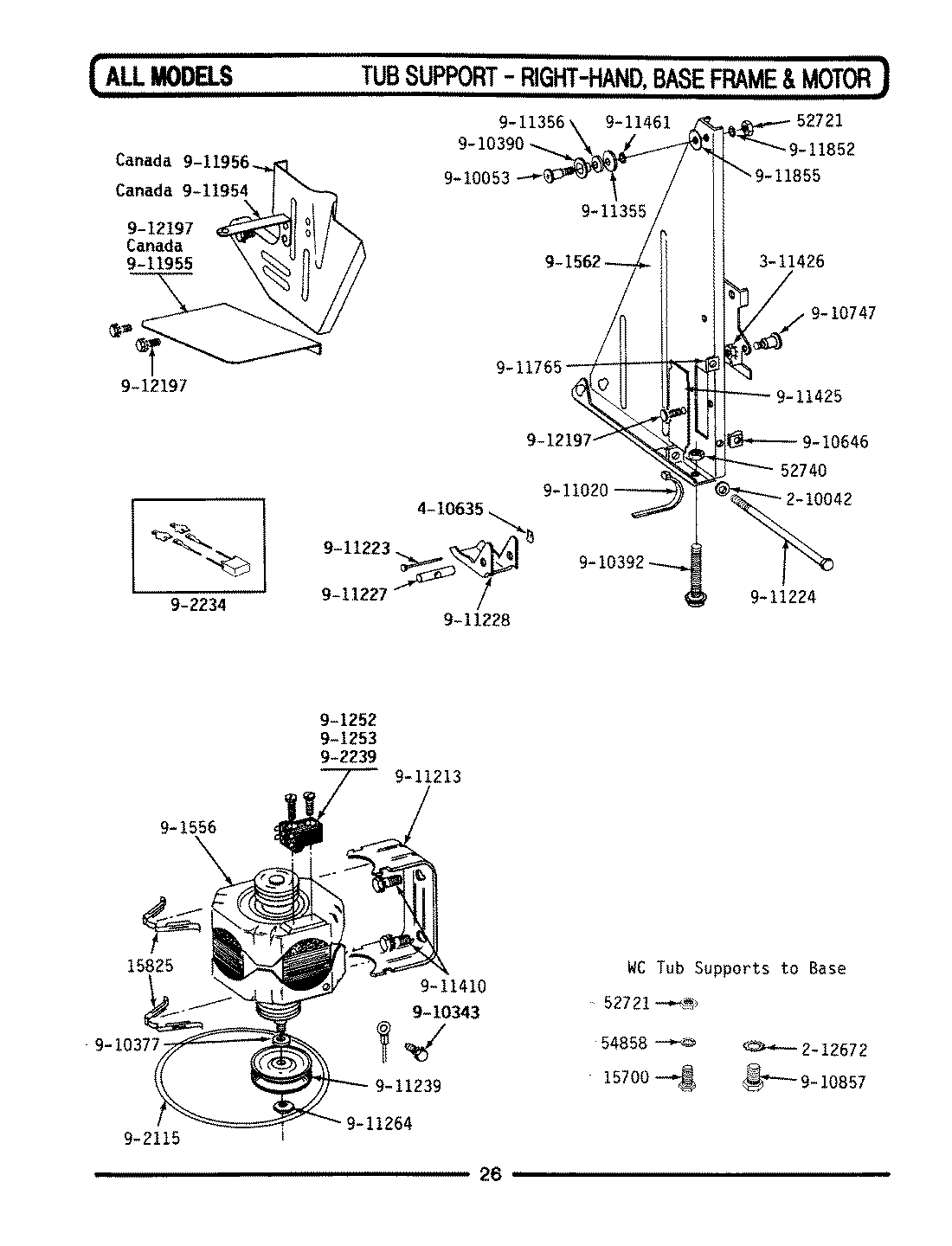

WU902 10 – TUB SUPPORT (RIGHT) BASE FRAME & MOTOR
Written by
in
WU902 10 – TUB SUPPORT (RIGHT) BASE FRAME & MOTOR
Products
Position
Product
1
WPY015825 Whirlpool Motor Clip
2
WP62739 Whirlpool Nut
3
MAY 210042
4
MAY 251193
5
WP3400029 Whirlpool Dishwasher Nut
6
MAY 410635
7
MAY 901252
8
MAY 901253
9
MAY 901523
10
MAY 901556
11
MAY 901562
12
MAY 901829
15
MAY 902002
16
6-9021150 Whirlpool Dishwasher Belt with Lubricant
18
MAY 902239
19
MAY 910053
20
MAY 910343
21
MAY 910377
22
MAY 910390
23
W10176519 Whirlpool Leveling Feet
24
MAY 910646
25
MAY 910747
26
MAY 911020
27
MAY 911213
28
MAY 911223
29
MAY 911224
30
MAY 911227
31
MAY 911228
32
MAY 911231
33
MAY 911239
34
MAY Y911264
35
MAY Y911355
36
MAY 911356
37
MAY 911410
38
MAY 911425
39
MAY 911461
40
MAY 911503
41
MAY 911504
42
MAY 911765
43
MAY 911852
44
MAY 911855
45
MAY 911954
46
MAY 911955
47
MAY 911956
50
MAY 912143
51
WP3390631 Whirlpool Screw
←
