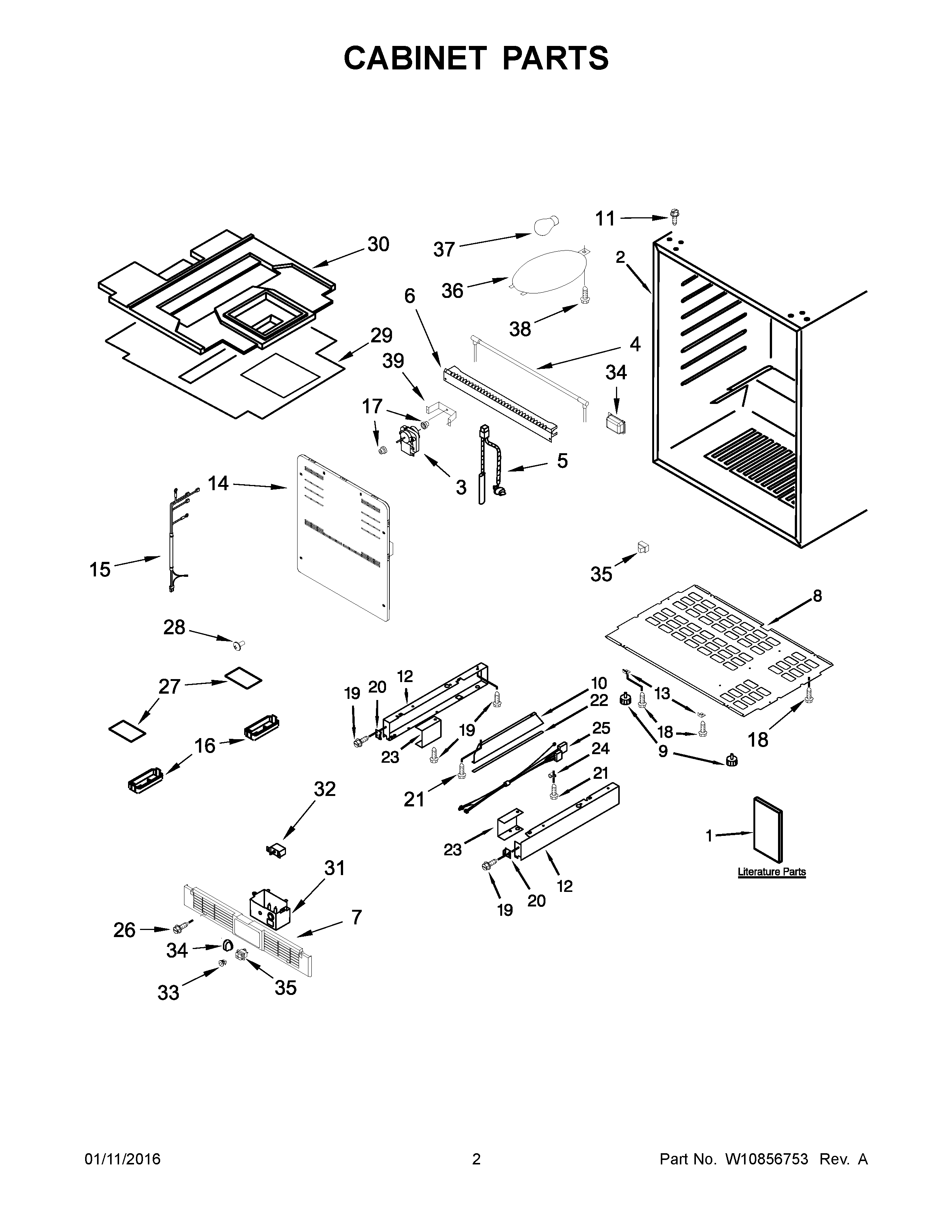

WUB50X24EM00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE & CARE GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	W10922164 Whirlpool Refrigerator Evaporator Motor
4	W11230119 Whirlpool Refrigerator Heater
5	W10244414 Whirlpool Refrigerator Bi-Metal Defrost
6	4344747 Whirlpool Refrigerator Shield
7	Grille
8	W10772863 Whirlpool Refrigerator Cabinet Base
9	W11106296 Whirlpool Refrigerator Leveler
10	Brace, Support
11	W10319189 Whirlpool Refrigerator Screw
12	4344789 Whirlpool Refrigerator Support
12A	4344770 Whirlpool Refrigerator Support
13	4344771 Whirlpool Refrigerator Clip
14	FAN COVER ASSEMBLY
15	WIRING HARNESS ASSEMBLY
16	SENSOR CASE
17	Grommet, Fan Motor
18	4344826 Whirlpool Refrigerator Screw
19	W10780355 Whirlpool Refrigerator Screw
20	Clip, Grille
21	SCREW
22	4344823 Whirlpool Refrigerator Seal
23A	4344821 Whirlpool Refrigerator Support
23	4344820 Whirlpool Refrigerator Support
24	W11456069 Whirlpool Refrigerator Clamp
25	4344857 Whirlpool Refrigerator Wire Harness
26	W10319184 Whirlpool Refrigerator Screw
27	W10204948 Whirlpool Refrigerator Control Box
28	SCREW
29	PLATE COVER
30	SUPPORT, FAN COVER
31	Control Box
32	THERMOSTAT
33	WP4344767 Whirlpool Refrigerator Switch
34	W10319178 Whirlpool Knob
35	4344858 Whirlpool Refrigerator Switch
36	Lens, Light
37	WP22002263 Whirlpool Dryer 10W Light Bulb
38	Screw
39	4344899 Whirlpool Refrigerator Bracket
