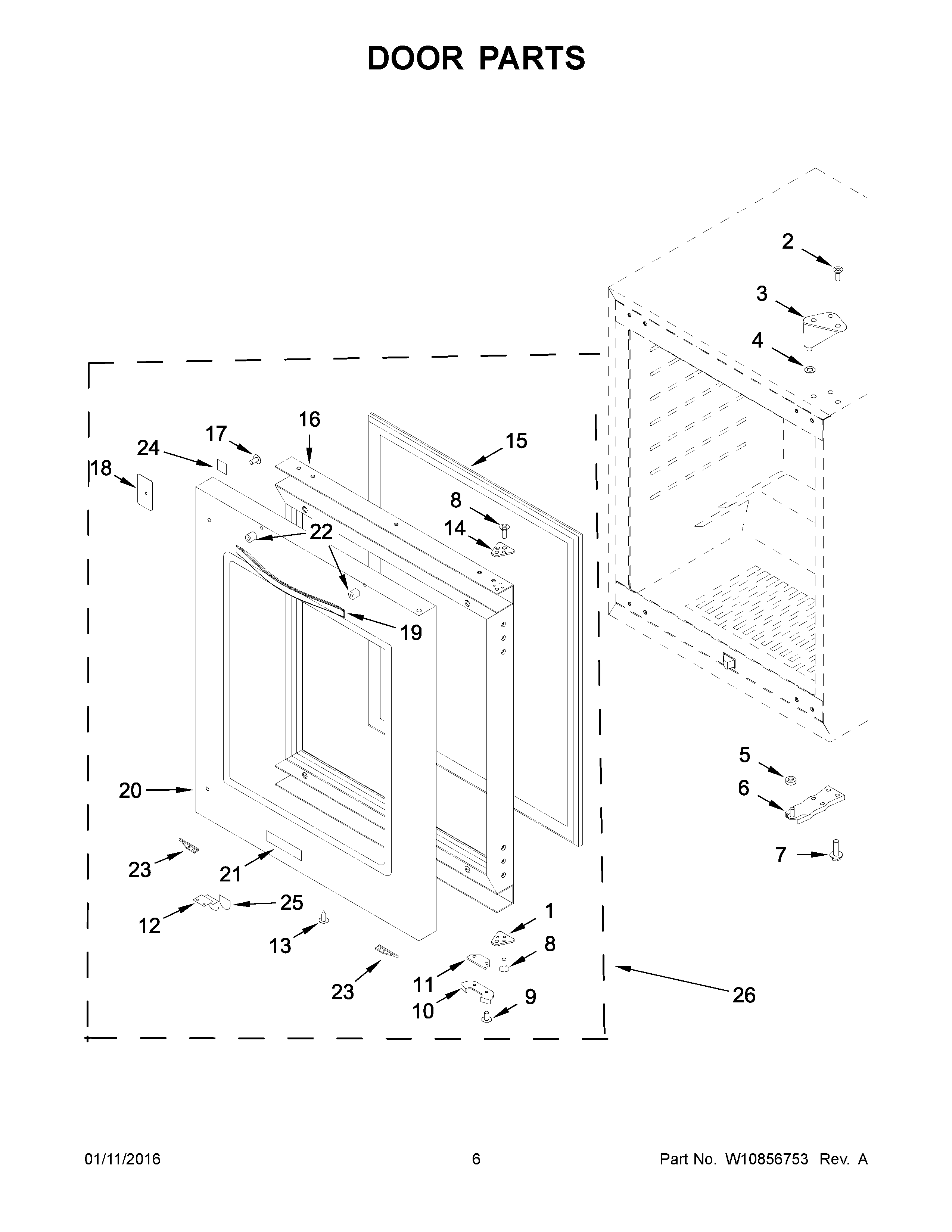

WUB50X24EM00 04 – DOOR PARTS

Products

Position	Product
1	4344756 Whirlpool Refrigerator Spacer
2	4344796 Whirlpool Refrigerator Screw
3	W10319150 Whirlpool Door Hinge
4	4344760 Whirlpool Refrigerator Washer
5	W11241702 Whirlpool Refrigerator Washer
6A	BOTTOM HINGE (RIGHT HAND)
6	HINGE BOTTOM (BLACK DOOR)
7	W10780355 Whirlpool Refrigerator Screw
8	W10243123 Whirlpool Refrigerator Screw
9	4344801 Whirlpool Refrigerator Screw
10	4344758 Whirlpool Refrigerator Bracket
11	4344788 Whirlpool Refrigerator Spacer
12	4344757 Whirlpool Refrigerator Bracket
13	W10837731 Whirlpool Screw Assembly
14	4344755 Whirlpool Refrigerator Spacer
15	WPW10238068 Whirlpool Refrigerator Gasket
16	GLASS DOOR PROCESS
17	SCREW
18	W11263339 Whirlpool Refrigerator Plate
19	HANDLE, DOOR
20	W10856840 Whirlpool Refrigerator Door Skin Assembly
21	WPW10393265 Whirlpool Refrigerator Nameplate
22	W11179356 Whirlpool Refrigerator Stud Handle
23	DOOR CORNER (LEFT HAND)
23A	DOOR CORNER (RIGHT HAND)
24	W10204868 Whirlpool Front Drawer
25	GASKET-PUSH PLATE
26	GLASS DOOR ASSEMBLY
