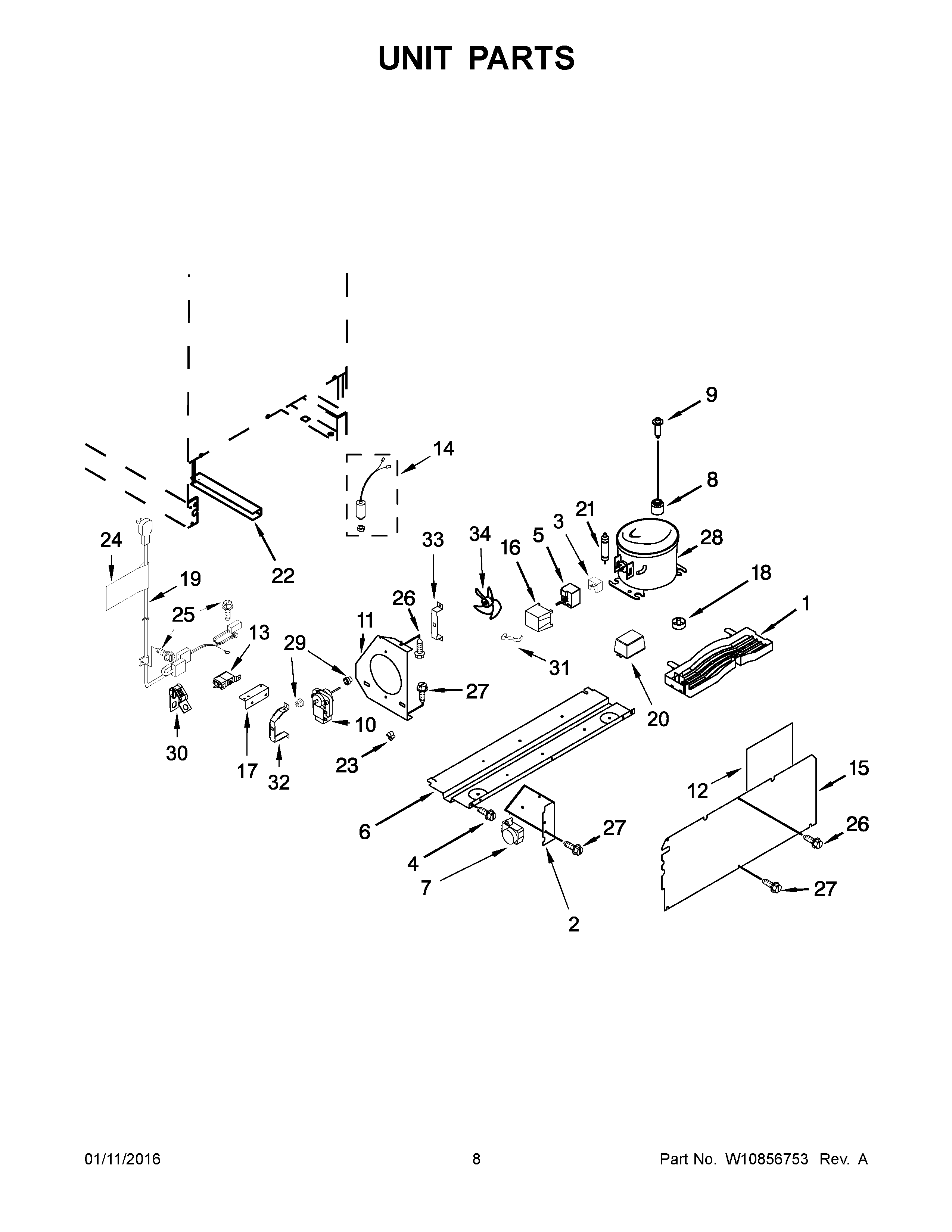

WUB50X24EM00 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11506518 Whirlpool Refrigerator Drip Pan
2	BRACKET, DEFROST TIMER
3	W10780361 Whirlpool Refrigerator Overload Relay
4	4344797 Whirlpool Screw
5	W10287848 Whirlpool Refrigerator Thermistor
6	CABINET BASE PLATE
7	W11609704 Whirlpool Refrigerator Defrost Timer
8	WP4344779 Whirlpool Refrigerator Grommet
9	W10772873 Whirlpool Screw
10	W10922164 Whirlpool Refrigerator Evaporator Motor
11	Baffle, Air
12	INSULATION, REAR COVER
13	W11211930 Whirlpool Refrigerator Thermostat
14	W10772895 Whirlpool Refrigerator Capacitor
15	W10796445 Whirlpool Refrigerator Back Cover
16	COVER, RELAY
17	Bracket, Thermostat
18	W10163276 Whirlpool Refrigerator Trap
19	WPW10204676 Whirlpool Refrigerator Power Cord
20	W10238070 Whirlpool Refrigerator Transformer
21	W10163273 Whirlpool Refrigerator Tube
22	TRIM, EDGE
23	W10238022 Whirlpool Refrigerator Clip
24	4344913 Whirlpool Label Assembly
25	4344826 Whirlpool Refrigerator Screw
26	SCREW
27	W11380570 Whirlpool Microwave Screw
28	COMPRESSOR
29	Grommet, Fan Motor
30	CLAMP, CORD
31	Screw
31	CLIP, RELAY COVER
32	4344784 Whirlpool Bracket
33	4344785 Whirlpool Bracket
34	WPW10299081 Whirlpool Refrigerator Fan Blade
