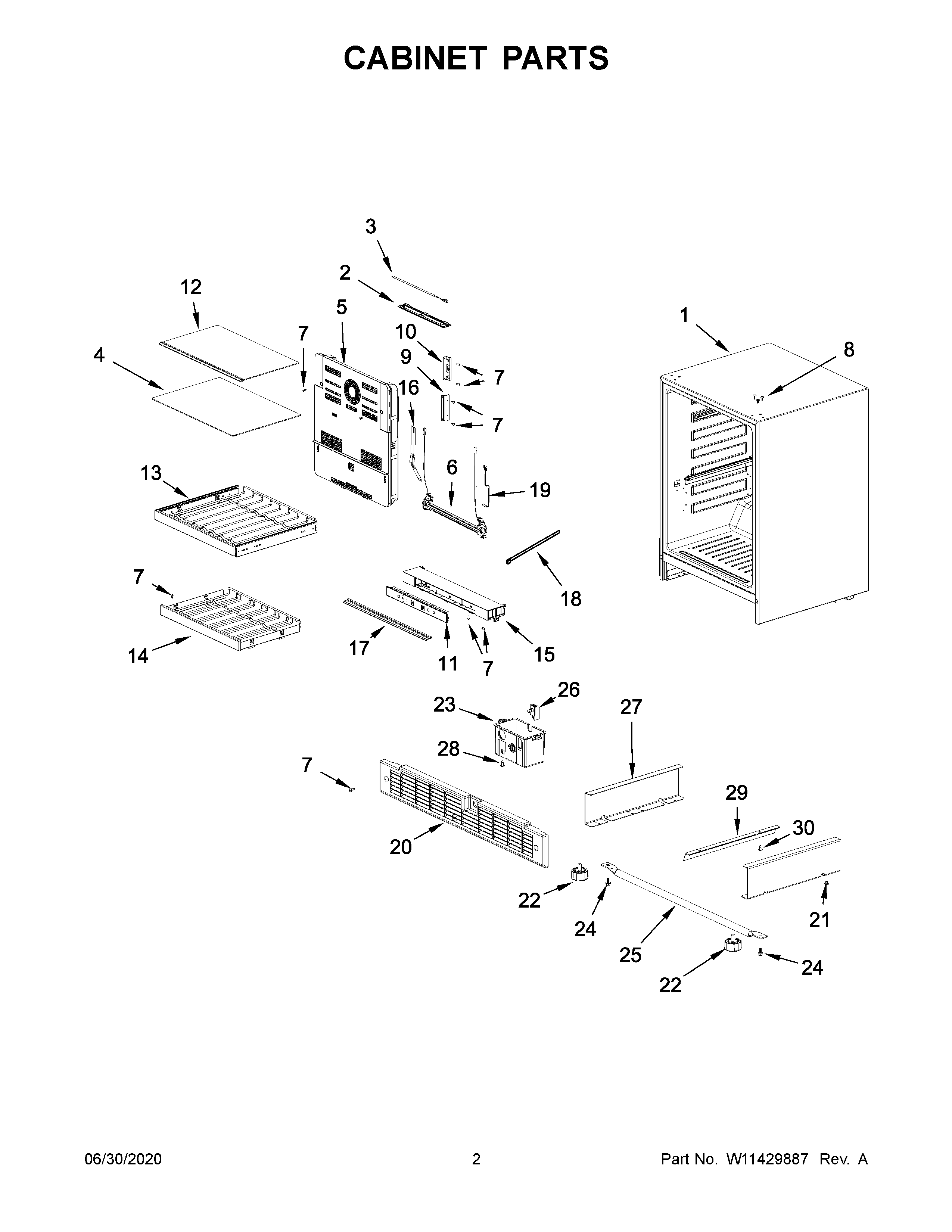

WUB50X24HV00 02 – CABINET PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11312450 Whirlpool Light Lens
3	W11263841 Whirlpool Light Bulb
4	W11311791 Whirlpool Glass Shelf
5	W11312455 Whirlpool Evaporator Cover
6	W11265404 Whirlpool Heater
7	W11675284 Whirlpool Screw
8	4344796 Whirlpool Refrigerator Screw
9	SHELF, SUPPORT
10	SUPPORT
11	W11311792 Whirlpool Control Board
12	W11266373 Whirlpool Glass Shelf
13	WINE RACK
14	WINE RACK, LOWER
15	W11312540 Whirlpool Control Box
16	TEMPERATURE FUSE
17	TRIM, SASH
18	4344829 Whirlpool Tie Wire
19	W11266076 Whirlpool Thermistor
20	W11700300 Whirlpool Refrigerator Grille
21	SCREW
22	W11106296 Whirlpool Refrigerator Leveler
23	W11476540 Whirlpool Cover
24	SCREW
25	BRACE
26	W11266082 Whirlpool Switch Assembly
27	SUPPORT, SIDE
28	W11371097 Whirlpool Screw
29	SEAL, CONDENSER
30	SCREW
