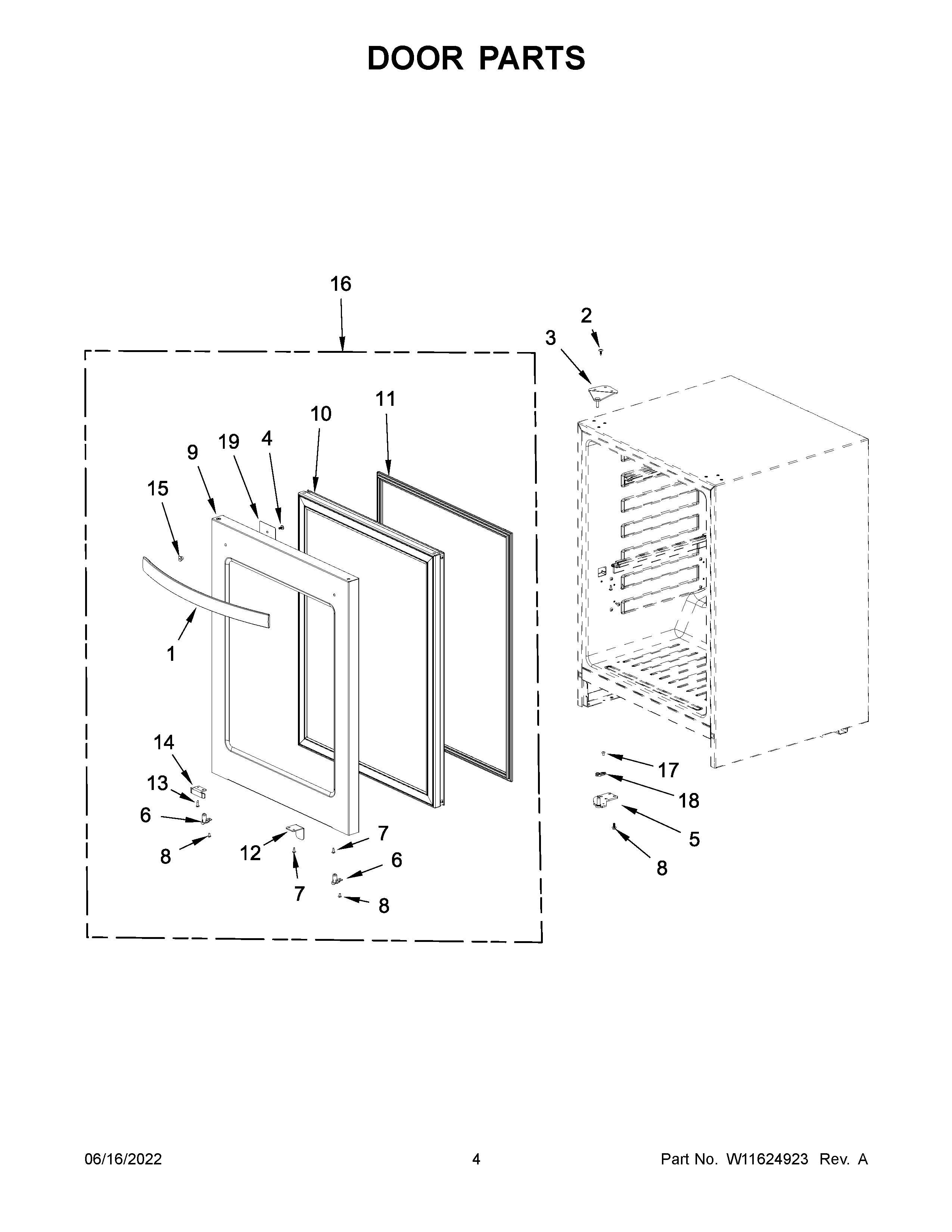

WUB50X24HV02 03 – DOOR PARTS

Products

Position	Product
1	W11685317 Whirlpool Handle Assembly
2	4344796 Whirlpool Refrigerator Screw
3	W11264668 Whirlpool Door Hinge
4	SCREW
5	W11312624 Whirlpool Door Hinge Assembly
6	W11266079 Whirlpool Closer Assembly
7	W11371097 Whirlpool Screw
8	SCREW
9	WRAP, DOOR (BLACK STAINLESS)
10	FOAM, DOOR
11	W11315259 Whirlpool Door Gasket
12	W11264669 Whirlpool Bracket
13	SCREW
14	STOPPER, DOOR
15	W11179356 Whirlpool Refrigerator Stud Handle
16	W11476529 Whirlpool Door Assembly
17	W10243123 Whirlpool Refrigerator Screw
18	W11265406 Whirlpool Washer
19	W11263339 Whirlpool Refrigerator Plate
