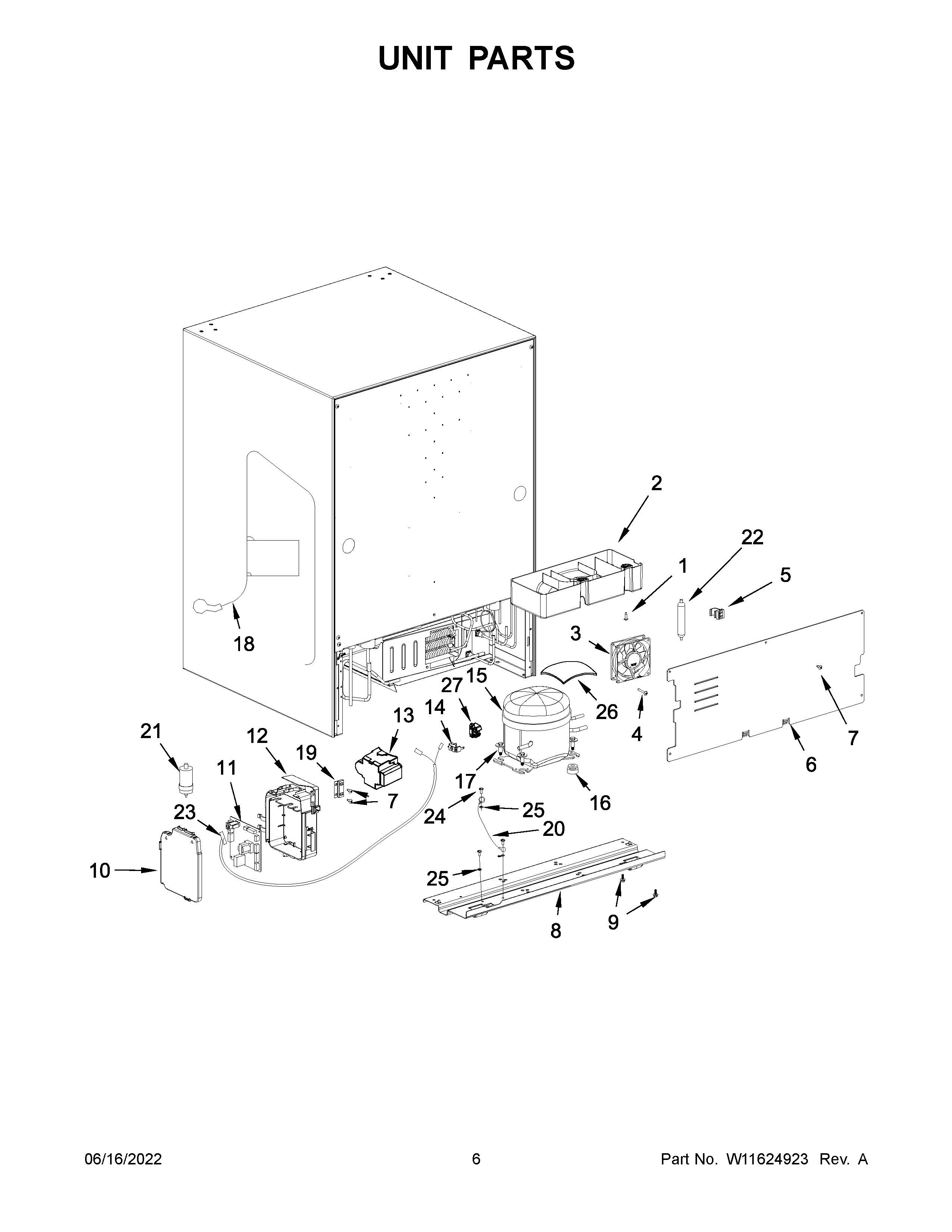

WUB50X24HV02 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	SCREW
2	PAN, WATER
3	W11266081 Whirlpool Refrigerator Evaporator Motor
4	SCREW
5	CLAMP
6	COVER, REAR
7	W11371097 Whirlpool Screw
8	PLATE, BASE
9	SCREW
10	W11313206 Whirlpool Refrigerator Cover
11	W11629251 Whirlpool Electronic Control Board + Core
12	PCB BOX
13	COVER
14	PROTECTOR, MOTOR
15	COMPRESSOR
16	WP4344779 Whirlpool Refrigerator Grommet
17	W10772873 Whirlpool Screw
18	W11618463 Whirlpool Power Cord
19	CLAMP, CORD
20	WIRE
21	CAPACITOR
22	W11109499 Whirlpool Refrigerator Tube
23	HARNESS, WIRE
24	4344797 Whirlpool Screw
25	WASHER
26	COMPRESSOR, RUBBER
27	WP2262181 Whirlpool Refrigerator Start Relay
