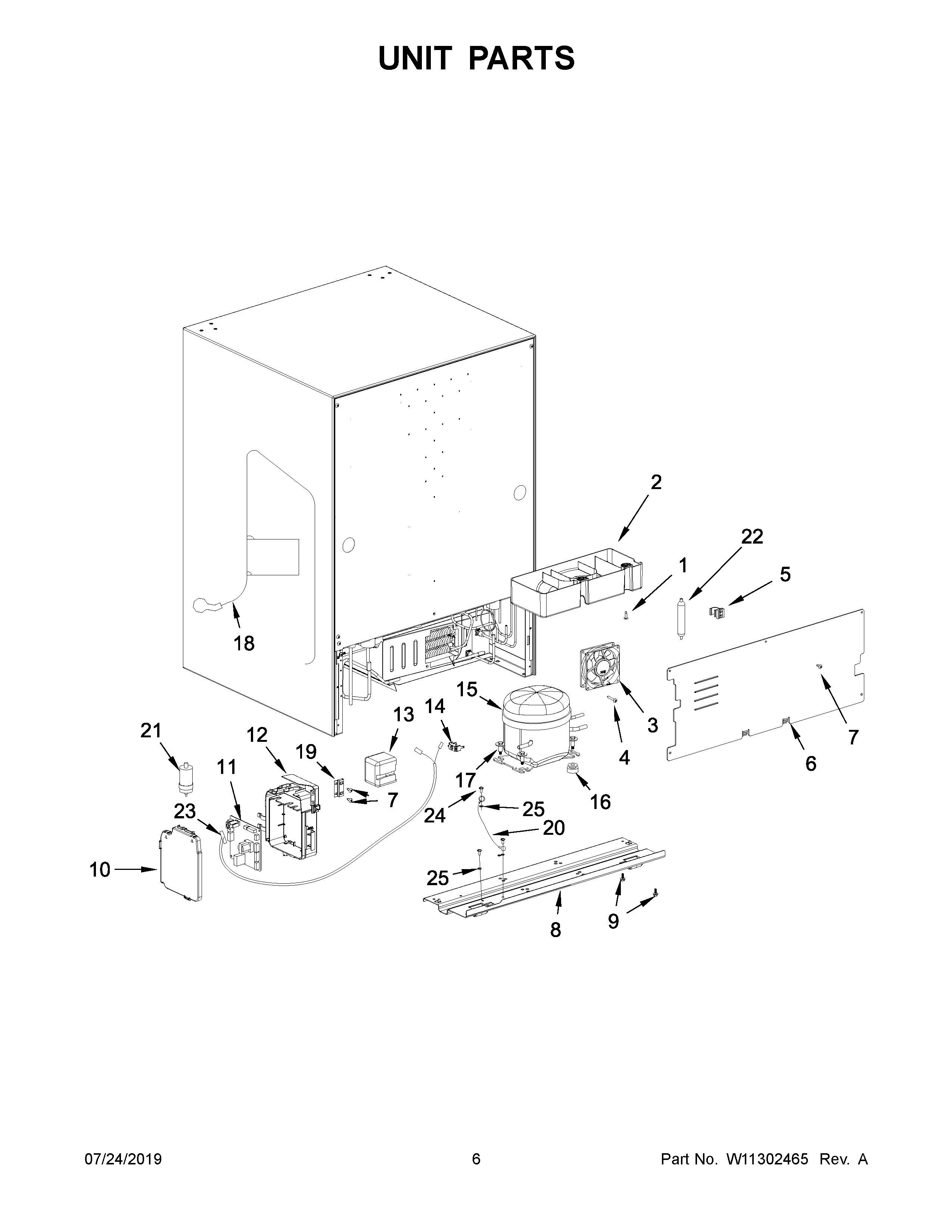

WUB50X24HZ00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	SCREW
2	PAN, DRAIN
3	W11266081 Whirlpool Refrigerator Evaporator Motor
4	SCREW
5	CLAMP
6	COVER, REAR
7	W11371097 Whirlpool Screw
8	PLATE, BASE
9	SCREW
10	W11313206 Whirlpool Refrigerator Cover
11	W11372322-includeCORE Whirlpool W11372322 Refrigerator Electronic Control Board + Core
12	PCB BOX
13	COVER, RELAY
14	W10780361 Whirlpool Refrigerator Overload Relay
15	COMPRESSOR
16	WP4344779 Whirlpool Refrigerator Grommet
17	W10772873 Whirlpool Screw
18	W11265410 Whirlpool Power Cord
19	CLAMP, CORD
20	WIRE
21	W10772895 Whirlpool Refrigerator Capacitor
22	W10163273 Whirlpool Refrigerator Tube
23	HARNESS, WIRE
24	4344797 Whirlpool Screw
25	WASHER
