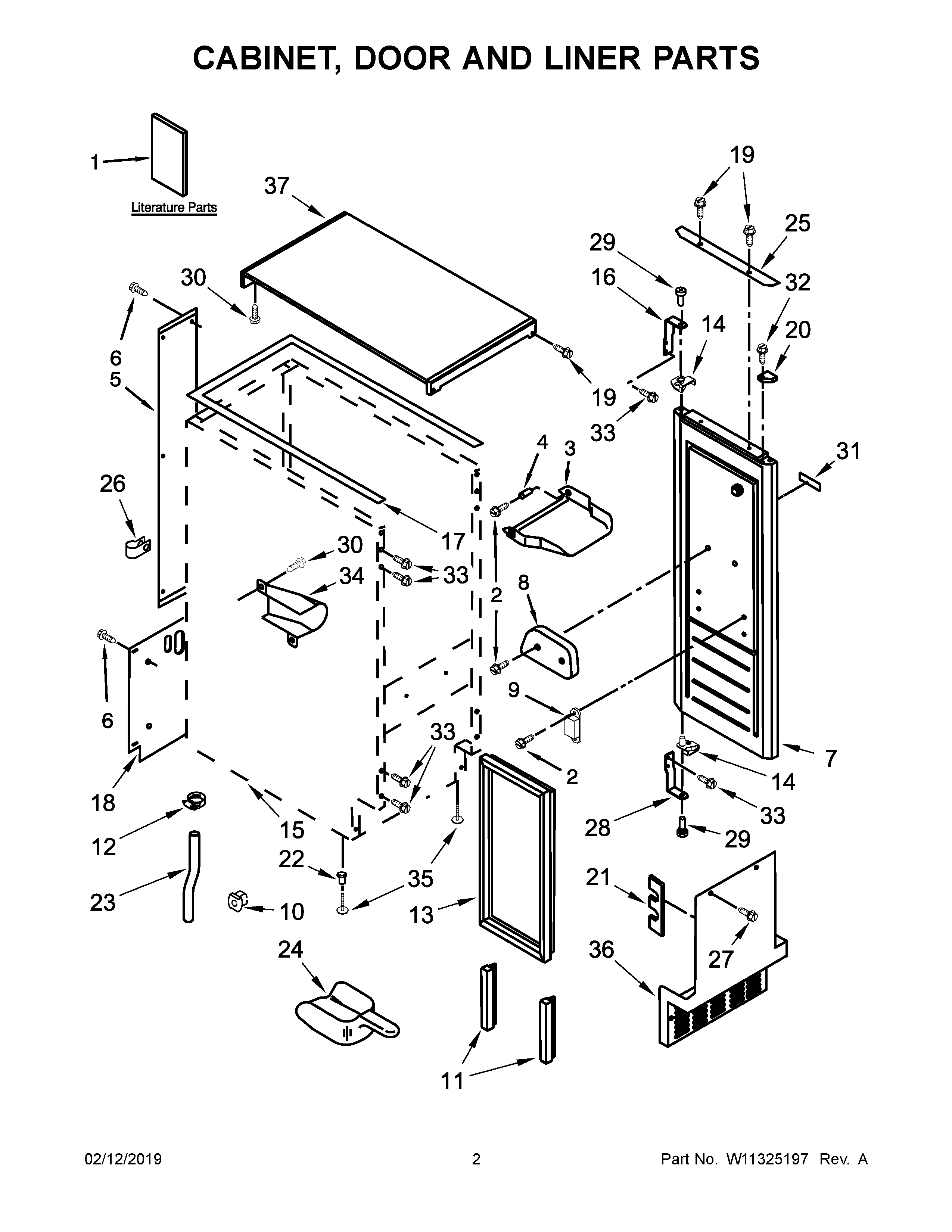

WUI75X15HB00 02 – CABINET, DOOR AND LINER PARTS

WUI75X15HB00 02 – CABINET, DOOR AND LINER PARTS

Written by

in

WUI75X15HB00 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1A	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1B	TECH SHEET
2	WP3400886 Whirlpool Refrigerator Screw
3	W10734102 Whirlpool Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7A	W10502166Q Whirlpool Refrigerator Door FIP
7B	W11346790 Whirlpool Refrigerator Door Assembly
7	W10512905Q Whirlpool FIP Door
8	W10486874 Whirlpool Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	W10136999 Whirlpool Refrigerator Nut
11	GASKET, BOTTOM
12	W10670799 Whirlpool Refrigerator Clamp
13	WP2217294 Whirlpool Refrigerator Door Gasket
14C	W10486561 Whirlpool Refrigerator Door Stop
14B	W10486559 Whirlpool Refrigerator Door Stop
14A	W10486558 Whirlpool Door Stop
14	W10486560 Whirlpool Door Stop
15	CABINET (NOT A SERVICEABLE PART)
16	W10476704 Whirlpool Hinge
16A	W10476703 Whirlpool Refrigerator Hinge
17	W11624957 Whirlpool Refrigerator Top Gasket
18	W11367893 Whirlpool Refrigerator Cover Assembly
19	8534077 Whirlpool Screw
19A	8534075 Whirlpool Screw
20A	FILLER, TOP ENDCAP (WHITE)
20C	W10501849 Whirlpool Floor Endcap
20	SCREW (BLACK)
20B	W10501833 Whirlpool Floor Endcap
21	W10532250 Whirlpool Refrigerator Foam Pad
22	3400240 Whirlpool Refrigerator Nut
23	W10737551 Whirlpool Refrigerator Drain Tube
24	W11420408 Whirlpool Refrigerator Ice Scoop
25	WP2208493W Whirlpool Refrigerator Handle
25A	WP2208493B Whirlpool Refrigerator Handle
26	WP488366 Whirlpool Refrigerator Clamp
27A	W10531302 Whirlpool Refrigerator Screw
27	W11447718 Whirlpool Refrigerator Screw
28	W10476697 Whirlpool Hinge
28A	W10476696 Whirlpool Refrigerator Hinge
29	2185712 Whirlpool Refrigerator Hinge Pin
30	WP250830 Whirlpool Refrigerator Screw
31	W11178521 Whirlpool Dishwasher Nameplate
32	NAMEPLATE
33A	W10495264 Whirlpool Refrigerator Screw
33	W11661566 Whirlpool Screw
34	2185927 Whirlpool Refrigerator Holder
35	8193716 Whirlpool Leveling Leg
36A	WP2185571B Whirlpool Refrigerator Grille
36	WP2185571W Whirlpool Refrigerator Grille
37	W10512750 Whirlpool Refrigerator Top Cabinet
37A	W10320117 Whirlpool Refrigerator Top Cabinet
