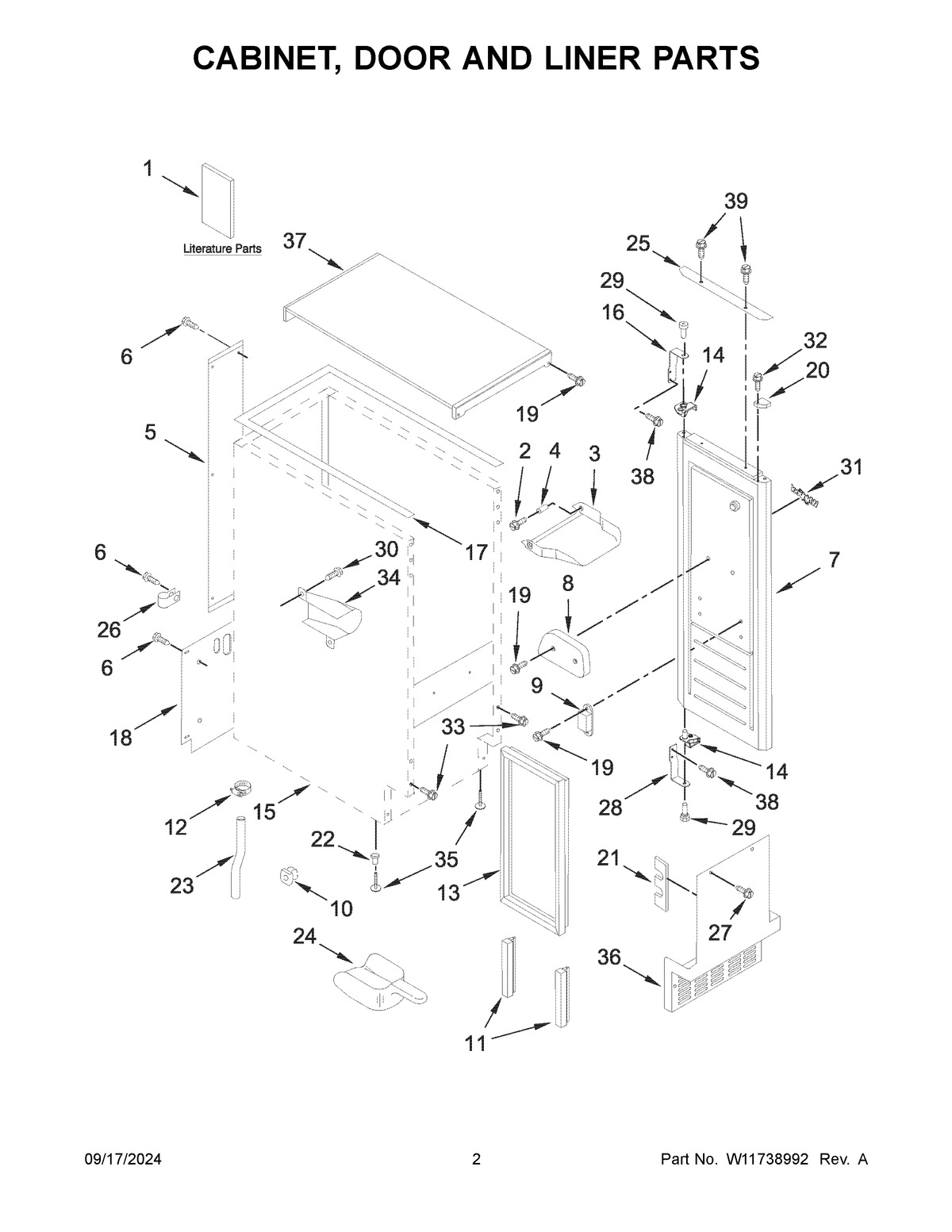

WUI75X15HB02 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1	OWNERS MANUAL
1A	TECH SHEET
2	WP3400886 Whirlpool Refrigerator Screw
3	W10734102 Whirlpool Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	W10502166Q Whirlpool Refrigerator Door FIP
8	W11309649 Whirlpool Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	W10136999 Whirlpool Refrigerator Nut
11	GASKET, BOTTOM
12	W10670799 Whirlpool Refrigerator Clamp
13	WP2217294 Whirlpool Refrigerator Door Gasket
14	W10486559 Whirlpool Refrigerator Door Stop
14	W10486561 Whirlpool Refrigerator Door Stop
15	CABINET AND LINER (NOT SERVICED)
16	W10476703 Whirlpool Refrigerator Hinge
17	W11624957 Whirlpool Refrigerator Top Gasket
18	W11367893 Whirlpool Refrigerator Cover Assembly
19	8534077 Whirlpool Screw
20	FILLER, TOP ENDCAP (BLACK)
20A	FILLER, BOTTOM ENDCAP (BLACK)
21	W10532250 Whirlpool Refrigerator Foam Pad
22	3400240 Whirlpool Refrigerator Nut
23	W10737551 Whirlpool Refrigerator Drain Tube
24	W11420408 Whirlpool Refrigerator Ice Scoop
25	WP2208493B Whirlpool Refrigerator Handle
26	WP488366 Whirlpool Refrigerator Clamp
27	W10531302 Whirlpool Refrigerator Screw
28	W10476696 Whirlpool Refrigerator Hinge
29	2185712 Whirlpool Refrigerator Hinge Pin
30	WP489443 Whirlpool Refrigerator Screw
31	W11178521 Whirlpool Dishwasher Nameplate
32	NAMEPLATE
33	W11573574 Whirlpool Screw
34	2185927 Whirlpool Refrigerator Holder
35	8193716 Whirlpool Leveling Leg
36	WP2185571B Whirlpool Refrigerator Grille
37	W10320117 Whirlpool Refrigerator Top Cabinet
38	W10495264 Whirlpool Refrigerator Screw
39	8534075 Whirlpool Screw
